Ahuja SSA-10000 1000W Amplifier: Features & Buying Guide

Ahuja SSA-10000 1000W High Wattage PA Mixer Amplifier: Features, Specifications & Buying Guide

Choosing a high-power PA amplifier is not simply about selecting the highest wattage on the specification sheet. The amplifier has to match the speaker system, installation type, number of input sources, power requirements and the way the sound system will be used.

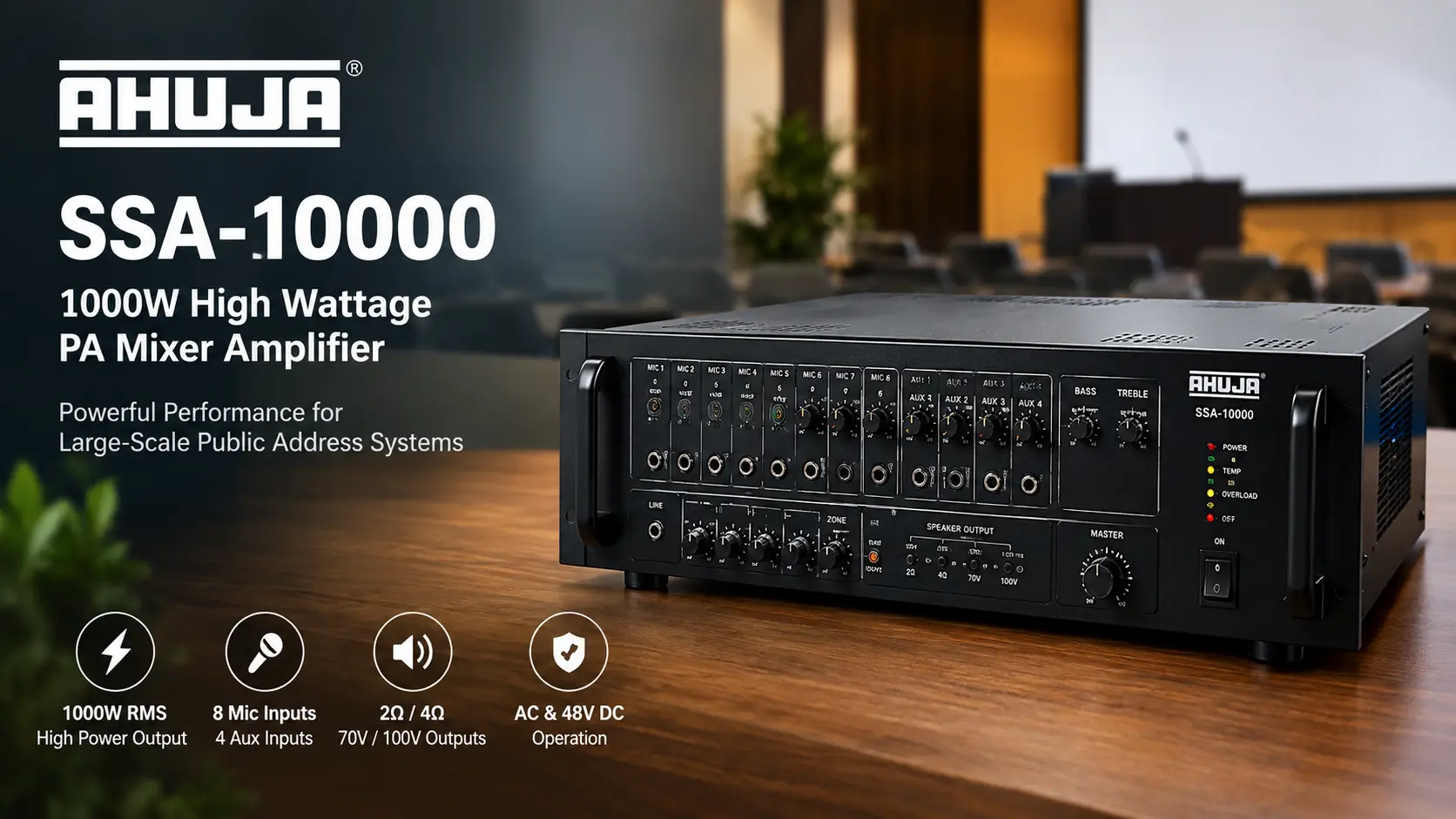

The Ahuja SSA-10000 1000W High Wattage PA Mixer Amplifier is designed for high-power public-address applications where multiple microphones and auxiliary audio sources need to be connected to a single amplifier. Ahuja specifies 1000W RMS output at 10% THD, along with 8 microphone inputs, 4 auxiliary inputs and speaker outputs for 2Ω, 4Ω, 70V and 100V systems.

For buyers searching for Buy ahuja amplifier SSA-10000 - Elactree, the important question is whether the SSA-10000 matches the actual requirements of the PA installation rather than simply whether a 1000W amplifier is required.

Quick Answer: Is the Ahuja SSA-10000 suitable for high-power PA systems?

Yes. The Ahuja SSA-10000 is a 1000W high-wattage PA mixer amplifier intended for applications requiring substantial audio output and multiple input connections. It supports both conventional low-impedance speaker connections and 70V/100V PA speaker systems.

The model provides 8 microphone inputs, 4 auxiliary inputs and 1 line input, making it suitable for installations where several microphones and audio sources need to be managed from the amplifier. It also supports AC operation and 48V DC operation using four 12V car batteries.

The SSA-10000 is particularly relevant for large PA installations, but the correct speaker load and wiring configuration should be confirmed before installation.

Ahuja SSA-10000 at a Glance

Specifications are based on Ahuja's published product information and should be checked against the exact unit supplied before installation.

What Is the Ahuja SSA-10000?

The Ahuja SSA-10000 is a high-wattage PA mixer amplifier that combines audio mixing inputs and power amplification in one unit.

A PA mixer amplifier receives signals from sources such as microphones and auxiliary audio devices, allows those signals to be controlled, and sends amplified audio to connected speakers. The SSA-10000 is designed around this configuration and includes multiple microphone and auxiliary inputs.

Unlike a basic power amplifier that primarily amplifies an incoming signal, the SSA-10000 can accept several input sources directly. It also provides preamplifier and line outputs for connecting additional equipment or for recording applications.

How Does the Ahuja SSA-10000 Work?

The operating concept is straightforward:

1. Connect audio sources such as microphones or compatible auxiliary devices to the available inputs.
2. Adjust the input and tone controls according to the application.
3. Connect the appropriate speaker system using the supported output configuration.
4. Set the required output level while keeping the connected speaker load within the appropriate specification.
5. For larger installations, the amplifier can also be integrated with additional amplification equipment through its available outputs.

The SSA-10000 provides speaker outputs for 2Ω, 4Ω, 70V and 100V systems, allowing it to be used with different PA installation configurations. The correct output should be selected according to the speaker system and installation design.

What Are the Main Features of the Ahuja SSA-10000?

1. 1000W RMS High-Power Output

The SSA-10000 is specified at 1000W RMS at 10% THD, with additional published output ratings of 850W RMS at 5% THD and 800W RMS at 2% THD. The maximum output rating is 1350W.

When comparing amplifiers, buyers should pay attention to the measurement conditions rather than comparing maximum wattage figures alone.

2. Eight Microphone Inputs

The amplifier has 8 microphone inputs, which is useful when several microphones are required for announcements, speeches, programmes or other PA applications.

This input capacity can be particularly useful in installations where multiple microphones need to remain connected rather than being swapped during use.

3. Four Auxiliary Inputs

The SSA-10000 provides 4 auxiliary inputs. Ahuja specifically identifies the fourth auxiliary input as an RCA input intended for connecting devices such as CD/DVD players.

For modern installations, buyers should check the connector requirements of their actual source equipment and use suitable compatible connections where necessary.

4. 70V and 100V PA Outputs

One of the important characteristics of the SSA-10000 is its support for 70V and 100V speaker outputs, alongside 2Ω and 4Ω outputs.

70V and 100V systems are commonly used in distributed PA installations because they can accommodate multiple speakers connected across a larger area. The actual speaker count and tap settings depend on the speaker system and installation design.

5. Preamp and Line Outputs

The amplifier includes preamplifier and line outputs. Ahuja states that these can be used for connecting to a booster amplifier and for recording applications.

This provides an option for integrating the SSA-10000 into a larger audio setup rather than treating it as an isolated amplifier.

6. AC and 48V DC Operation

The SSA-10000 supports 220–240V AC, 50/60Hz operation and 48V DC operation using four 12V car batteries. Ahuja also specifies instant transfer to DC power if AC power fails.

This feature can be relevant for installations where continuity of announcements or PA operation is important.

7. Protection Features

Ahuja specifies a resettable circuit breaker and MCB at the rear for protection against overload and short circuit conditions.

These features are useful, but they do not replace correct speaker impedance, wiring, ventilation and installation practices.

Where Can the Ahuja SSA-10000 Be Used?

The appropriate application depends on the connected speaker system and required output level. Typical use cases for a high-wattage PA mixer amplifier can include:

• Large public-address installations
• Community halls
• Institutional PA systems
• Large halls and event spaces
• Announcement systems
• Distributed 70V/100V speaker installations
• Large commercial or industrial premises
• Systems requiring multiple microphone inputs

The amplifier's 70V and 100V outputs make it particularly relevant when a distributed speaker system is part of the installation. However, the amplifier should be selected together with the speakers, speaker transformer taps and overall load—not independently.

Ahuja SSA-10000 vs Ahuja SSA-7000

Buyers comparing the Ahuja SSA-10000 and SSA-7000 should first look at the output requirement and number of inputs.

Ahuja's published specifications show that the SSA-10000 provides higher rated output and one additional microphone and auxiliary input compared with the SSA-7000. Both models support 2Ω, 4Ω, 70V and 100V speaker outputs.

Which model should you consider?

The SSA-10000 is relevant when the installation requires up to its specified high-power output and additional input capacity.

The SSA-7000 may be considered when a 700W-rated PA mixer amplifier is sufficient for the planned speaker load. Selecting the higher-wattage model simply because it has a larger number on the specification sheet is not a substitute for calculating the actual system requirement.

What Should Buyers Check Before Buying the Ahuja SSA-10000?

Before placing an order, check these points with the supplier or system integrator.

1. Speaker Power Requirement

Do not calculate amplifier selection from room size alone. The speaker type, quantity, impedance or transformer tap and intended operating level all affect the required amplifier capacity.

For a 70V/100V installation, calculate the combined speaker tap load and allow appropriate system margin according to the installation design.

2. Speaker Output Configuration

Confirm whether your installation uses:

• 2Ω speakers
• 4Ω speakers
• 70V PA speakers
• 100V PA speakers

The SSA-10000 supports all four output categories, but they should not be treated as interchangeable connections.

3. Number of Microphones

If the system needs several wired microphones, the SSA-10000's eight microphone inputs may be useful. Count the actual sources you expect to connect rather than buying based solely on the maximum number of inputs.

4. Auxiliary Sources

List the audio sources that will be connected, such as media players or other line-level equipment. Check connector types before installation, particularly if older RCA-based equipment is involved.

5. Power Backup Requirement

If uninterrupted PA operation is important, verify whether the 48V DC battery arrangement is appropriate for the installation. Ahuja specifies DC operation using four 12V car batteries and automatic transfer to DC power if AC power fails.

6. Installation Space and Weight

The SSA-10000 measures 540 × 185 × 510mm and weighs 42kg according to Ahuja's published specifications.

That makes cabinet, rack, mounting and access planning important. The installation should also provide appropriate ventilation and service access.

7. Warranty and Service

Before purchasing, confirm:

• Warranty terms
• Warranty duration
• Service process
• Availability of replacement parts
• Installation support, if required
• Supplier's after-sales assistance

Warranty and service terms can vary by seller and transaction, so buyers should confirm the terms applicable to their purchase.

How Much Does the Ahuja SSA-10000 Cost in India?

The Ahuja SSA-10000 price in India can vary by supplier, quotation, taxes, shipping, installation requirements and purchase quantity. An exact price should therefore be checked against the current supplier quotation rather than relying on an outdated article or listing.

For institutional or commercial projects, the final quotation may also depend on related equipment such as speakers, microphones, cables, racks, installation and system configuration.

When comparing quotations, check whether each supplier is quoting only the amplifier or a complete PA solution.

Is the Ahuja SSA-10000 a Mixer or an Amplifier?

The Ahuja SSA-10000 is a PA mixer amplifier, meaning it combines multiple audio inputs with power amplification in one unit.

It should not be confused with a standalone power amplifier. A standalone amplifier generally receives an already-mixed signal, while a PA mixer amplifier such as the SSA-10000 provides multiple microphone and auxiliary inputs before sending the amplified signal to the speaker system.

What Are the Advantages and Limitations of the SSA-10000?

Advantages

• 1000W RMS high-wattage output specification
• Eight microphone inputs
• Four auxiliary inputs
• 2Ω and 4Ω speaker outputs
• 70V and 100V PA outputs
• AC and 48V DC operation
• Preamp and line outputs
• Rear protection through circuit breaker and MCB
• Can be integrated with additional amplification equipment

Limitations to Consider

• At 42kg, the amplifier is not a lightweight portable unit.
• Its 1000W capacity may be unnecessary for smaller PA systems.
• Proper speaker-load calculation is required before installation.
• Buyers need to verify the current price, warranty and service terms with the supplier.
• The amplifier's capabilities depend on correct speaker matching and system configuration.

Buying Checklist for the Ahuja SSA-10000

Before you Buy ahuja amplifier SSA-10000 - Elactree, confirm the following:

1. What is the total speaker load?
2. Are the speakers 2Ω, 4Ω, 70V or 100V?
3. How many microphones will be connected?
4. How many auxiliary sources are required?
5. Is AC operation sufficient, or is DC backup required?
6. Where will the 42kg amplifier be installed?
7. Is adequate ventilation available?
8. Does the quotation include installation?
9. What warranty applies to the supplied unit?
10. What technical support is available after installation?
11. Is the quoted unit the exact SSA-10000 model?
12. Are the specifications on the quotation consistent with the manufacturer's current documentation?

Final Verdict

The Ahuja SSA-10000 1000W High Wattage PA Mixer Amplifier is designed for high-power PA systems that need substantial amplification, multiple microphone and auxiliary inputs, and support for both low-impedance and 70V/100V speaker configurations. Ahuja's current published specifications list 1000W RMS output at 10% THD, eight microphone inputs, four auxiliary inputs and 48V DC operation.

For a large distributed PA installation, the key decision is not simply whether the amplifier is rated at 1000W. The speaker load, output configuration, installation environment, backup-power requirement, warranty and after-sales support should all be checked before purchase.

For buyers comparing Ahuja amplifiers in India, the SSA-10000 makes the most sense when the project genuinely requires its high output and input capacity. For smaller installations, a lower-powered model may be more appropriate.

Frequently Asked Questions

1. What is the Ahuja SSA-10000?

The Ahuja SSA-10000 is a 1000W high-wattage PA mixer amplifier designed for high-power public-address applications. It has multiple microphone and auxiliary inputs and supports 2Ω, 4Ω, 70V and 100V speaker outputs.

2. What is the RMS power of the Ahuja SSA-10000?

Ahuja specifies 1000W RMS at 10% THD, 850W RMS at 5% THD and 800W RMS at 2% THD. Its maximum output specification is 1350W.

3. How many microphone inputs does the SSA-10000 have?

The SSA-10000 has 8 microphone inputs. It also provides four auxiliary inputs and one line input.

4. Does the Ahuja SSA-10000 support 100V speakers?

Yes. The SSA-10000 provides 100V and 70V speaker outputs, as well as 2Ω and 4Ω outputs.

5. Does the SSA-10000 work on battery backup?

Yes. Ahuja specifies 48V DC operation using four 12V car batteries and states that the amplifier can transfer to DC operation if AC power fails.

6. What is the difference between SSA-10000 and SSA-7000?

The SSA-10000 is rated at 1000W RMS at 10% THD, while the SSA-7000 is rated at 700W RMS at the same stated distortion level. The SSA-10000 also has eight microphone inputs and four auxiliary inputs compared with seven microphone and three auxiliary inputs on the SSA-7000.

7. Is the SSA-10000 suitable for a 70V or 100V PA system?

Yes. It includes both 70V and 100V speaker outputs. The total connected speaker load should be calculated and matched correctly before installation.

8. How much does the Ahuja SSA-10000 cost in India?

The current selling price can vary by supplier, taxes, shipping, quantity and installation requirements. Buyers should request a current quotation and confirm what is included.

9. How much does the Ahuja SSA-10000 weigh?

The published specification lists the weight as 42kg. Its dimensions are 540 × 185 × 510mm.

10. What should I check before buying the SSA-10000?

Check the speaker load, output type, number of inputs, power supply requirements, installation space, warranty, service support and whether the quotation includes installation or other PA equipment.
