Specifications
|

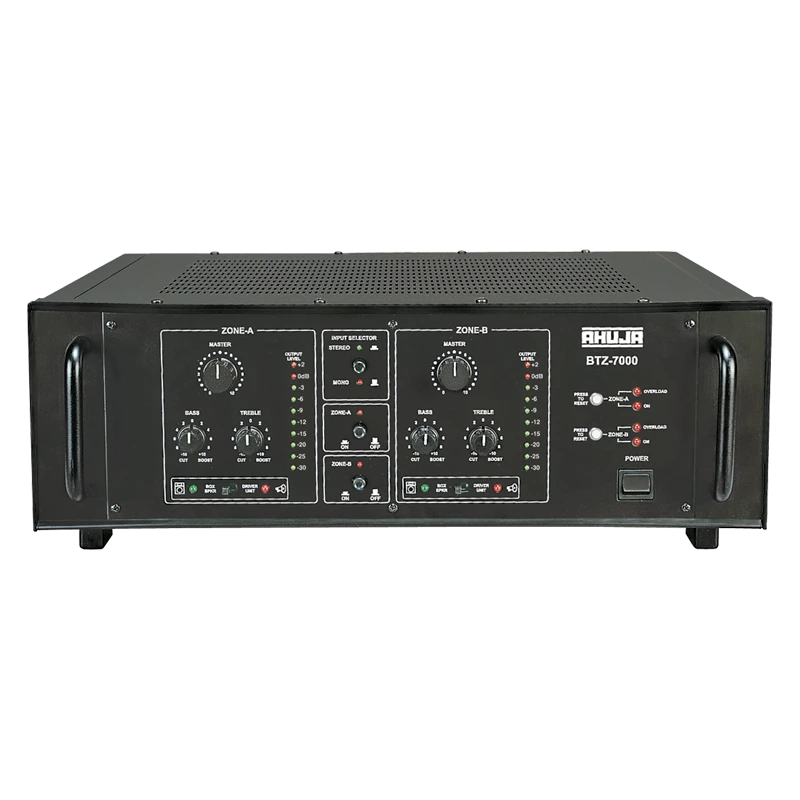

The Ahuja BTZ-7000 is officially listed by Ahuja at ₹39,183, with a listed price of ₹48,150. The final price on Elactree can vary based on applicable taxes, offers, stock, and current commercial pricing.
The Ahuja BTZ-7000 delivers 350W + 350W RMS output at 10% THD, providing a combined 700W RMS output across its two zones. It can also deliver 300W + 300W at 5% THD and 280W + 280W at 2% THD.
| Output rating | Power |
|---|---|
| Maximum output | 500W + 500W |
| RMS @ 10% THD | 350W + 350W |
| RMS @ 5% THD | 300W + 300W |
| RMS @ 2% THD | 280W + 280W |
The Ahuja BTZ-7000 is a two-zone PA power amplifier, allowing audio to be distributed across two separate speaker zones. Each zone has independent level control and can be switched ON or OFF individually.
Key zone features include:
The Ahuja BTZ-7000 supports 4Ω, 8Ω, 70V and 100V speaker outputs for each zone, making it suitable for different professional PA speaker configurations. The correct output should be selected according to the connected speaker system.
Supported outputs include:
Yes. The Ahuja BTZ-7000 is specifically designed for two-zone PA applications and is suitable for places of worship, where separate speaker areas may need independent volume control from a central amplifier.
It can also be considered for:
Yes. The Ahuja BTZ-7000 supports 36V DC backup operation using three 12V car batteries, allowing the amplifier to continue operating when AC mains power is unavailable.
| Power specification | Details |
|---|---|
| AC input | 220–240V, 50/60Hz |
| DC operation | 36V |
| Battery requirement | 3 × 12V car batteries |
| AC consumption | 1100VA |
| DC consumption | 13A |
The Ahuja BTZ-7000 has a 50Hz–15kHz frequency response with ±3dB variation, supporting the speech and music reproduction requirements expected from a professional PA amplifier.
Other key audio specifications include:
The Ahuja BTZ-7000 includes a resettable circuit breaker designed to provide protection against overload and short-circuit conditions. This is useful for professional PA installations where amplifier and connected-speaker protection are important.
The amplifier also provides:
The Ahuja BTZ-7000 measures approximately 510 × 185 × 470 mm (W × H × D) and weighs 39 kg. Its substantial size and weight should be considered when planning rack, cabinet, or equipment-room installation.
| Specification | Ahuja BTZ-7000 |
|---|---|
| Width | 510mm |
| Height | 185mm |
| Depth | 470mm |
| Weight | 39kg |
You can purchase the Ahuja BTZ-7000 through Elactree, an India-focused supplier of professional electronics and AV equipment. Buyers can check current pricing, stock, and suitability for their PA installation before ordering.
Our commitment is backed by a verified 99% on-time arrival rate for all domestic shipments within India.
Purchase with confidence. We guarantee genuine, brand-new electronics directly from certified manufacturers.
Your personal data is protected with advanced encryption. We strictly adhere to Indian data privacy laws.

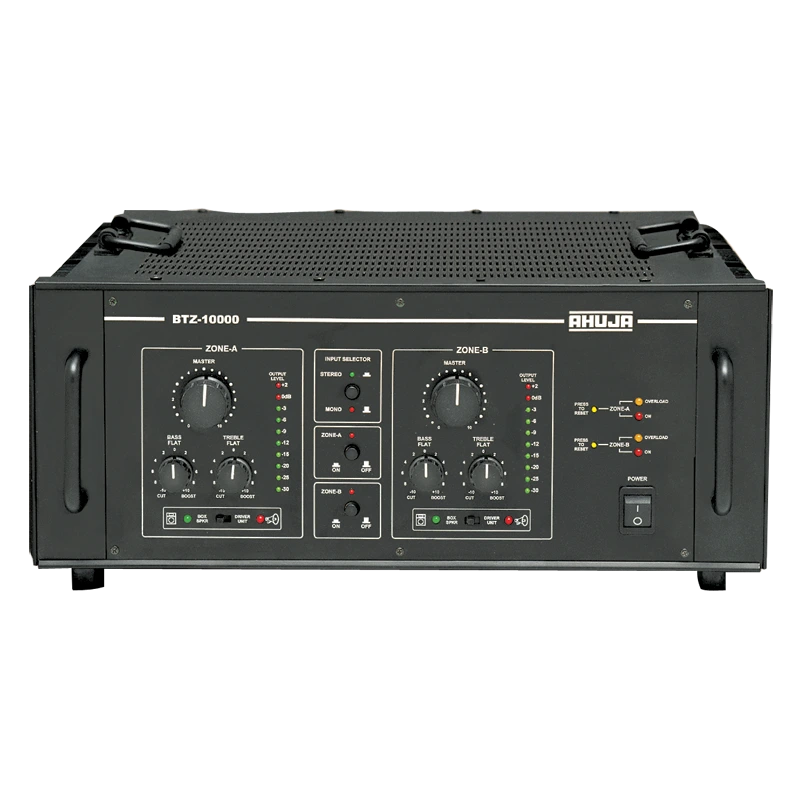

Ahuja BTZ-10000 is a 1000 Watts 2 Zone PA Power Amplifier designed for high-power multi-speaker installations where separate audio control is required for two different…
