Samsung 85 Inch Spatial Signage SMHX-P

3D Showcase — Bring your brand to life

* These visual assets were AI-generated and edited for illustrative purposes.

Key features at a glance

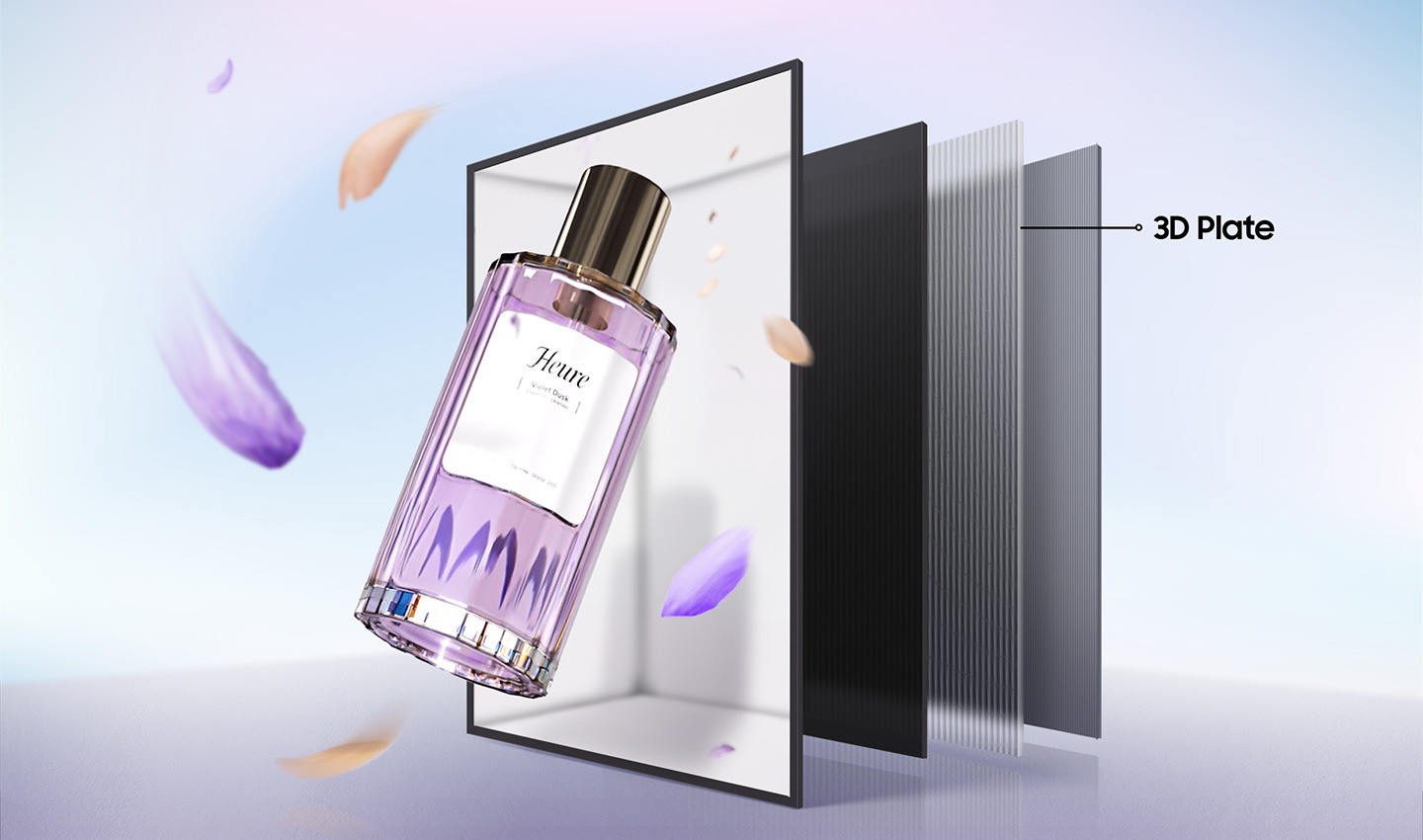

Deliver immersive realism through display innovation
Virtual 3D Display

Powered by Samsung’s patented 3D plate technology, this display goes beyond your 2D content-bringing it to life in 3D, face-to-face with your audience. Vivid details feel almost within reach, making every moment unforgettable.

Turn images into immersive spatial videos instantly with AI
AI Studio

AI Studio simplifies 3D video creation; just upload images and write a prompt to generate video content. Embedded within Samsung VXT, this AI-powered tool converts images into dynamic, 3D style visuals designed for Spatial Signage, helping businesses create engaging content quickly while reducing production complexity.

* AI Studio app must be purchased separately.* VXT must be purchased separately and the feature's availability may vary by region.

Bold visuals, effortless fit
UltraThin Design

Delivering 3D visuals in a 5.2 cm slim profile, this display offers the same installation ease as standard signage—lightweight, space-efficient, and ready for various environment.

Maintain visibility under challenging lighting
Anti-glare

Designed with an Anti-glare panel and optimized haze level, the display reduces reflections from indoor lighting and sunlight. In bright retail spaces or open offices, your content stays clear and easy to see.

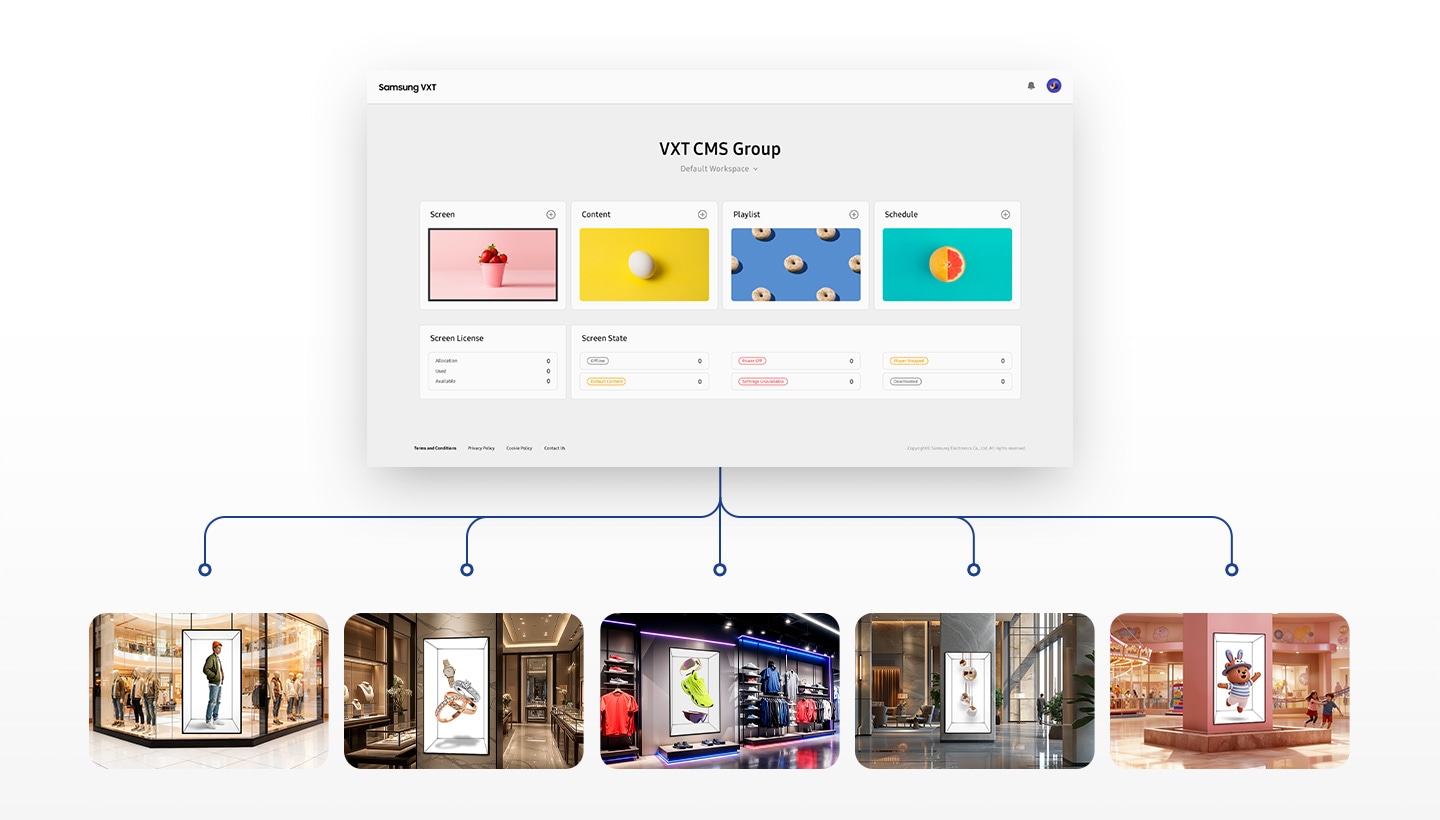

Change the way your display is managed
Samsung VXT

The cloud-based Samsung VXT brings together content management and remote device management capabilities. Remotely manage hardware settings and troubleshoot issues while creating and deploying content effortlessly with no previous training needed.

* VXT must be purchased separately and the feature's availability may vary by region.* Actual UI may differ and is subject to change without notice.

Empower your business with smart control
SmartThings Pro

SmartThings Pro brings IoT connectivity into Samsung's digital signage, enabling seamless integration with other smart devices across business environments. From lighting and appliances to building systems, the signage becomes part of a connected ecosystem—controlled, monitored, and automated through a single platform.

* SmartThings Pro must be purchased separately and the feature's availability may vary by region.* Actual UI may differ and is subject to change without notice.

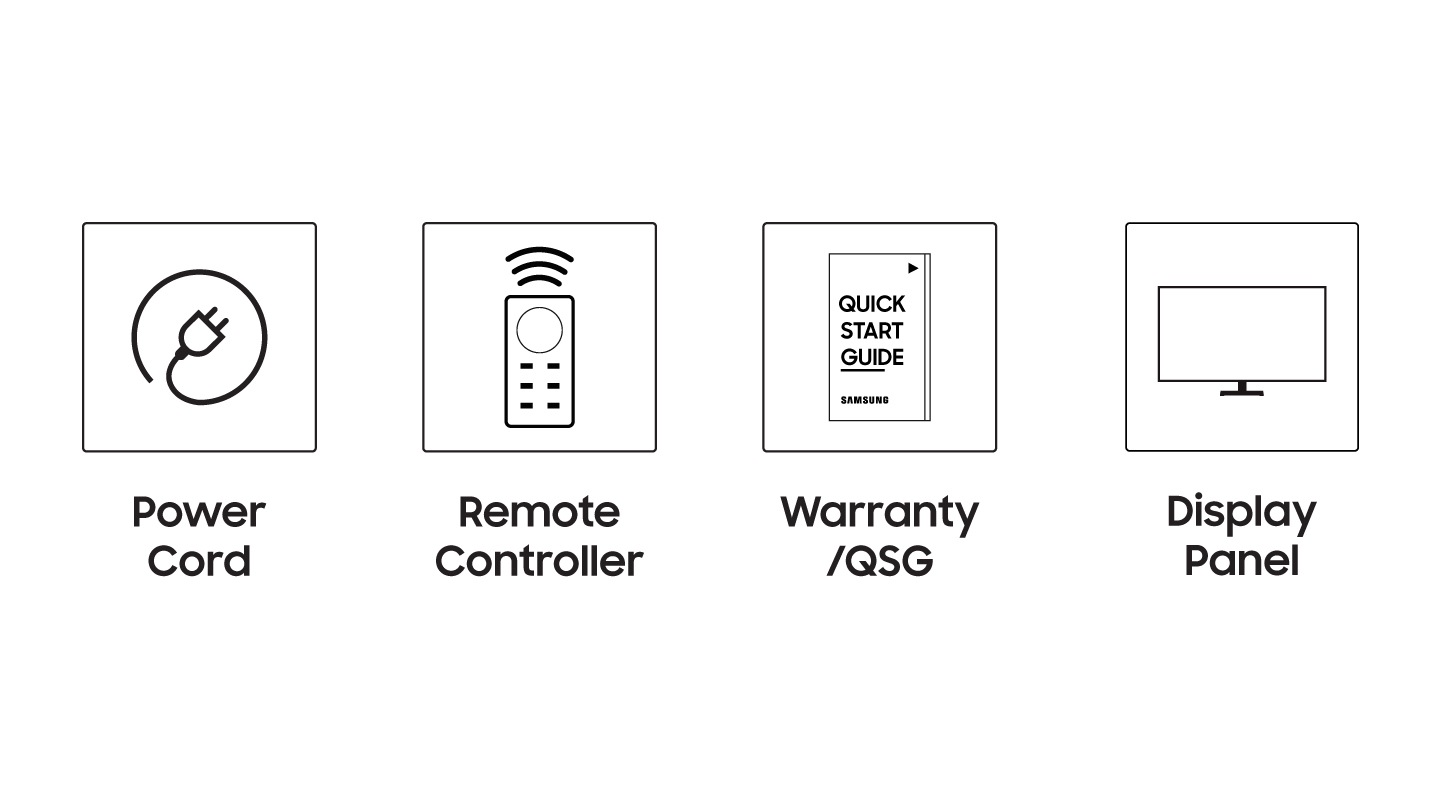

In-box Items

Display

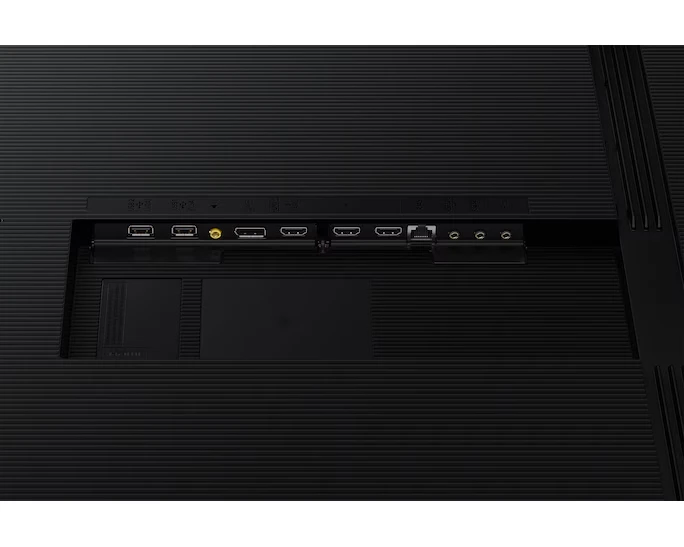

Connectivity

• Diagonal Size:2.16 m
• Panel Type:VA
• Resolution:3,840 x 2,160
• Pixel Pitch (HxV):0.48 x 0.48 mm
• Brightness (Typ):500 nit
• Contrast Ratio:4,000:1
• Viewing Angle (H/V):178/178
• Response Time:10ms
• Colour Gamut:72% (NTSC)
• Glass Haze:25%
• H-Scanning Frequency:30 - 81 kHz
• Maximum Pixel Frequency:594 MHz
• V-Scanning Frequency:48 - 75 Hz
• Contrast Ratio (Dynamic):Mega
• Operation Time Support:24/7

• HDMI In:3
• DP In:1
• Version of HDMI:2
• Version of DP:1.2
• Version of HDCP:2.2
• USB:2
• IR In:Yes
• Audio In:No
• Audio Out:Stereo Mini Jack
• RS232 In:Yes
• RS232 Out:Yes
• RJ45 In:Yes
• WiFi:Yes
• Bluetooth:Yes

Power

Dimension

• Power Supply:AC100-240V 50/60Hz
• Power Consumption (On Mode):484 W
• Power Consumption (Sleep Mode):0.5 W

• Set Dimension (WxHxD):1.10 m x 1.92 m x 5.20 cm
• Package Dimension (WxHxD):2.09 m x 1.23 m x 22.00 cm

Product Weight

Operation Conditions

• Set Weight:49.0 kg
• Package Weight:61.9 kg

• Temperature:0 ~ 40 ℃
• Humidity:10 ~ 80 (Non-Condensing)

Mechanical Specification

SoC

• VESA Mount:40.00 cm x 60.00 cm
• Bezel Width:21.0
• Bezel Colour:BLACK
• Frame Material:Non-Glossy

• OS Version:Tizen 7.0
• Flash Memory Size:16GB

Certification and Compliance

• EMC:Class A
• Safety:60950-1, 62368-1
