A
Speakers

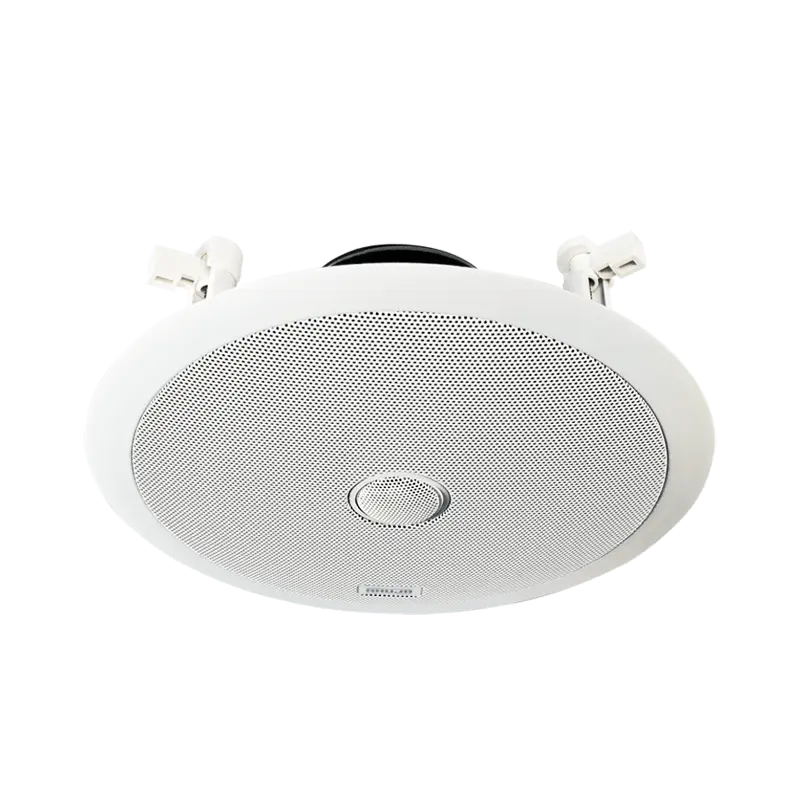

Ahuja CSD-6303T 30W 2-Way PA Ceiling Speaker

SKU: CSD-6303T
In Stock
The Ahuja CSD-6303T is a 30W RMS 2-way PA ceiling speaker with a 6-inch woofer and adjustable 1-inch tweeter. It features 100V line operation with 30W/15W/7.5W power taps, delivering clear speech and music for commercial and professional installations.
Dimensions Ø230 × H120 mm
Frequency Response 90 Hz – 18,000 Hz
Input Power 30W RMS
Impedance Voltage 330Ω / 670Ω / 1.33kΩ 100V line

Easy Payments & Easy Returns

Payment Methods
100% Original

Genuine Products

Secure Payment

SSL Encrypted Protection

Buyer Protection

Full Warranty Coverage

Pan India Shipping

Fast & Reliable Delivery

Specification

  • Type
  •  2-Way PA Ceiling Speaker
  • Input Power
  •   30W RMS
  • Power Taps on 100V
  •  30W / 15W / 7.5W
  • Impedance
  •  330Ω / 670Ω / 1.33kΩ
  • Frequency Response
  •   90 Hz – 18,000 Hz
  • SPL at 1kHz (1W/1m)
  • 92 dB
  • Woofer
  • 150 mm (6")
  • Tweeter
  •  25 mm (1")
  • Tweeter Type
  • Adjustable / Tiltable
  • Operation
  •  100V Line
  • Dimensions
  •  Ø230 × H120 mm
  • Weight
  • 1.65 kg
  • Mounting
  •  Flush-mount ceiling
  • Frame
  •  Moulded plastic
  • Grille
  • Metal mesh
  • Connection
  •  Terminal block
  • Application
  •  PA & background music



FAQs

1.What is the Ahuja CSD-6303T?

The Ahuja CSD-6303T is a 30W RMS, 2-way PA ceiling speaker designed for clear voice announcements and background music.

2.What is the power output of the CSD-6303T?

The CSD-6303T has a rated power output of 30W RMS.

3.What are the power taps available on the CSD-6303T?

It provides 30W, 15W, and 7.5W power taps for 100V-line installations.

4.Is the Ahuja CSD-6303T a 100V line speaker?

Yes. The CSD-6303T is designed for 100V-line PA systems.

5.What is the frequency response of the CSD-6303T?

Its frequency response is approximately 90 Hz to 18 kHz, making it suitable for both speech and background music.

6.What type of drivers are used in the CSD-6303T?

The speaker uses a 6-inch woofer and 1-inch tweeter in a 2-way configuration.

7.What is the SPL of the Ahuja CSD-6303T?

The CSD-6303T provides approximately 92 dB SPL at 1W/1m at 1 kHz.

8.Where can the Ahuja CSD-6303T be used?

It is suitable for offices, hotels, restaurants, malls, hospitals, schools, gyms, retail stores, and other commercial spaces.

9.Can the tweeter of the CSD-6303T be adjusted?

Yes. The CSD-6303T features an adjustable/tiltable tweeter to help direct high-frequency sound.

10.Is the Ahuja CSD-6303T suitable for background music?

Yes. Its 2-way design and wide frequency response make it suitable for background music as well as clear public-address announcements.
