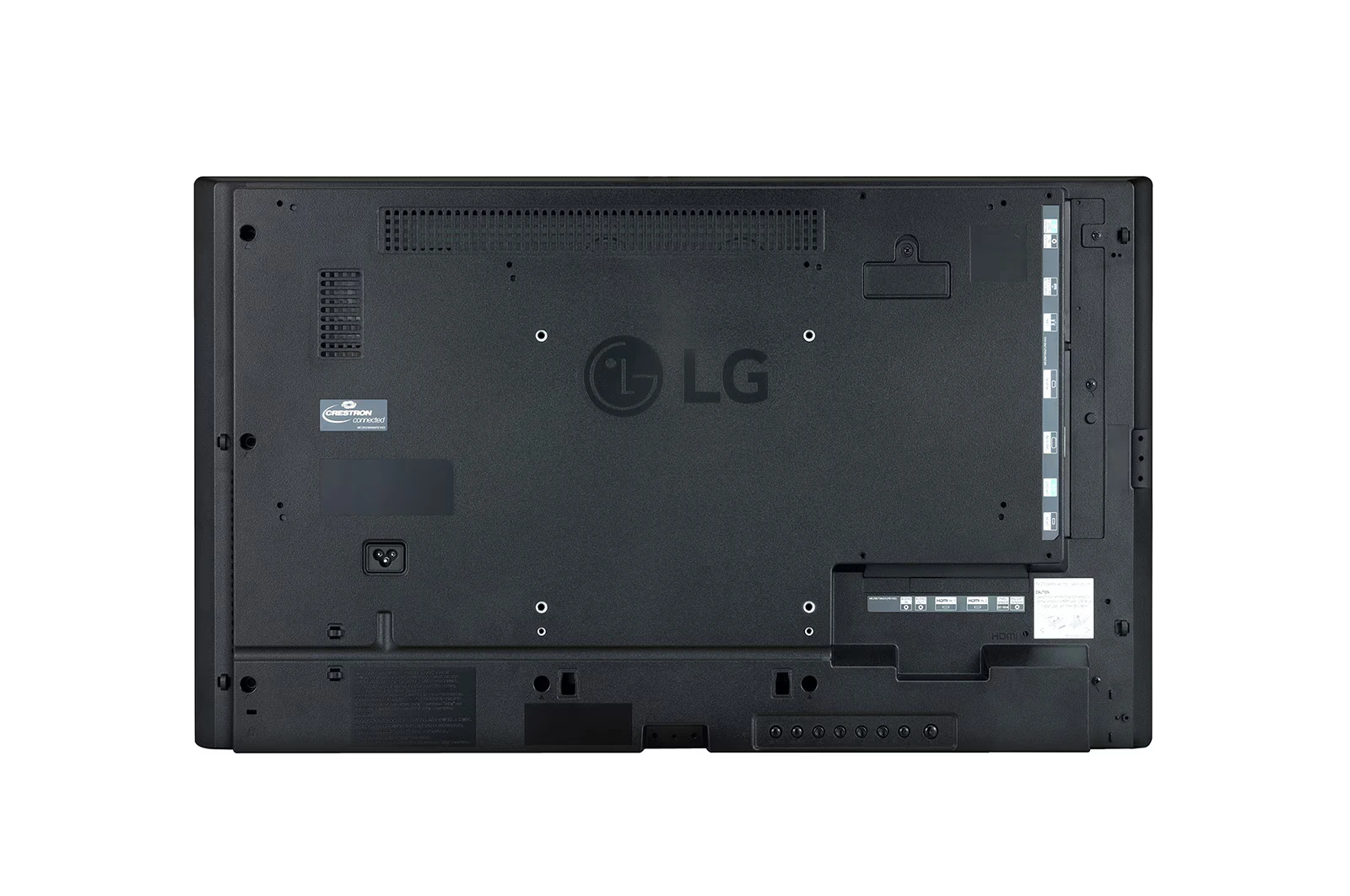

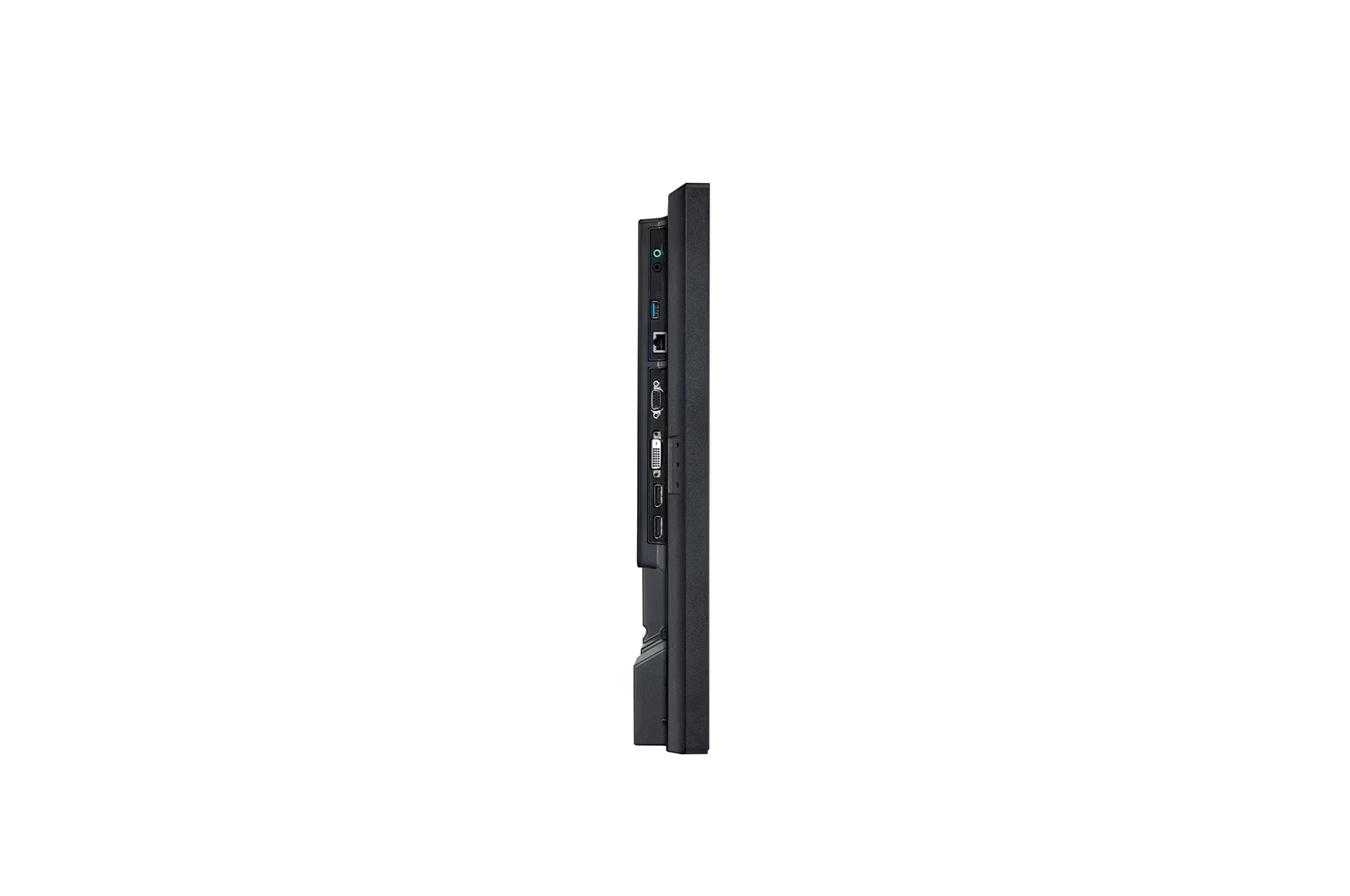

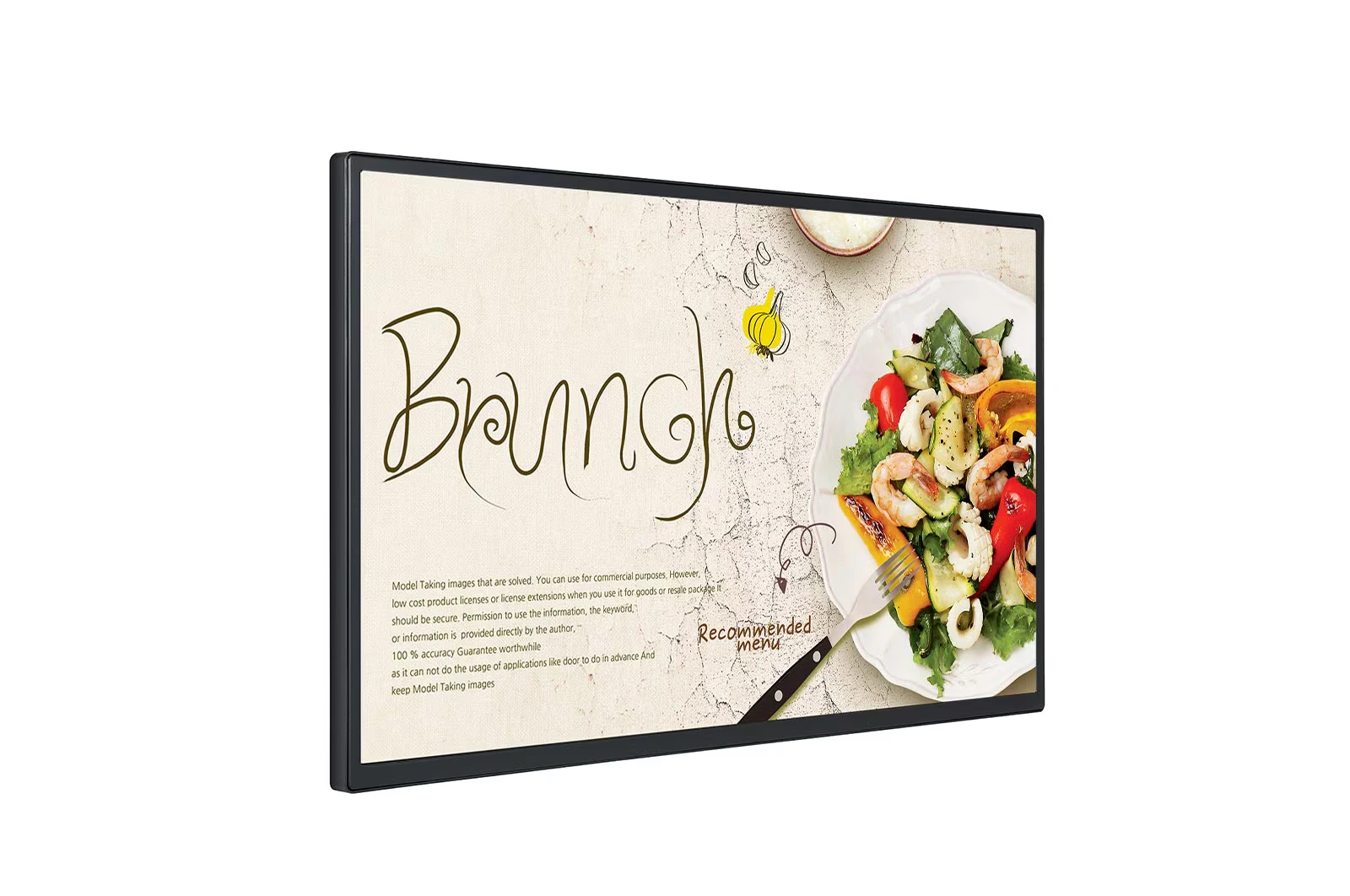

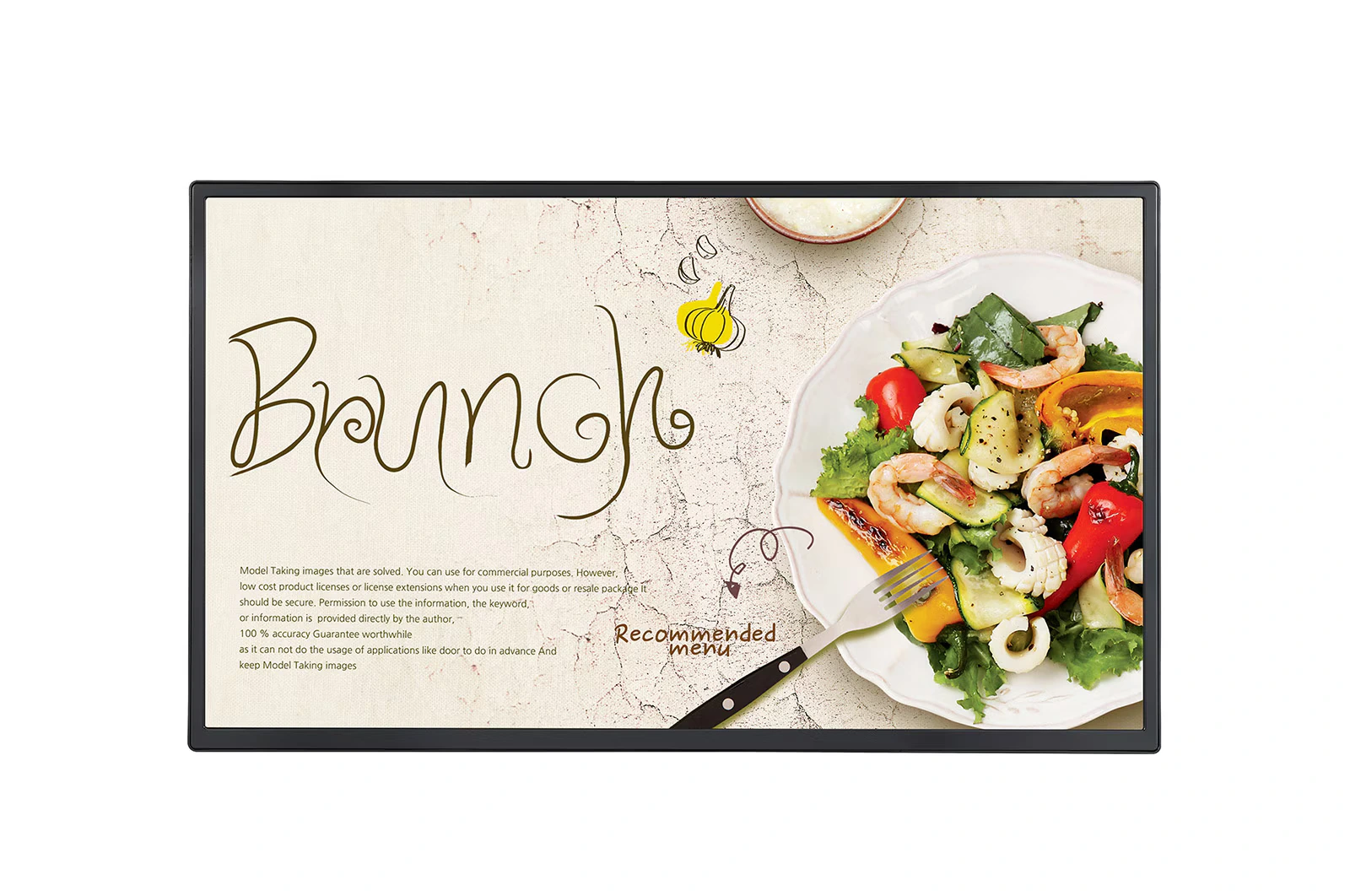

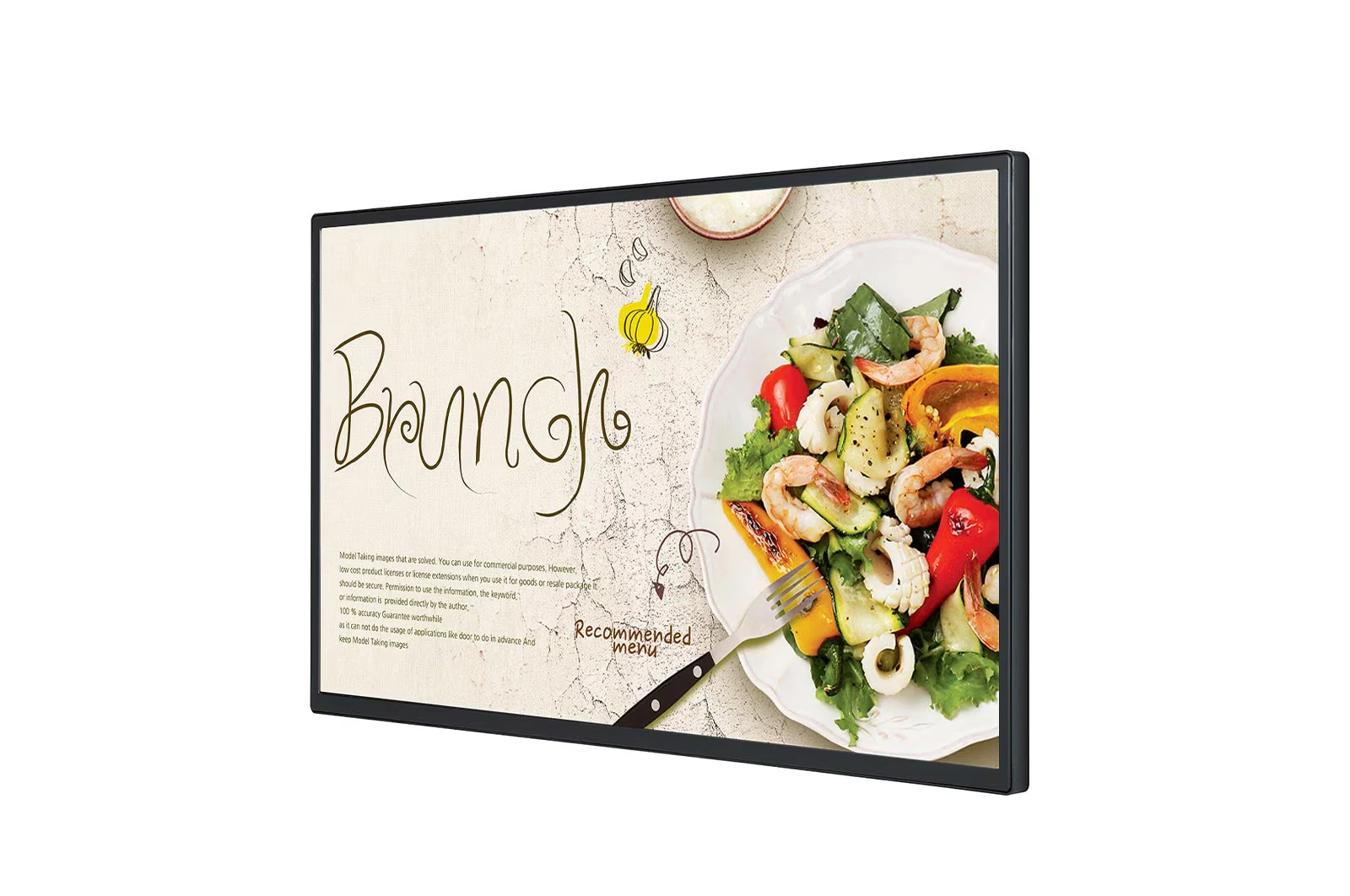

LG 32SM5J-B 32 Inch Full HD Standard Signage

LG webOS Standard Signage

*All images in this web page are for illustrative purposes only and may differ from the actual product.

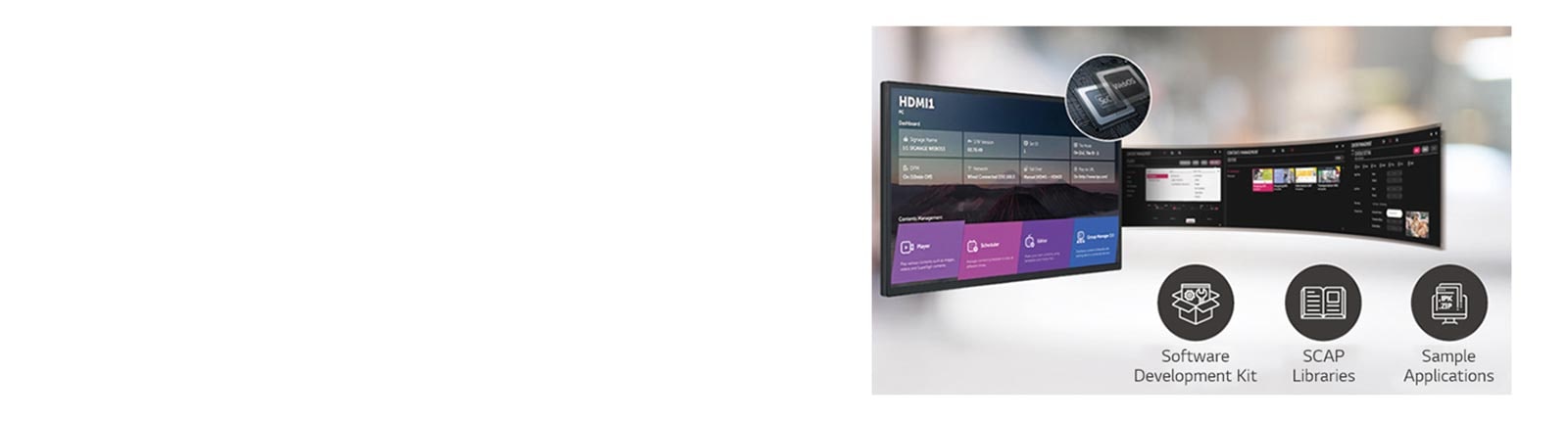

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

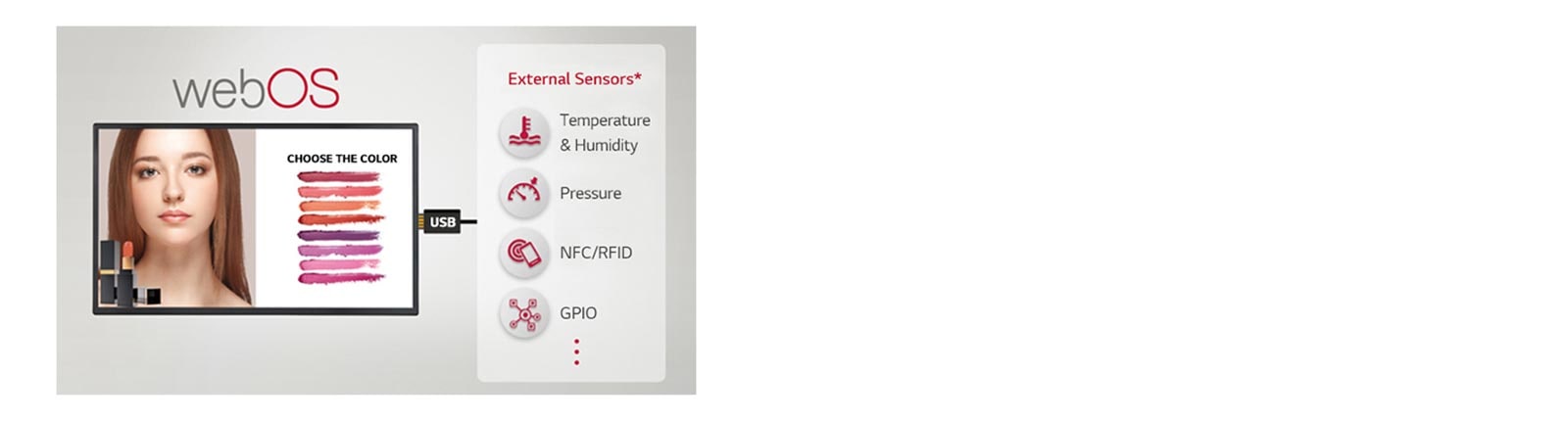

Various Sensor Connection

LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

*External sensors need to be purchased separately and tested for compatibility with webOS platform.

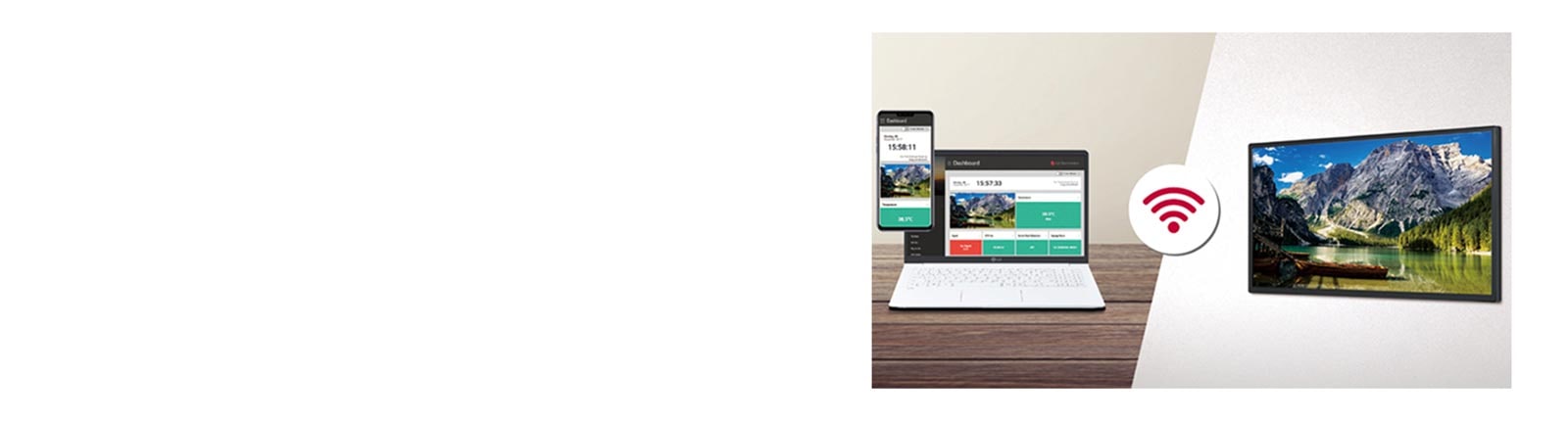

Mobile & Web Monitoring

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.

*The mobile devices need be connected with the Signage IP address and can control one Signage at a time.
*Control Manager is optimized for Google Chrome 56 version and above.

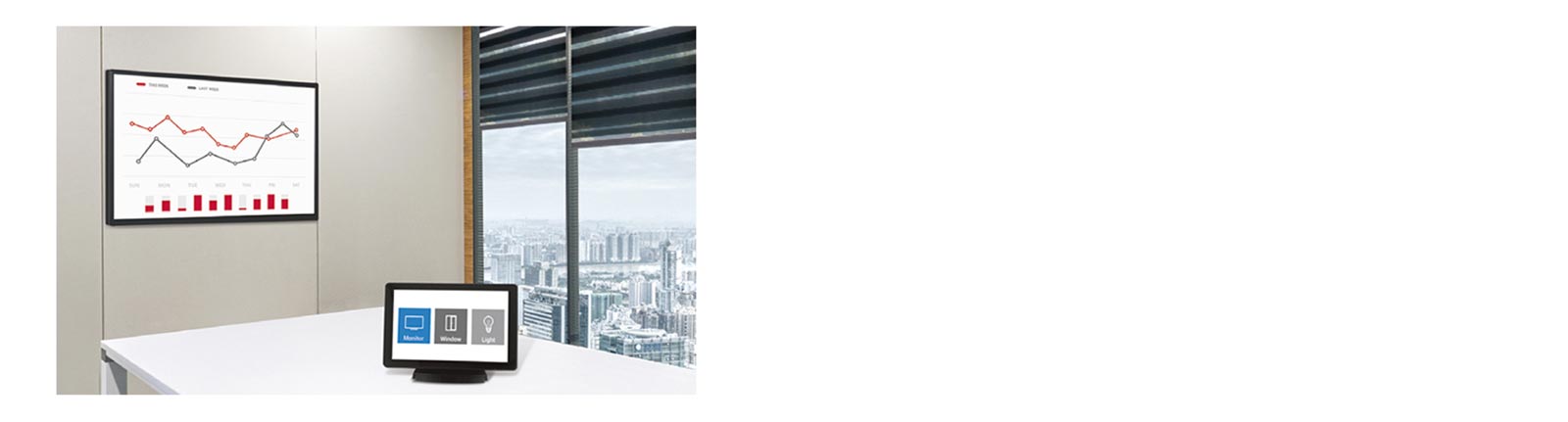

Compatible with AV Control System

The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

*Network based control.

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.

Real-Time Promotion

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.

Content Sharing

Content Mirroring among devices is available on a Wi-Fi network.

Wireless Access Point

The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.

FEATURE - HARDWARE

SPECIAL FEATURE

• Wi-Fi/BT (Built-in):YES
• Acceleration (Gyro) Sensor:NO
• Auto Brightness Sensor:YES
• BLU Sensor:NO
• Current Sensor:NO
• FAN (Built-in):NO
• Humidity Sensor:NO
• Internal Memory (eMMC):8 GB
• Local Key Operation:YES
• Pixel Sensor:NO
• Power Indicator:NO
• Proximity Sensor:NO
• Temperature Sensor:YES

• Smart Calibration:N/A
• Conformal Coating (Power Board):N/A
• Direct Sunlight:N/A
• IP Rating:N/A
• Overlay Touch Compatibility:N/A
• Power Protection:N/A
• Tilt (Face down):N/A
• Tilt (Face up):N/A


CERTIFICATION

SOFTWARE COMPATIBILITY

• ERP / Energy Star:NO / YES
• EMC:FCC Class "A" / CE
• ePEAT(US only):NO
• Safety:CB / NRTL

• Connected Care:YES
• Mobile CMS:NO
• SuperSign Cloud:NO
• SuperSign CMS:YES
• SuperSign Control+:YES
• SuperSign WB:YES

OPS COMPATIBILITY

POWER

• OPS Type compatible:NO
• OPS Power Built-in:NO

• Power Supply:AC 100-240 V~, 50/60 Hz
• Power Type:Built-in Power

SOUND

ENVIRONMENT CONDITIONS

• Speaker (Built-in):YES (10 W x 2)

• Operation Humidity:10 % to 80 %
• Operation Temperature:0 °C to 40 °C

CONNECTIVITY

MECHANICAL

• RJ45(LAN) In:YES (1 ea)
• Audio In:NO
• Audio Out:YES
• Daisy Chain:NO
• DP In:NO
• DP Out:NO
• DVI-D In:NO
• External Speaker Out:NO
• HDMI In:YES (3 ea)
• HDMI In (HDCP Ver.):2.2
• HDMI Out:NO
• IR In:YES
• IR Out:NO
• RGB In:NO
• RJ45(LAN) Out:NO
• RS232C In:YES
• RS232C Out:YES
• Touch USB:NO
• USB In:USB 2.0 Type A (1 ea)

• VESA™ Standard Mount Interface (mm):200 x 200 mm
• Bezel Color:Black
• Bezel Width:T/R/L: 13 mm, B: 18 mm
• Carton Dimensions (W x H x D, mm):810 x 510 x 132 mm
• Handle:NO
• Monitor Dimension (W x H x D, mm):729.4 x 428.9 x 55.5 mm
• Monitor Dimension with Stand (W x H x D):729.4 x 481 x 154.2 mm
• Packed Weight:7.4 Kg
• Weight (Head):5.7 Kg
• Weight (Head+Stand):6.5 Kg

PANEL

FEATURE - SOFTWARE

• Color Depth (Number of Colors):1.07 Billion colors
• Aspect Ratio:16 : 9
• Back Light Type:Direct
• Brightness:400 nit (Typ.)
• Color Gamut:NTSC 68 %
• Dynamic CR:1,000,000:1
• Native Resolution:1920 x 1080 (FHD)
• Operation Hours (Hours/Day):24/7
• Panel Technology:IPS
• Portait / Landscape:YES / YES
• QWP (Quarter Wave Plate):N/A
• Refresh Rate:60 Hz
• Response Time:10 ms (G to G)
• Screen Size:80 CM (32)
• Surface Treatment (Haze):Haze 1 %
• Transparency:N/A
• Viewing Angle (H x V):178º x 178º

• Scan Inversion:NO
• Auto Set ID:YES
• Backlight Sync:NO
• BEACON:YES
• Booting Logo Image:YES
• Brightness Compensation:NO
• Cisco Certification:YES
• Control Manager:YES
• Crestron Connected:YES
• External Input Rotation:YES
• Fail Over:YES
• Gapless Playback:YES
• Group Manager:YES
• HDMI-CEC:YES
• ISM Method:YES
• Local Contents Scheduling:YES
• Local Network Sync:YES
• Network Ready:YES
• No Signal Image:YES
• OS Ver. (webOS):webOS 6.0
• PBP:NO
• PIP:NO
• Play Via URL:YES
• PM mode:YES
• Pro:Idiom:YES
• RS232C Sync:YES
• Screen Rotation:YES
• Screen Share:YES
• Setting Data Cloning:YES
• SI Server Setting:YES
• Smart Energy Saving:YES
• SNMP:YES
• Status Mailing:YES
• Tile Mode Setting:NO
• USB Plug & Play:YES
• Video Tag:YES (4 Video Tag)
• Wake on LAN:YES
• webRTC:YES
• W/B Setting by Grey scale:NO

POWER CONSUMPTION

• Others-BTU (British Thermal Unit):188 BTU/Hr(Typ.), 256 BTU/Hr(Max.)
• DPM:0.5 W
• Max.:75 W
• Power off:0.5 W
• Smart Energy Saving (70%):38.5 W
• Typ.:55 W
