LG 43UH7N-E 43 Inch 4K UHD Signage Display

UHD Signage Display with
LG webOS Platform and Advanced Security

*All images in this page are for illustrative purposes only.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

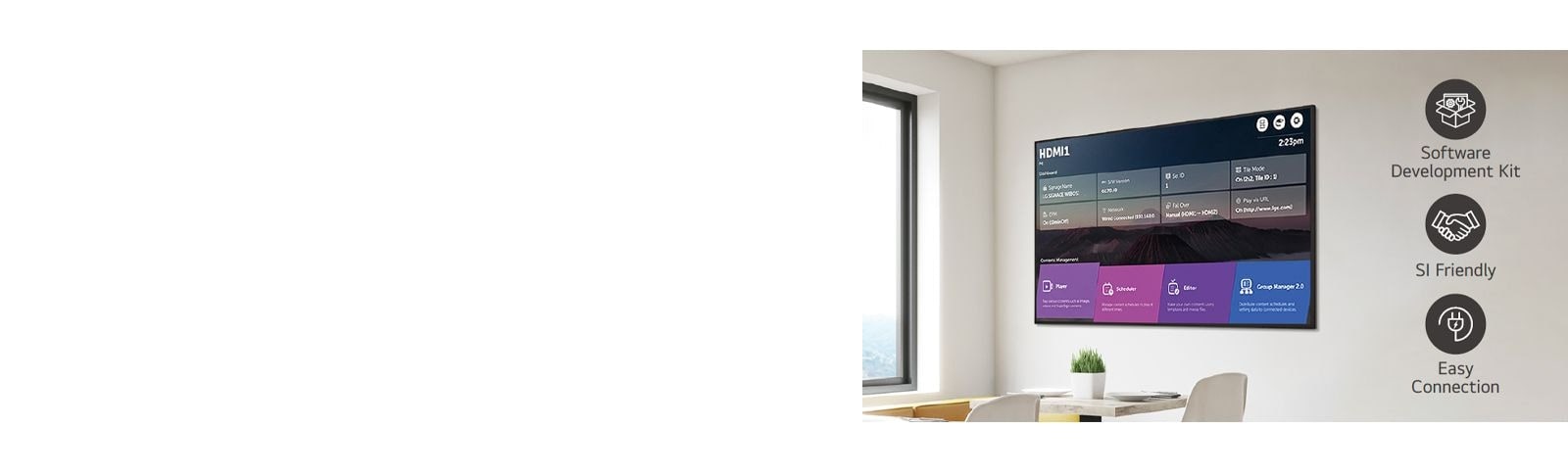

Convenient webOS Platform

The UH7N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UH7N-E is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH7N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers' interior spaces.

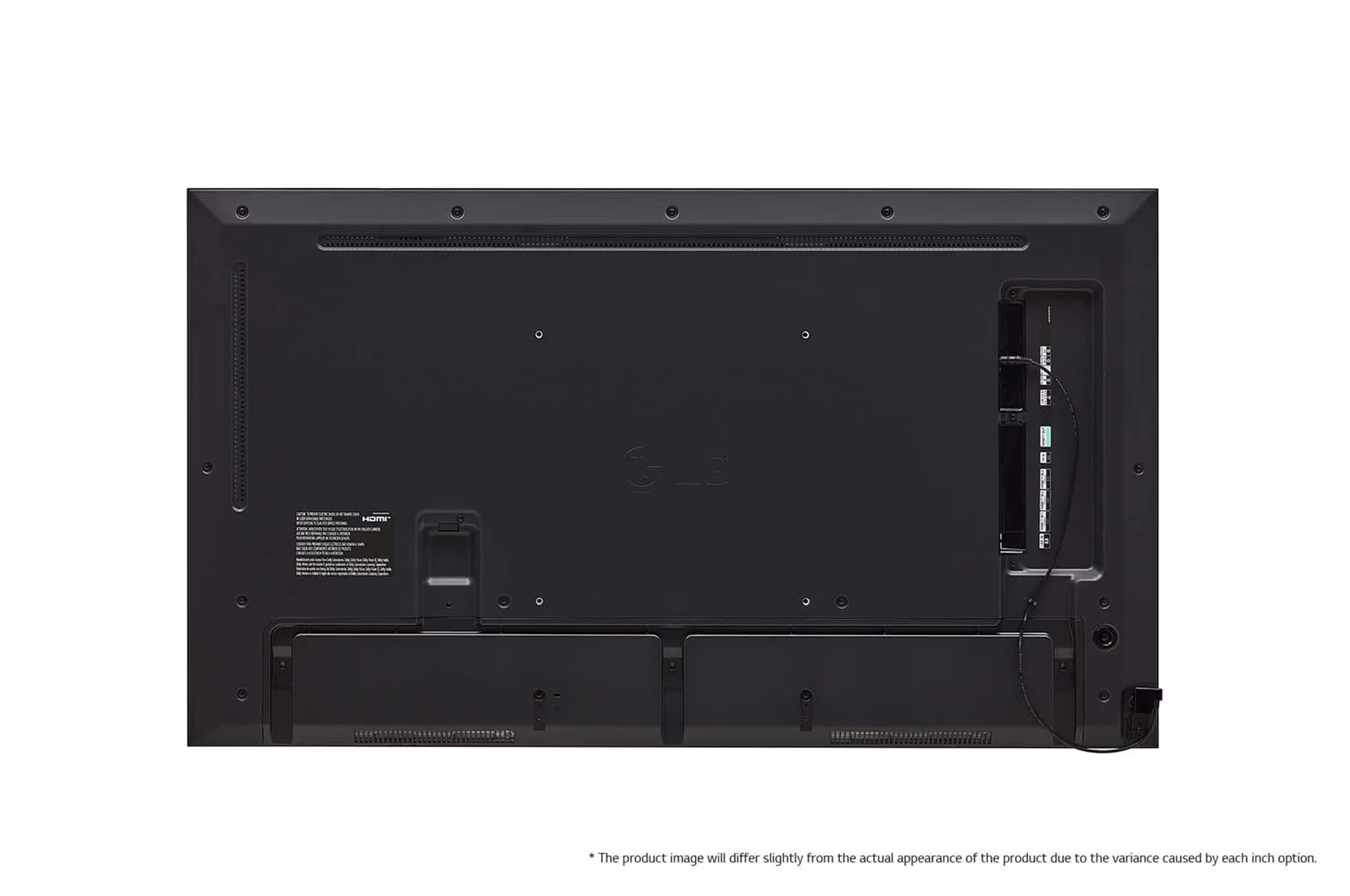

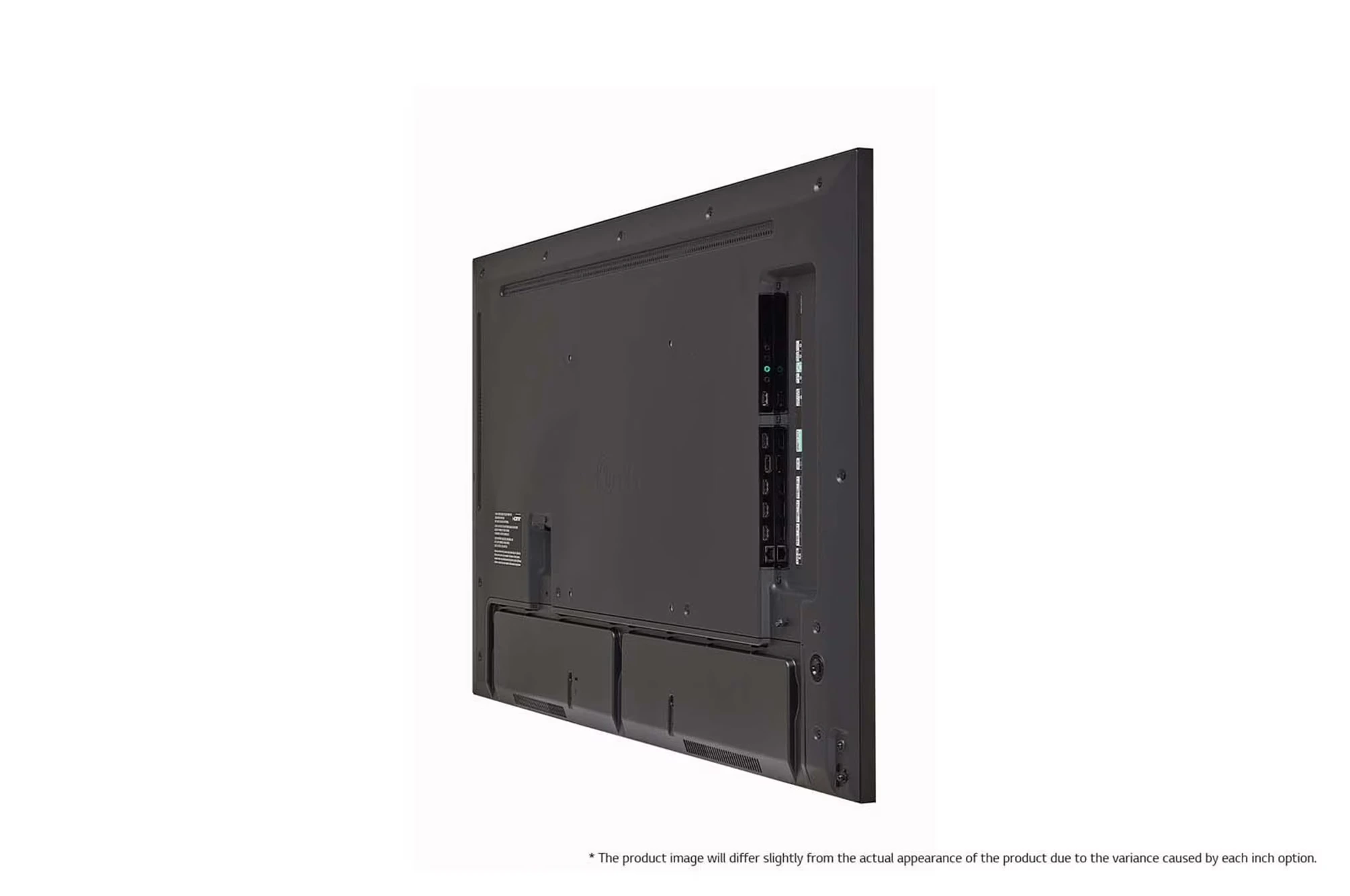

*The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
*Bezel accessories are sold separately at an additional cost.

Enhanced Security Features

The UH7N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability

Recycled resins are used to manufacture back covers for digital signage product* and LG plans to expand this practice to other models as well. In addition, recycled cardboard was partially used to produce packaging materials, and the printing information on the packaging materials was written by only black ink.

*Digital signage product refers "UH7N-E" model.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Carbon Footprint Certification

The cradle-to-grave carbon footprint of UH7N-E has been reduced.

*UH7N-E achieved CO2 Measured certification.
*The Carbon Trust Assurance for UH7N-E is valid until 18 Dec 2025.
*The Carbon Trust Assurance for UH7N-E is certified against PAS2050:2011.

PANEL

CONNECTIVITY

• Screen Size:109.22 cm (43)
• Panel Technology:IPS
• Back Light Type:Edge
• Aspect Ratio:16:9
• Native Resolution:3840 x 2160 (UHD)
• Refresh Rate:60 Hz
• Brightness:700 nit (Typ.)
• Dynamic CR:1,000,000:1
• Color Gamut:BT709 95 %
• Viewing Angle (H x V):178 X 178
• Color Depth (Number of Colors):10 bit(D), 1.07 Billion colors
• Response Time:8 ms (G to G)
• Surface Treatment (Haze):28 %
• Life time:50,000 Hrs (Min.)
• Operation Hours (Hours/Day):24/7
• Portait / Landscape:Yes / Yes

• HDMI In:Yes(2), 3840x2160@60 Hz, HDCP 2.2/1.4
• DP In:Yes(1), 3840x2160@60 Hz, HDCP2.2/1.3
• RS232C In:Yes(1)
• RJ45(LAN) In:Yes(1)
• IR In:Yes(1)
• USB In:USB 2.0 Type A(1), USB 2.0 Type C ((1), without PD funtion)
• DP Out:Yes(1), 3840x2160@60 Hz, Input : HDMI1/2/DP/USB-C
• Audio Out:Yes(1)
• RS232C Out:Yes(1), 4 pin Phone-jack
• Daisy Chain:Yes(Input HDMI, DP, USB C / Output DP)

MECHANICAL SPECIFICATION

FEATURE - HARDWARE

• Bezel Color:Black
• Bezel Width:T/R/L: 8.9 mm, B: 12.9 mm
• Weight (Head):11.1 kg
• Packed Weight:12.8 kg
• Monitor Dimension (W × H × D):963.0 × 556.2 × 29.7 mm (without IR)
• VESA™ Standard Mount Interface:200 × 200 mm
• Carton Dimensions (W × H × D):1055.0 × 660.0 × 142.0 mm

• Internal Memory (eMMC):16 GB
• Wi-Fi/BT (Built-in):Yes
• Temperature Sensor:Yes
• Auto Brightness Sensor:Yes
• Local Key Operation:Yes

FEATURE - SOFTWARE

POWER CONSUMPTION

• OS Ver. (webOS):webOS 6.0
• Local Contents Scheduling:Yes
• Group Manager:Yes
• USB Plug & Play:Yes
• Fail Over:Yes
• Booting Logo Image:Yes
• No Signal Image:Yes
• RS232C Sync:Yes
• Local Network Sync:Yes
• PIP:Yes
• PBP:Yes(4)
• Screen Share:Yes
• Video Tag:Yes(4)
• Play Via URL:Yes
• Screen Rotation:Yes
• External Input Rotation:Yes
• Gapless Playback:Yes
• Tile Mode Setting:Yes (Max. 15x15)
• Setting Data Cloning:Yes
• SNMP:Yes
• ISM Method:Yes
• Auto Set ID:Yes
• Status Mailing:Yes
• Control Manager:Yes
• Cisco Certification:Yes
• Crestron Connected:Yes
• Smart Energy Saving:Yes
• PM mode:Yes
• Wake on LAN:Yes
• Network Ready:Yes
• BEACON:Yes
• HDMI-CEC:Yes
• SI Server Setting:Yes
• webRTC:Yes
• Pro:Idiom:Yes

• Max:130 W
• Typ:90 W
• Power off:0.5 W
• DPM:0.5 W
• Others-BTU (British Thermal Unit):307 BTU/Hr(Typ.), 444 BTU/Hr(Max)
• Smart Energy Saving (70%):63

ENVIRONMENT CONDITIONS

POWER

• Operation Temperature:0 °C to 40 °C
• Operation Humidity:10 % to 80 %

• Power Supply:AC 100-240 V~, 50/60 Hz
• Power Type:Built-In Power

CERTIFICATION

SOFTWARE COMPATIBILITY

• Safety:CB / NRTL
• EMC:FCC Class "B" / CE / KC
• ERP / Energy Star:NA/Yes
• ePEAT(US only):Yes (Carbon Measured)

• SuperSign CMS:Yes
• SuperSign Control+:Yes
• SuperSign WB:Yes
• SuperSign Cloud:Yes
• Promota:Yes (Not available for EU/CIS)
• Mobile CMS:Yes
• Connected Care:Yes

SOUND

• Speaker (Built-in):Yes (10 W X 2)
