LG 55UH5N 55 Inch UHD Signage Display

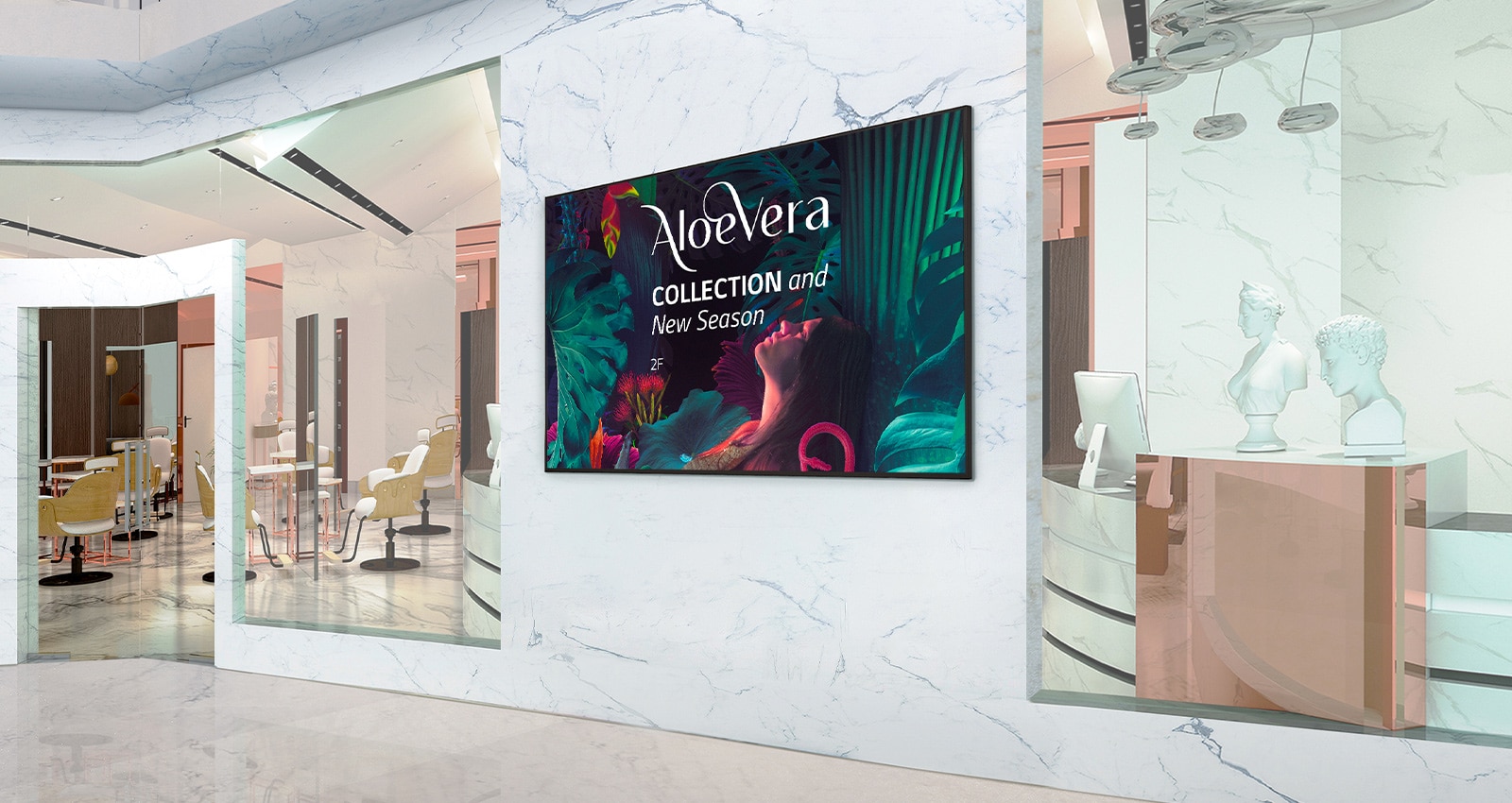

Large UHD Signage Display with Slim Design

*All images in this page are for illustrative purposes only.

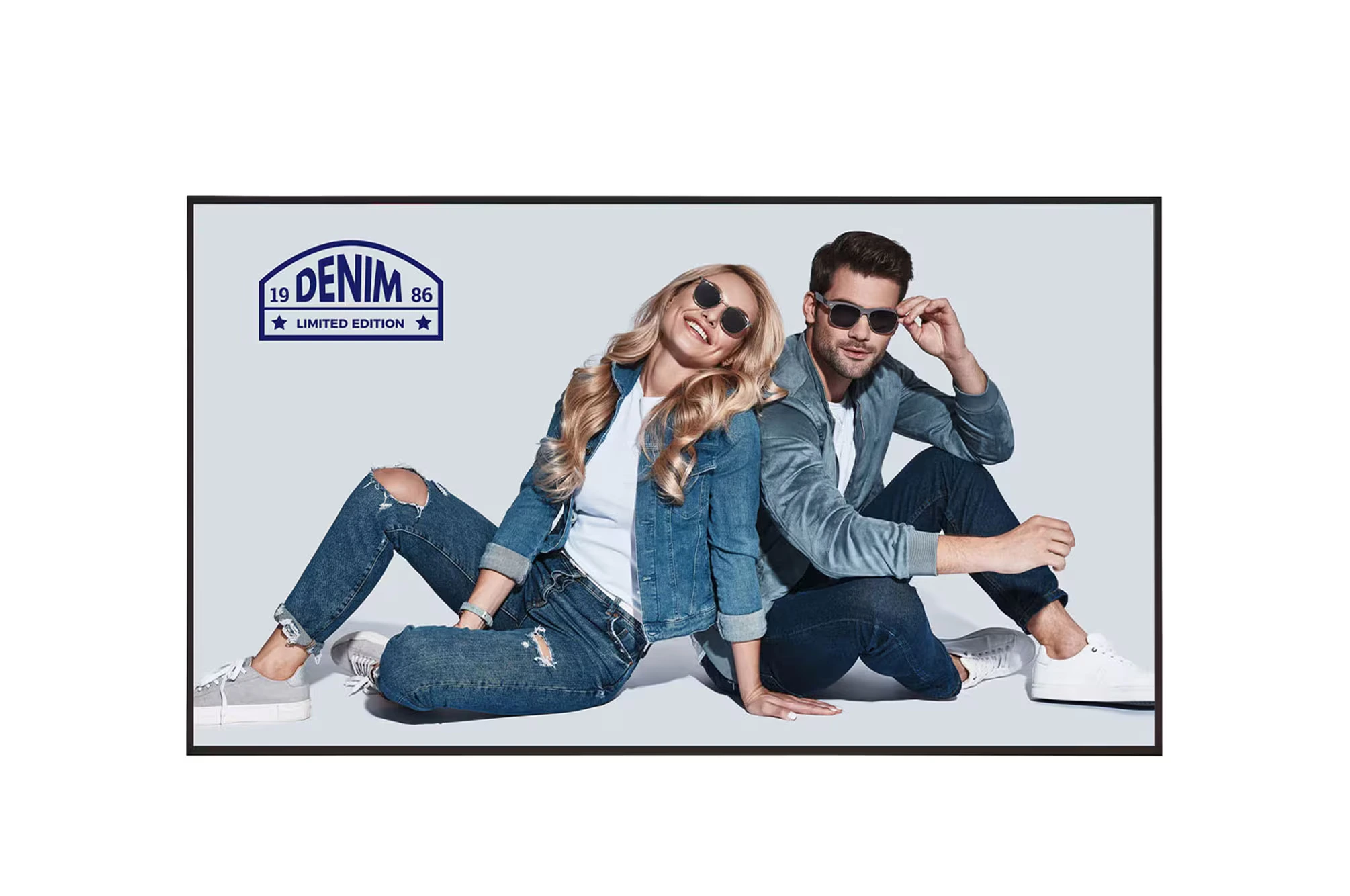

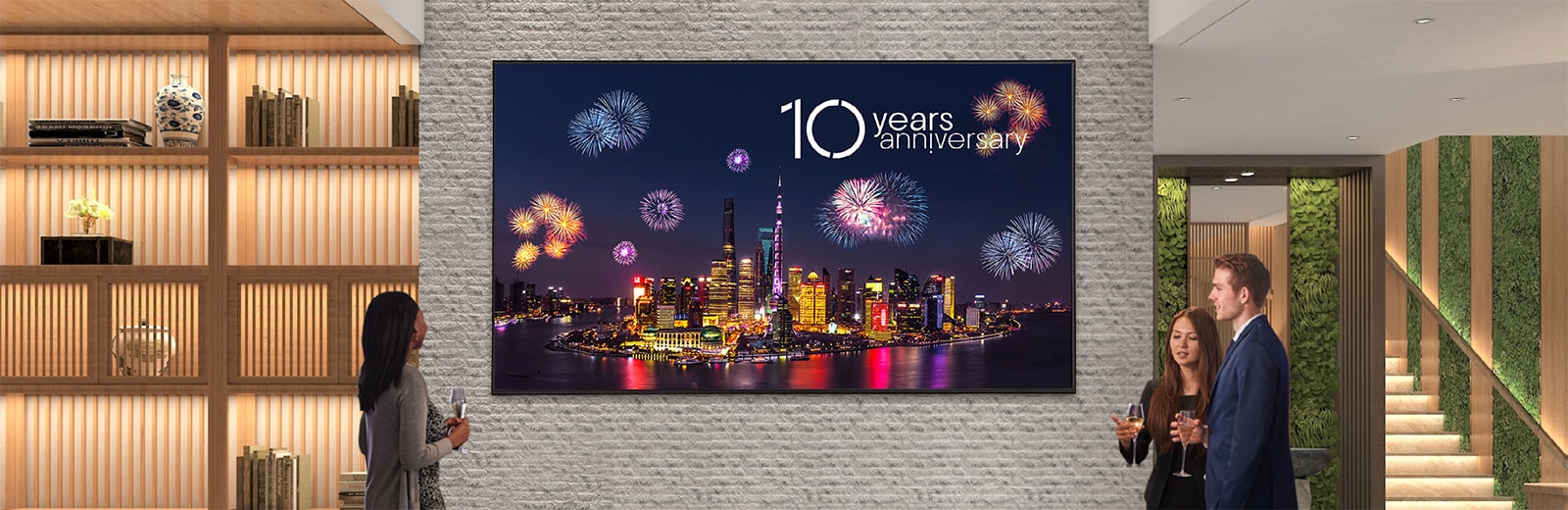

Eye-catching Large Screen

A large screen effectively captures people's attention. Especially, 139.7 cm (55) model supports 60Hz, enabling smooth content operation.

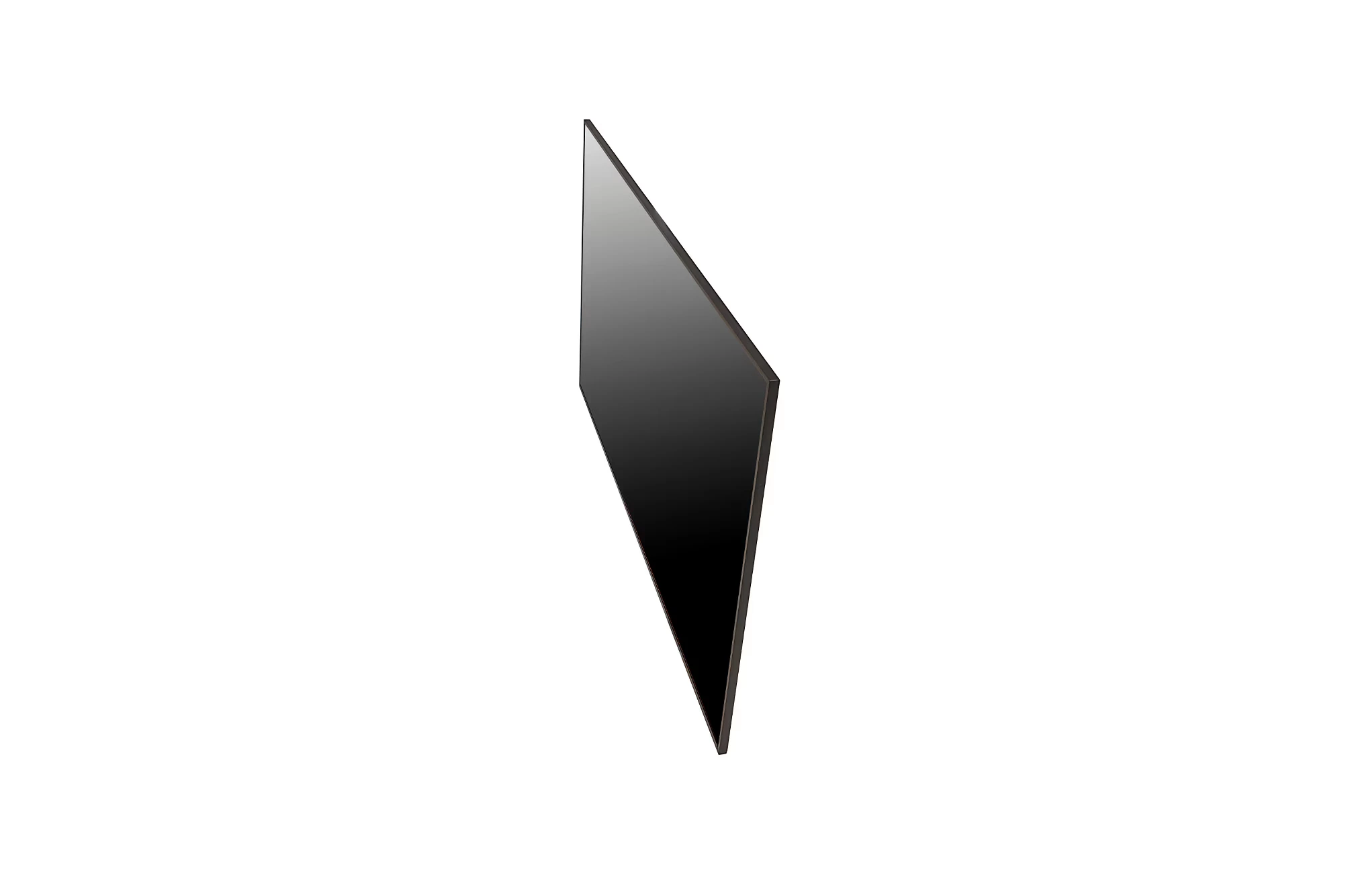

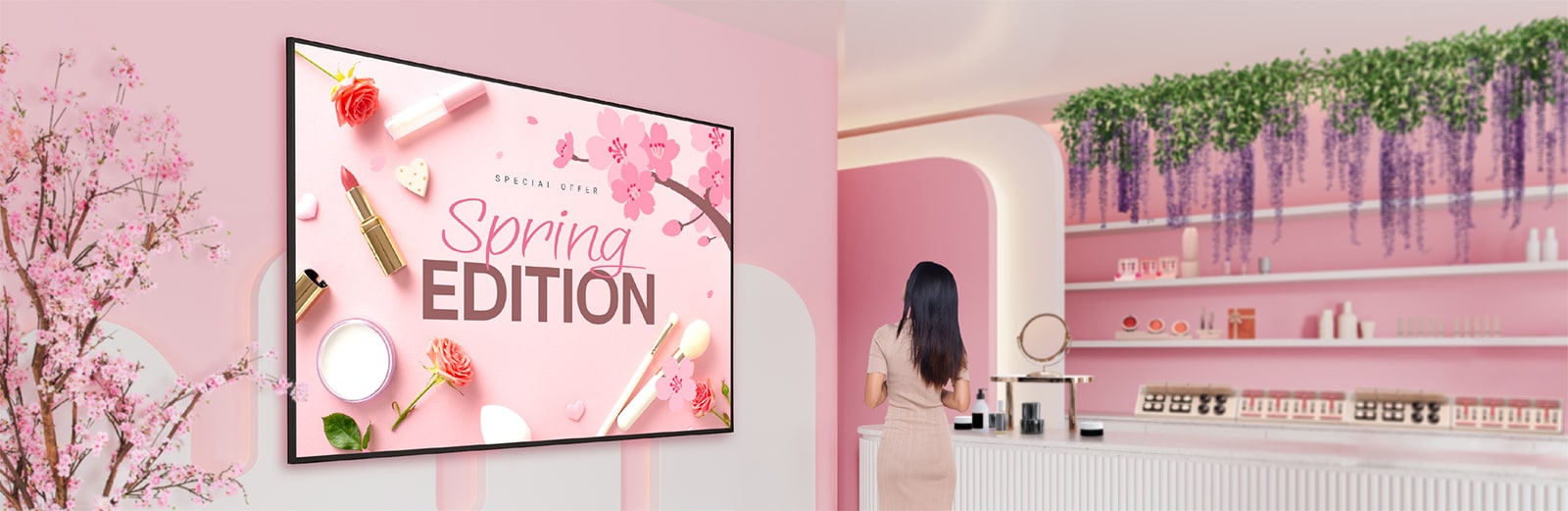

Slim Depth with Even Bezel

Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

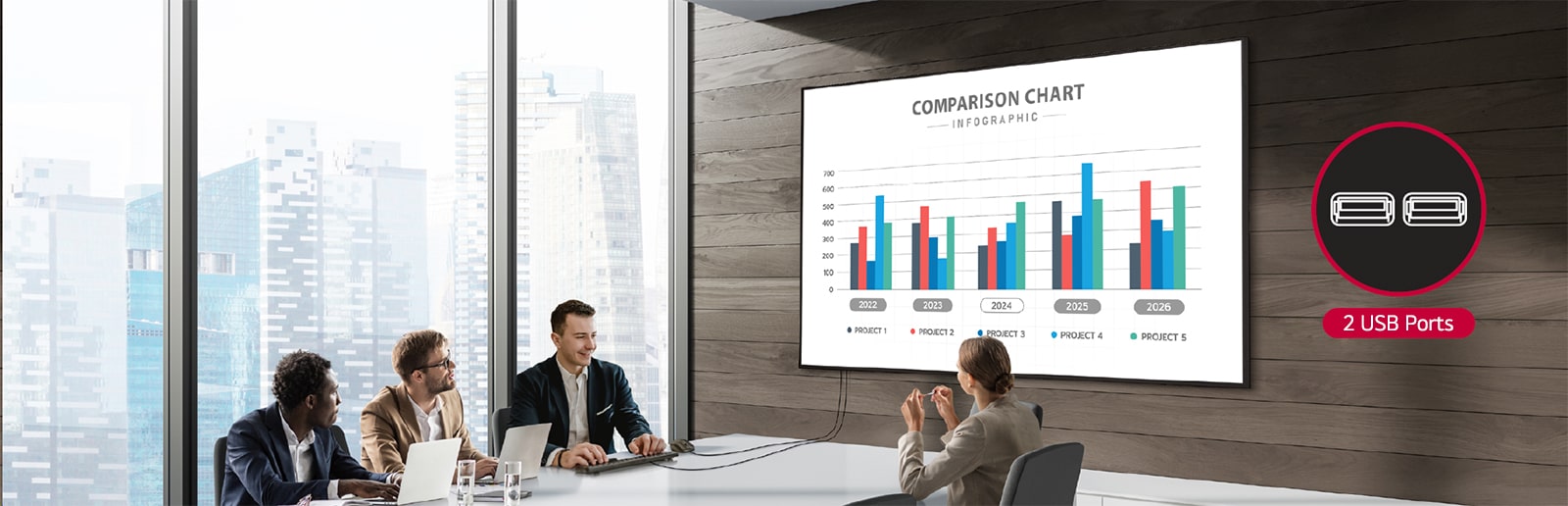

Versatile Operation with Multi-USB

With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Sturdy Design with Fire Flame Resistance

The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

Convenient webOS Platform

The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.

Enhanced Security Features

The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

PANEL

CONNECTIVITY

• Screen Size:139.7 cm (55)
• Panel Technology:ADS
• Back Light Type:Edge
• Aspect Ratio:16:9
• Native Resolution:3840 x 2160 (UHD)
• Refresh Rate:60 Hz
• Brightness:500 cd/m² (500 nits)
• Dynamic CR:1,000,000:1
• Color Gamut:BT709 95%
• Viewing Angle (H x V):178 X 178
• Color Depth (Number of Colors):1.07 G (8 bits + FRC)
• Response Time:8 ms ( G to G)
• Surface Treatment (Haze):25 %
• Operation Hours (Hours/Day):24/7
• Portait / Landscape:Yes / Yes

• HDMI In:Yes(3)
• HDMI In (HDCP Ver.):3840x2160@60 Hz, HDCP 2.2/1.4
• DP In:3840x2160@60 Hz, HDCP 2.2/1.3
• RS232C In:Yes(1), 4 pin Phone-jack
• RJ45(LAN) In:Yes(1)
• IR In:Yes(1)
• USB In:USB2.0 Type A(2)
• Audio Out:Yes(1)
• RS232C Out:Yes(1), 4 pin Phone-jack

MECHANICAL SPECIFICATION

FEATURE - HARDWARE

• Bezel Color:Black
• Bezel Width:8.9 mm ; B:12.9 mm
• Weight (Head):16.1 kg
• Packed Weight:20.5 kg
• Monitor Dimension (W × H × D):1231.4 × 707.2 × 29.7 mm
• VESA™ Standard Mount Interface:300 × 300 mm
• Carton Dimensions (W × H × D)1360 × 801 × 161 mm

• Internal Memory (eMMC):16 GB
• Wi-Fi/BT (Built-in):Yes
• Temperature Sensor:Yes
• Auto Brightness Sensor:Yes(IR)
• Acceleration (Gyro) Sensor:Yes
• Local Key Operation:Yes

FEATURE - SOFTWARE

POWER CONSUMPTION

• OS Ver. (webOS):webOS 6.0
• Local Contents Scheduling:Yes
• Group Manager:Yes
• USB Plug & Play:Yes
• Fail Over:Yes
• Booting Logo Image:Yes
• No Signal Image:Yes
• RS232C Sync:Yes
• Local Network Sync:Yes
• PIP:Yes
• PBP:Yes(4)
• Screen Share:Yes
• Video Tag:Yes(4)
• Play Via URL:Yes
• Screen Rotation:Yes
• External Input Rotation:Yes
• Gapless Playback:Yes
• Tile Mode Setting:Yes (Max. 15x15)
• Setting Data Cloning:Yes
• SNMP:Yes
• ISM Method:Yes
• Auto Set ID:Yes
• Status Mailing:Yes
• Control Manager:Yes
• Cisco Certification:Yes
• Crestron Connected:Yes
• Smart Energy Saving:Yes
• PM mode:Yes
• Wake on LAN:Yes
• Network Ready:Yes
• BEACON:Yes
• HDMI-CEC:Yes
• SI Server Setting:Yes
• webRTC:Yes
• Pro:Idiom:Yes

• Max.:240 W
• Typ.:160 W
• Power off:0.5 W
• DPM:0.5 W
• Others-BTU (British Thermal Unit):546 BTU/Hr(Typ.), 819 BTU/Hr(Max)
• Smart Energy Saving (70%):112 W


ENVIRONMENT CONDITIONS

POWER

• Operation Temperature:0 °C to 40 °C
• Operation Humidity:10 % to 80 %

• Power Supply:AC 100-240 V~, 50/60 Hz
• Power Type:Built-In Power

CERTIFICATION

SOFTWARE COMPATIBILITY

• Safety:CB / NRTL
• EMC:FCC Class "B" / CE / KC
• ERP / Energy Star:NA/Yes
• ePEAT(US only):Yes (Carbon Measured)

• SuperSign CMS:Yes
• SuperSign Control+:Yes
• SuperSign WB:Yes
• SuperSign Cloud:Yes
• Mobile CMS:Yes
• Connected Care:Yes

SOUND

• Speaker (Built-in):Yes (10 W X 2)
