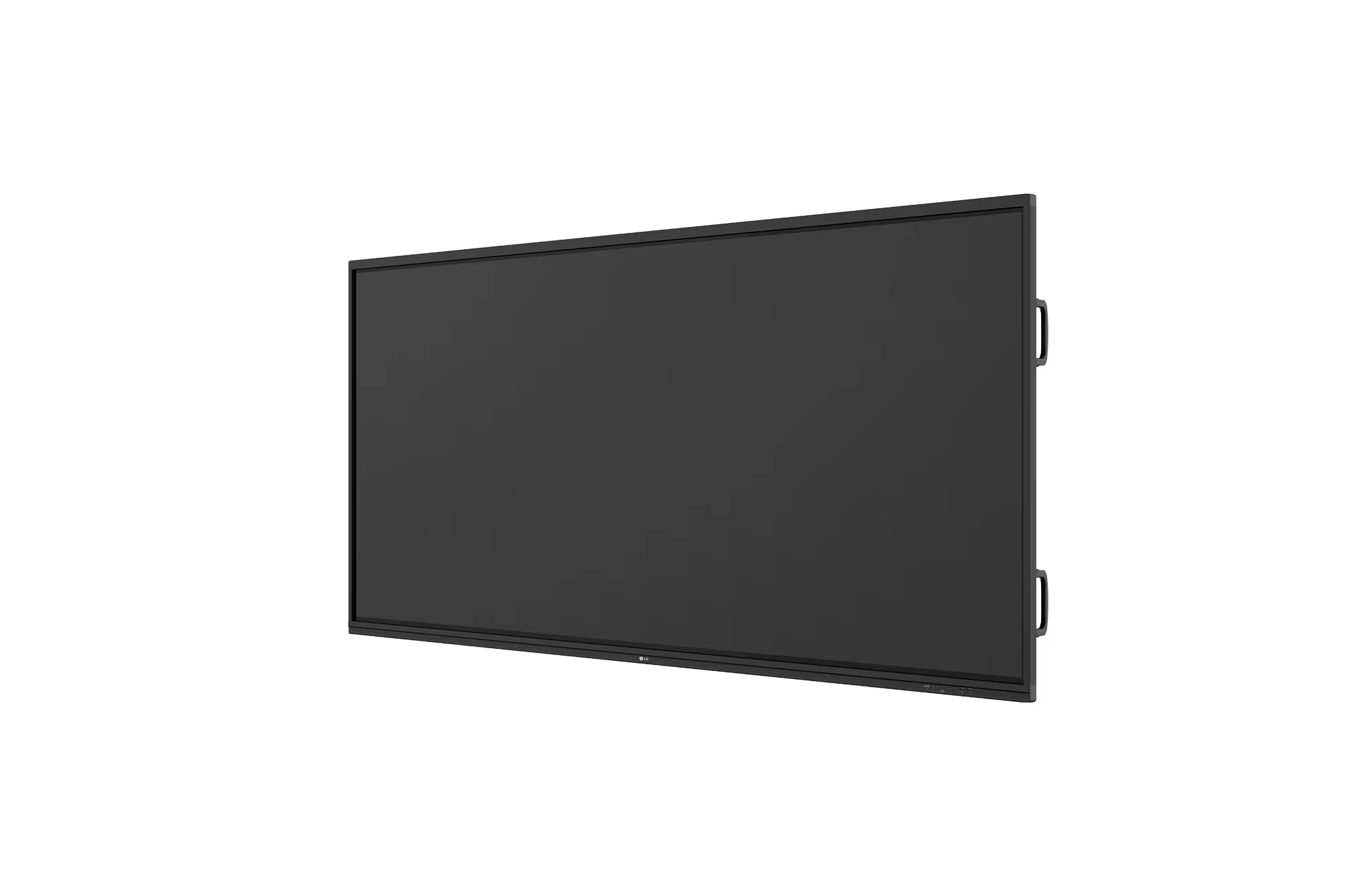

LG CreateBoard 105TR5WP-I 105-inch 5K 21:9 Interactive Display

Connect and Create with the 21:9 Widescreen

LG CreateBoard

21:9 Extended Wide Format

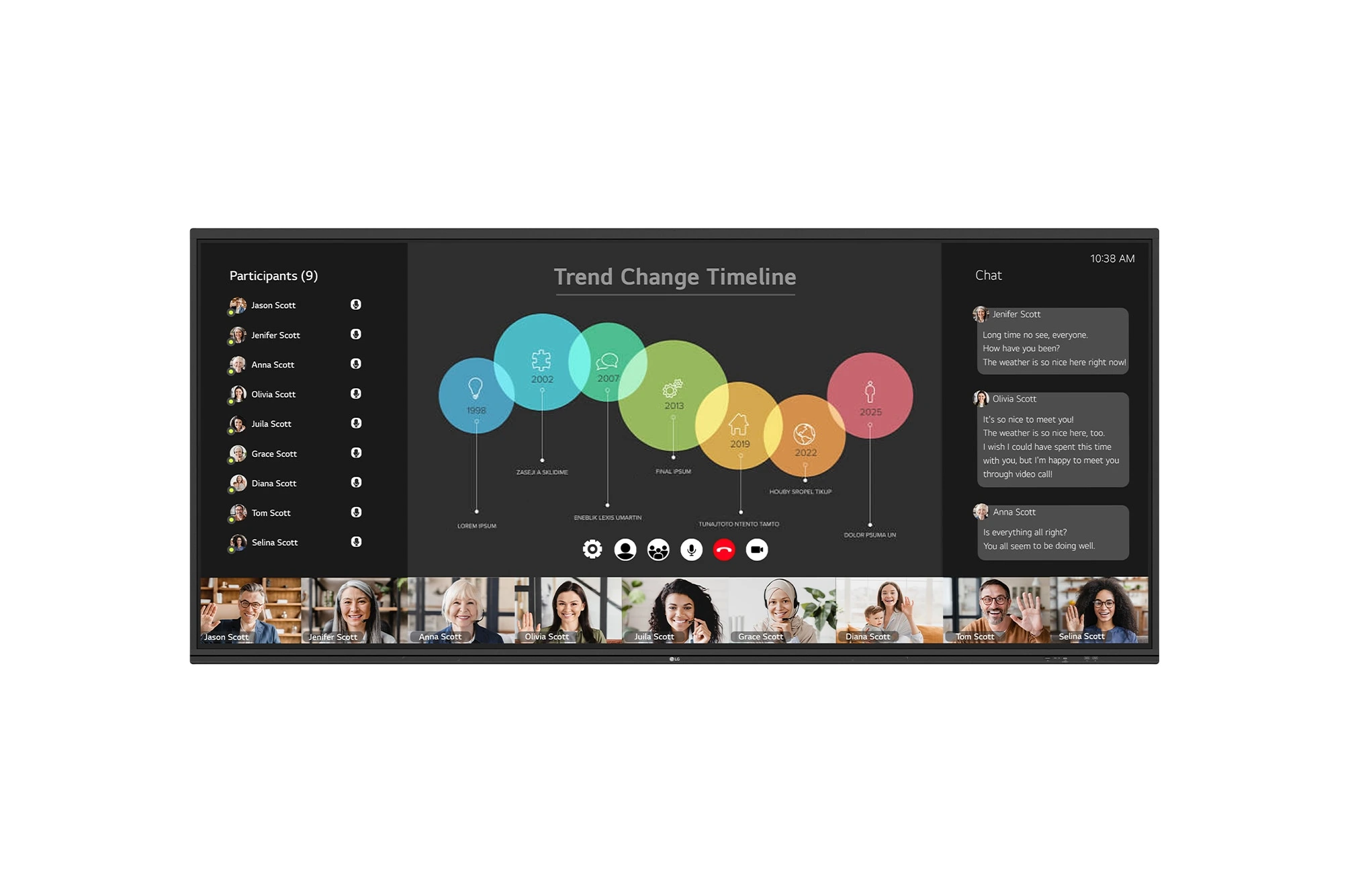

With support for a 21:9 widescreen aspect ratio, the TR5WP provides an immersive viewing experience with a wider screen than a 16:9 display. This screen specialization helps display 21:9 content, including widescreen videoconferencing platforms, with natural details.

LG CreateBoard Lab

LG’s proprietary whiteboarding software

Tools for Fluid Discussion

A variety of tools such as a calculator, clock, and sticky note are available to facilitate smooth discussions and ensure seamless idea sharing and communication. Also, users can personalize the menu bar with their most frequently used tools, thereby improving their work efficiency.

Web Browser

When you need a reference during a discussion, you can access various online information in real time with the simple click of a web browser. The necessary information found on the internet can be easily dragged and dropped into the material you’re creating, enhancing the productivity of your meetings.

Multi-OS Support

LG CreateBoard Lab offers multi-OS support, allowing users to utilize it not only with LG CreateBoard but also with other devices. This enables users to maintain a seamless experience on tablets, laptops, and various other devices, even outside the classroom.
* Certain features may not be supported depending on the operating system.
* LG CreateBoard Lab is compatible with Android, Windows, Chrome, and the Web.

LG CreateBoard Share

LG CreateBoard Share offers a wireless screen sharing feature, providing users with a flexible discussion environment. Users can share their screen from their own PC, tablet, or smartphone, simplifying the process of sharing and collaborating on team projects or presentation materials.
* LG CreateBoard also supports app-less sharing for PC, tablet, or smartphone (via website) within the same network.
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).
* LG CreateBoard Share app is compatible with Android 5.1 and higher, iOS 12.0 and higher, and MacOS 11.0 and higher.

Wireless ScreenShare Feature for Seamless Sharing Environment

LG CreateBoard Share establishes a seamless and stable meeting room without the need for extra cables or connections. Presenters can now share their screens without the need to inconveniently move around and unplug and plug cables each time the presenter changes. With the capability to share up to 9 screens in real-time, it’s possible to display multiple people’s materials simultaneously when needed, thereby enhancing the efficiency of collaboration.

PANEL

FEATURE - SOFTWARE

• Aspect Ratio:21:9
• Back Light Type:Direct
• Brightness:400 cd/m² (nits) with glass
• Color Gamut:72 % (NTSC)
• Contrast Ratio:4,000:1
• Dynamic CR:5,000:1
• Life time:50,000 Hrs (Min.)
• Native Resolution:5120 x 2160 (5K)
• Operation Hours (Hours/Day):16/7
• Panel Technology:VA
• Portait / Landscape:No / Yes
• Refresh Rate:60 Hz
• Response Time:6.5 ms (Typ.)
• Screen Size:266.7 cm (105)
• Surface Treatment (Haze):25 %
• Transparency:5.5 %
• Viewing Angle (H x V):178 X 178
• Color Depth (Number of Colors):10 bit (1.07B)

• Booting Logo Image:Yes
• Crestron Connected:Yes
• HDMI-CEC:Yes
• Network Ready:Yes (Fast Power On)
• OS Ver. (webOS):Android13
• PBP:Yes
• PIP:Yes (1) external source
• RS232C Sync:Yes
• Screen Share:Yes (CreateBoard Share)
• Smart Energy Saving:Yes (Energy Saving)
• Wake on LAN:Yes


MECHANICAL SPECIFICATION

CONNECTIVITY

• VESA™ Standard Mount Interface (mm):1000 x 600
• Bezel Color:Black
• Bezel Width:T/R/L/B : 27.8/17.4/17.4/39.2 mm
• Carton Dimensions (W x H x D, mm):2668 ×1305 × 280
• Handle:4 Handle
• Monitor Dimension (W x H x D, mm):2510.7 × 1129.9 × 91.7
• Packed Weight:123.95 kg
• Weight (Head):84.6 kg

• RJ45(LAN) In:Yes (1)
• Audio In:Yes (1)
• Audio Out:Yes (1), Optical Yes (1, SPDIF)
• DP In:Yes (1), HDCP1.4&2.3
• HDMI In:Yes (4), HDCP2.3
• HDMI Out:Yes (1)
• RJ45(LAN) Out:Yes (1)
• RS232C In:Yes (1)
• Touch USB:Yes (3)
• USB In:USB3.0 Type A (6), USB2.0 Type A (1), USB Type C (2)


CERTIFICATION

FEATURE - HARDWARE

• ERP / Energy Star:Yes / Yes
• EMC:FCC Class "A" / CE / KC
• Safety:IEC 62368-1:2018; UL 62368-1:2019

• Wi-Fi/BT (Built-in):Yes (Slot type)
• Auto Brightness Sensor:Yes
• Internal Memory (eMMC):64 GB
• Local Key Operation:Yes
• Power Indicator:Yes

SOFTWARE COMPATIBILITY

SOUND

• Connected Care:Yes

• Speaker (Built-in):Yes (20 W x 2 + 20 W)

POWER CONSUMPTION

POWER

• Max:measured: 560 W
• Power off:0.5 W
• Smart Energy Saving (70%):Yes
• Typ:measured: 315 W

• Power Supply:AC 100-240 V~, 50/60 Hz
• Power Type:Built-In Power

OPS COMPATIBILITY

LANGUAGE

• OPS Type compatible:Yes
• OPS Power Built-in:Yes

• OSD:English, Simplified Chinese, Czech, Denmark, Arabic (Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands (Dutch), Norwegian, Polski, Portugues (Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese,Estonian, Lithunian


ACCESSORY

• Basic:Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, USB Type-C Cable (C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller (include battery 2 ea), Wifi module
