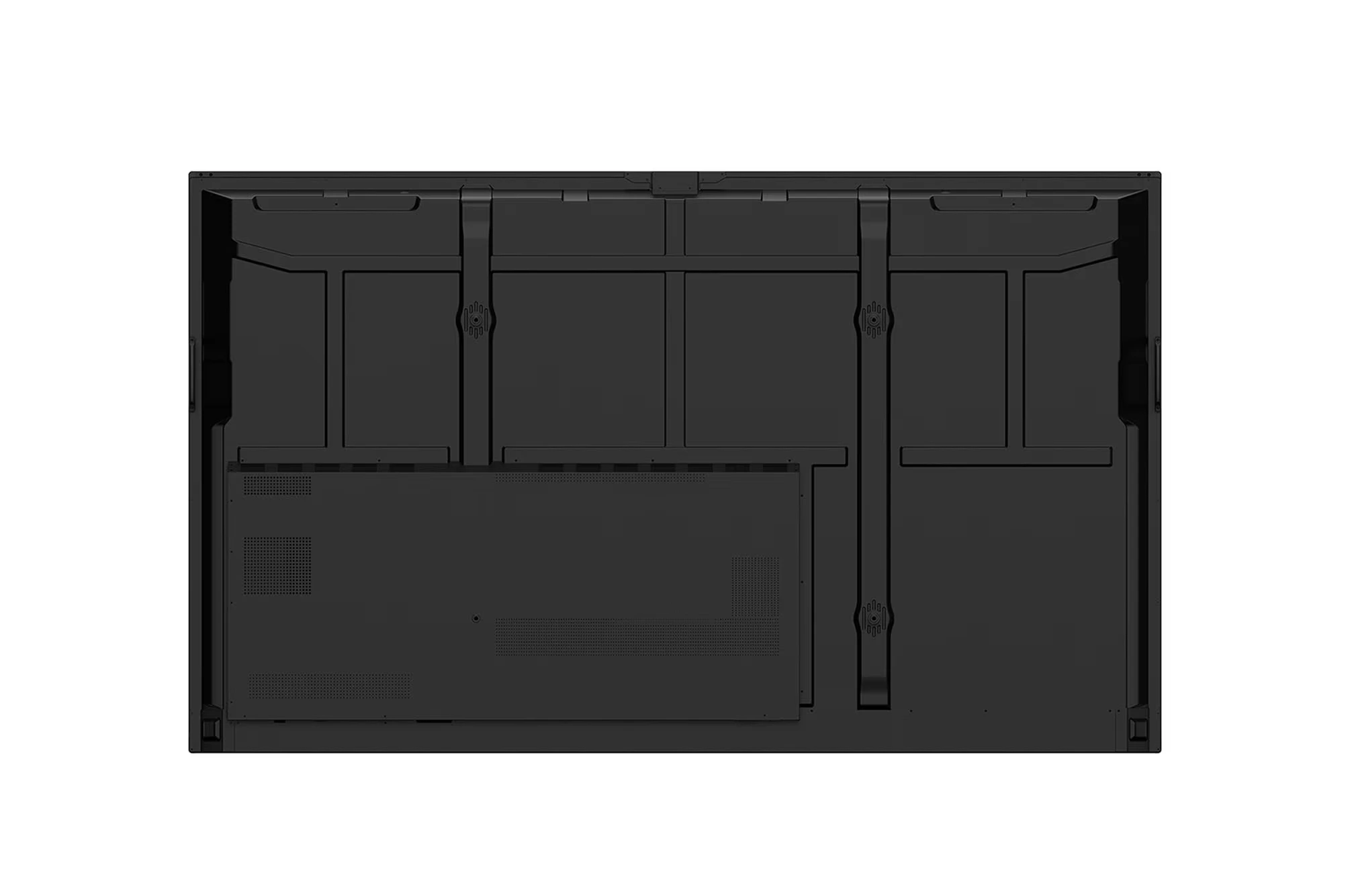

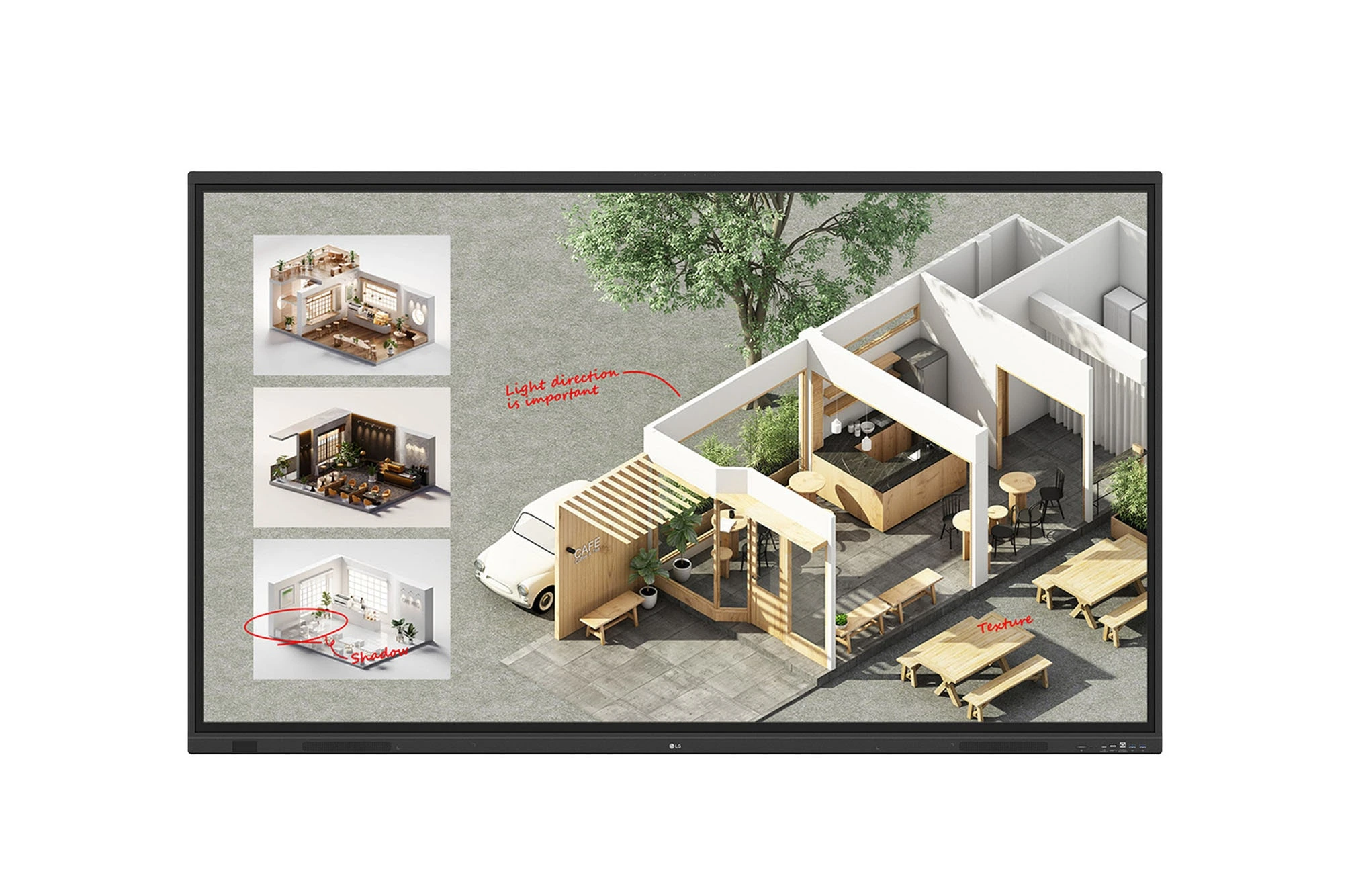

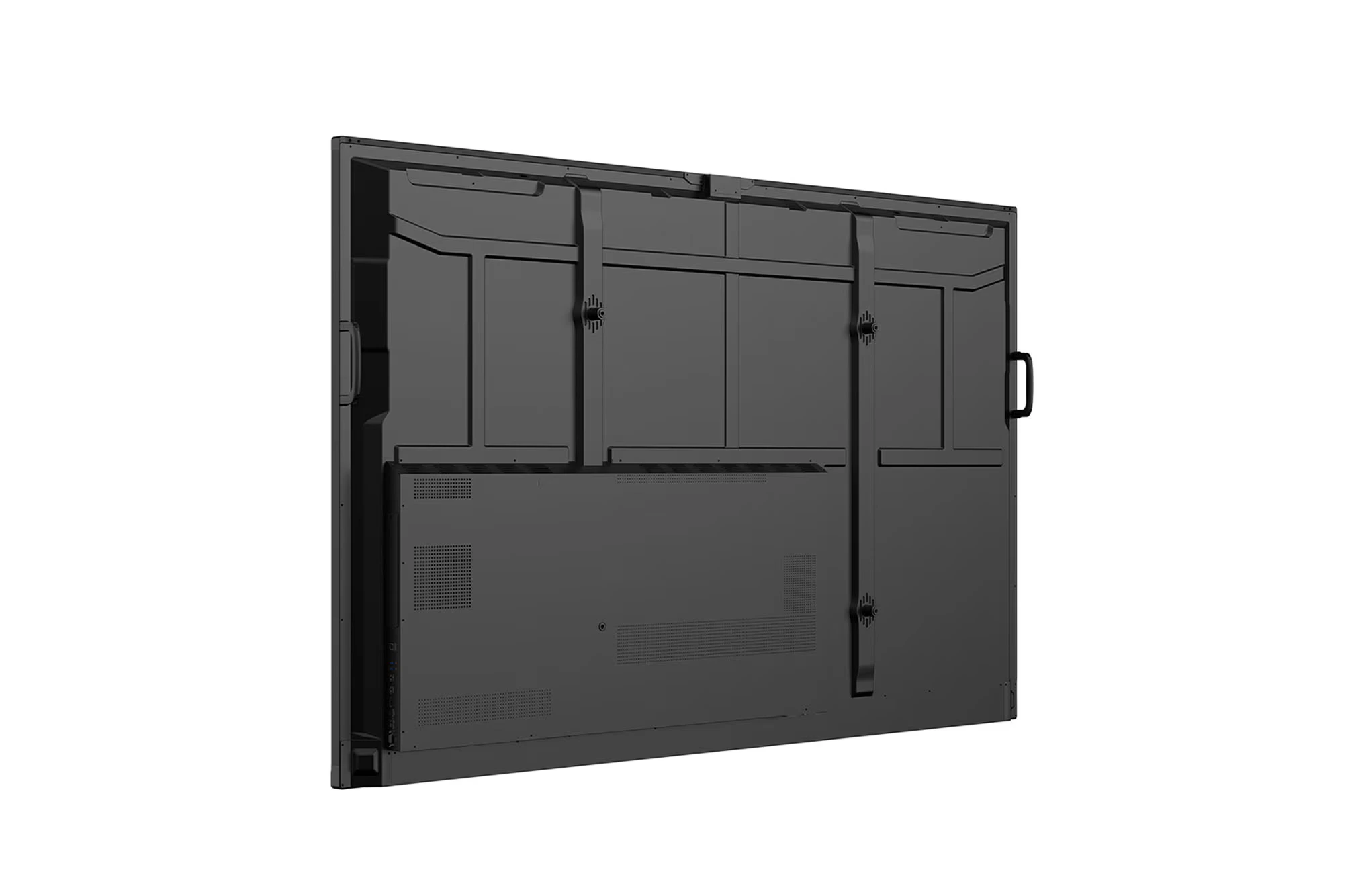

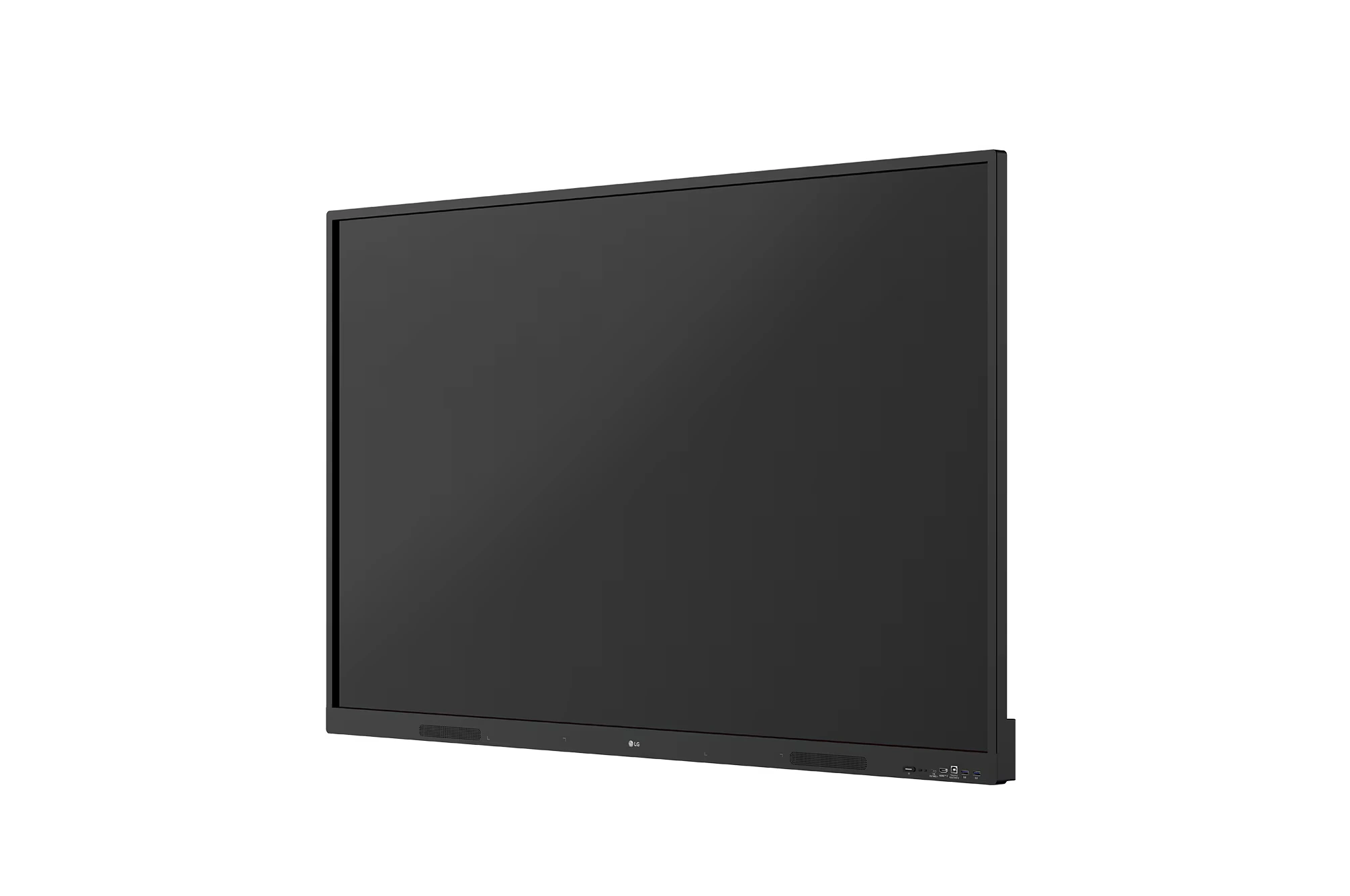

LG CreateBoard Standard 86TR3DQ-I 86-inch 4K UHD Interactive Flat Panel Display

Innovate, Collaborate, and Create with
Seamless Technology, LG CreateBoard

Creative Whiteboard Solution

LG CreateBoard offers a lifelike touch experience, allowing users to interact with content directly on the board. You can write, draw, zoom, and rotate using just your fingers, making it an effective tool for creative projects or presentations. Additionally, LG CreateBoard enables screen and content sharing, making it an excellent tool for seamless collaboration even with remote team members.

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and tools such as a ruler, table, and sticky note, fostering active student participation and facilitating intuitive lessons.

Easy to Save / Import / Export

LG CreateBoard incorporates straightforward import and export features. Resources can be saved and directly imported to and from Google Drive or OneDrive. After meetings, you can directly send emails to share materials, or scan a QR code to transfer them to your personal device.

LG CreateBoard Lab

LG’s proprietary whiteboarding software

LG CreateBoard Share

LG CreateBoard Share* offers a wireless screen sharing feature, providing users with a flexible discussion environment. Users can share their screen from their own PC, tablet, or smartphone, simplifying the process of sharing and collaborating on team projects or presentation materials.

Wireless ScreenShare Feature for Seamless Meeting Environment

LG CreateBoard Share establishes a seamless and stable meeting room without the need for extra cables or connections. Presenters can now share their screens without the need to inconveniently move around and unplug and plug cables each time the presenter changes. With the capability to share up to 9 screens in real-time, it’s possible to display multiple people’s materials simultaneously when needed, thereby enhancing the efficiency of collaboration.

Presentation Convenience and Flexibility in Meeting Room

Wireless screen sharing empowers presenters to navigate freely within a meeting room, unencumbered by cables. This feature enables them to seamlessly control their presentations directly from their own devices. In addition, they can conveniently send photos and videos stored on their personal devices, enhancing the fluidity and richness of their presentations.

Presentation Convenience and Flexibility in Classroom

In the classroom, the lecturer or presenter doesn’t need to conduct the lesson near the LG CreateBoard, but can flexibly conduct the lesson from anywhere in the classroom. This promotes a more flexible classroom environment and can help keep students more focused.

PANEL

CONNECTIVITY

• Screen Size:217 cm (86)
• Panel Technology:IPS
• Back Light Type:Direct
• Aspect Ratio:16:9
• Native Resolution:3840 x 2160 (UHD)
• Refresh Rate:60 Hz
• Brightness:450 cd/m² (nits)
• Contrast Ratio:1200:1
• Dynamic CR:5000:1
• Color Gamut:NTSC 72%
• Viewing Angle (H x V):178 x 178
• Color Depth (Number of Colors):10 bit (8 bit + FRC)
• Response Time:8 ms
• Surface Treatment (Haze):25%
• Life time:50,000 Hrs (L50, Min.)
• Operation Hours (Hours/Day):16 / 7
• Portait / Landscape:X / Yes

• HDMI In:Yes (3, Front1 / Back2)
• DP In:Yes (1)
• RGB In:Yes (1, VGA)
• Audio In:Yes (1)
• RS232C In:Yes (1)
• RJ45(LAN) In:Yes (1)
• USB In:USB3.0 Type A (5) - Front2 / Back2 / Top1 USB2.0 Type A (1), USB Type-C (2, For the front 1, PD 65 W without OPS / DP - Alt ) - Front1 / Back1
• HDMI Out:Yes (1)
• Audio Out:Yes (1), Optical O (1, SPDIF)
• Touch USB:Yes (3, Front1 / Back2)
• RJ45(LAN) Out:Yes (1)


MECHANICAL SPECIFICATION

FEATURE - HARDWARE

• Bezel Color:Black
• Bezel Width:T / R / L / B ：25.6 / 15 / 15 / 43.5 (mm)
• Weight (Head):54.1 kg
• Packed Weight:70.7 kg
• Monitor Dimension (W x H x D, mm):1957 × 1170.8 × 99.7
• Carton Dimensions (W x H x D, mm):2110 × 1291 × 225
• Handle:Yes
• VESA™ Standard Mount Interface (mm):800 x 600

• Internal Memory (eMMC):64 GB
• Wi-Fi/BT (Built-in):Yes (Slot type)
• Auto Brightness Sensor:Yes
• Power Indicator:Yes
• Microphone (Built-in):8


ACCESSORY

FEATURE - SOFTWARE

• Basic:Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, USB Type-C Cable (C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module
• Optional:WIB9060H

• OS Ver. (webOS):Android14 (EDLA)
• Booting Logo Image:No
• RS232C Sync:Yes (LG RS232C Command)
• PIP:Yes (1) external source
• PBP:Yes (1) External Source
• Screen Share:Yes (CreateBoard Share)
• Setting Data Cloning:Yes
• Crestron Connected:Yes
• Smart Energy Saving:Yes (Energy Saving)
• Wake on LAN:Yes
• Network Ready:Yes (Fast Power On)
• HDMI-CEC:Yes
• webRTC:Yes (CreateBoard Share website mirr used WebRTC)


ENVIRONMENT CONDITIONS

LANGUAGE

• Operation Temperature:0 ℃ to 40 ℃
• Operation Humidity:10 % to 90 %

• OSD:English, Simplified Chinese, Czech, Denmark, Arabic (Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands (Dutch), Norwegian, Polski, Portugues (Europe), Portugues (Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese,Estonian, Lithunian


SOUND

POWER CONSUMPTION

• Speaker (Built-in):Yes (20 W x 2 Speaker + 20 W Subwoofer)

• Typ:235 W (measured: 215 W)
• Max:400 W (measured: 370 W)
• DPM:0.5 W
• Power off:＜0.5 W
• Others-BTU (British Thermal Unit):802 BTU/Hr (Typ.), 1365 BTU/Hr (Max.)


CERTIFICATION

PROTECTION GLASS

• Safety:IEC 62368 - 1:2018; UL 62368 - 1:2019
• EMC:FCC Class "A" / CE / KC
• ERP / Energy Star:Yes / Yes

• Thickness:3.2
• Tempered / Chemical strengthening:Yes
• Anti-Reflective:Yes
• Shatter-Proof:Yes

SOFTWARE COMPATIBILITY

POWER

• Connected Care:Yes

• Power Supply:AC 100 - 240 V ~, 50 / 60 Hz
• Power Type:Built-In Power

OPS COMPATIBILITY

DEDICATED FEATURE - TOUCH

• OPS Type compatible:Yes (Slot)
• OPS Power Built-in:Yes

• Available Object Size for Touch:Ø2 (mm) ↑
• Accuracy (Typ.):±1 (mm)
• Interface:USB 2.0
• Protection Glass Thickness:3.2 (mm) (Anti-Glare)
• Protection Glass Transmission:88% (Typ.)
• Operating System Support:Windows 10/ Windows 8/ Windows 7/ Android/ Linux/ macOS (Linux/ macOS 1 Point)
• Multi Touch Point:Max 50 Point


DEDICATED FEATURE - CREATE BOARD

SPECIAL FEATURE

• CPU:Octa core A73 x 4 + A53 x 4 (A311D2)
• GPU:Mali-G52 MP8
• Memory(RAM):8 GB
• Storage:64 GB
• Wi-Fi:WiFi 6E
• LAN:Gigabit LAN
• Bluetooth:Bluetooth 5.3
• OS ver. (Android):Android 14 (EDLA)

• Overlay Touch Compatibility:Yes
• Conformal Coating (Power Board):Yes
• Power Protection:Yes
