Logitech MeetUp 2 Video Conference Bar

MeetUp 2

Upgrade your small meeting rooms with MeetUp 2 and simplify the meeting experience for everyone.

Unlock the potential of AI in your BYOD and PC-based small rooms

Upgrade your small meeting rooms with MeetUp 2, a video bar that simplifies the meeting experience for employees and IT. MeetUp 2 brings a simple setup, advanced AI-enabled audio and video features, and easy remote management to PC and BYOD-based deployments.

AI-ENHANCED MEETINGS

Unlock AI video and audio features through the built-in CollabOS operating system. Additionally, users can experience integrations with Microsoft, Zoom, and Google for a more intelligent meeting experience.

RightSight 2

ONE MOUNT, THREE WAYS

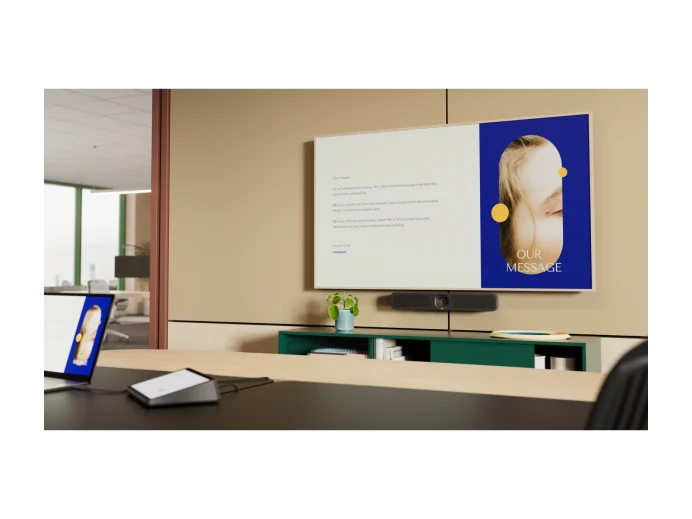

Achieve flexible placements and simple installations with the included multi-mount and attach MeetUp 2 to a display, table, or wall. Plus, there is a built-in threaded insert so it is compatible with tripods.

AN EVEN BETTER BYOD EXPERIENCE

Single-Cable BYOD

Use the optional accessory, Active USB Cable, to leverage DisplayPort Alt Mode and experience single-cable simplicity for BYOD-only deployments. Drivers, dongles, and multiple cables are not required.

Digital Signage

Display information on monitors in your rooms by enabling digital signage with Logitech Sync, Appspace, and other platforms*.

Remotely Manage

Quickly connect MeetUp 2 to your network and unlock remote management capabilities via the ethernet or through Wi-Fi connection.

WORKS WITH YOUR PREFERRED PLATFORM

Leverage the video conferencing platforms and features you already use. MeetUp 2 works with leading video platforms like Microsoft Teams, Zoom, and Google Meet*.

Dimensions

• Height: 73.3 mm
• Width: 469.2 mm
• Depth: 73 mm
• Weight: 1.8 kg

• Overview:Built-in Components
  6 DMIC microphone array
  Digital PTZ camera
  1 full range ported speaker
  Cable management & retention system
  Multi-mount
  Logitech CollabOS platform
  Logitech RightSight 2
  Logitech RightSound 2

General

Camera

• Enclosure: All-in-one enclosure
• Device Management: Logitech Sync
• Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
• Display Resolution: 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
• RoomMate Compatibility: Not compatible with Logitech RoomMate,
• MeetUp 2 can be deployed in PC and BYOD mode only.

• Digital pan: ±48° at 4x zoom
• Digital Tilt: ±32° at 4x zoom
• Zoom: 4X HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80°
• Resolution: 4K

Speakers

Microphones

• Driver: 55 mm with bass reflex enclosure and patented suspension design
• Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
• Rated Power: 8W THD at 1W, 1kHz : <2%
• Speaker Sampling Rate: 48KHz
• Impedance: 4 Ohms

• Frequency Response: 90Hz – 16kHz
• Sensitivity: -36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48 kHz
• Pickup Range: Up to 7m
• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm

Interfaces

Power and Cables

• HDMI Out: 1
• HDMI In: 1
• USB: 1 x Type C USB 3.1
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac/ax
• Bluetooth: Bluetooth® Low Energy

• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 2.1A
• Power Supply Dimensions: 114 x 47 mm x 32.3 mm
• DC Cable: 3 m
• USB C to USB C 2.0 Cable: 3 m

Environmental

Security

• Operating temperature: 0 to 40°C
• Storage temperature: -25-70°C
• Humidity: 10 to 90%

• File Based Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP
• Physical Security: Kensington security slot

Warranty Information

Compatibility

• 2-Year Limited Hardware Warranty
• 1-Year and 3-Year Extended Warranty available for purchase

• Windows 10 and higher
• macOS: two most recent versions
• Network Connection: wired or wireless

In the Box

• All-in-one MeetUp 2 with multi-function mount
  Power supply with region-specific plugs
  USB-C to USB-C 2.0 cable that is 3 m
  2 wall anchors and 2 screws
  Quick start guide printed on the box
