Logitech Rally Plus – Video Conferencing System

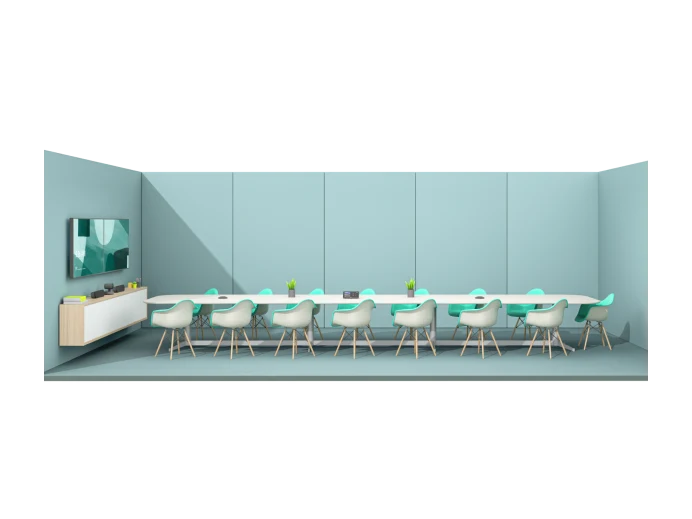

MODULAR VIDEO CONFERENCING SYSTEM FOR LARGE AND EXTRA LARGE ROOMS

Ensure everyone is seen and heard in every video call with Logitech Rally Plus. Rally Plus sets the standard for USB-connected conference camera systems in large rooms, uniting premium design and materials with unmatched audio and video performance.

Rally Family

Simple and flexible video conferencing in every room

Part Number

Dimensions

• Rally Plus : 960-001275
• Rally System : 960-001238

• Rally Camera
  Height: 182.5 mm
  Width: 152 mm
  Depth: 152 mm
• Rally Speaker
  Height: 103 mm
  Width: 449 mm
  Depth: 80 mm
• Rally Mic Pod
  Height: 21 mm
  Width: 102 mm
  Depth: 102 mm
• Rally Display Hub
  Height: 40 mm
  Width: 206 mm
  Depth: 179 mm
• Rally Table Hub
  Height: 40 mm
  Width: 176 mm
  Depth: 138 mm

Technical

RightSight

• RIGHTSENSE TECHNOLOGIES
  RightLight with WDR:Low-light compensation
  Video noise reduction
  Low-light saturation optimization
  Renders natural skin tones for each participant on camera
  Reduces backlighting and glare without darkening the entire image.

• Human figure detection
  Auto-frame participants at meeting start
  Auto-frame participants on-demand
  Auto-reframe participants during meetings

RightSound

RightSound Mic Matrix

• Machine learning AI trained to distinguish human speech from other sounds
  AEC (Acoustic Echo Cancellation)
  VAD (Voice Activity Detector)
  Background noise suppression
  Auto-level loud and soft voices

• Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
  Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
  Beam focus refresh rate: 8ms (125 times/second)

Anti-Vibration Suspension

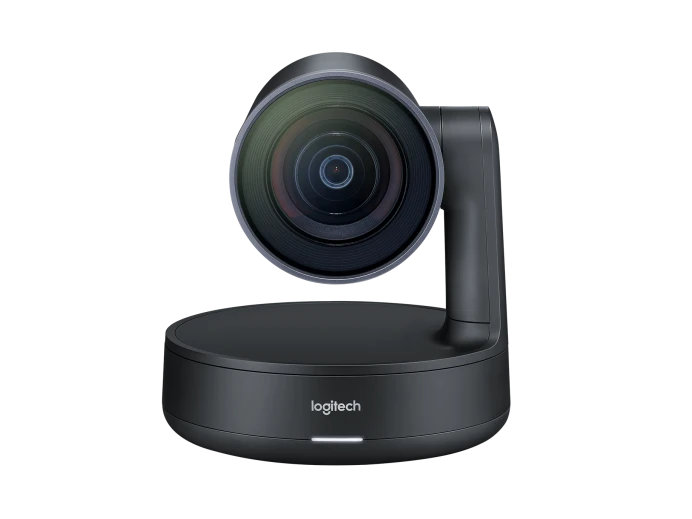

Rally Camera

• A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
  Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

• Zoom: 15x HD zoom (5x optical + 3x digital)
• Pan: 180° (±90°)
• Tilt: 140° (+50° / -90°)
• Field of View
• Diagonal: 90°
• Horizontal: 82°
• Vertical: 52°
• Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
• Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
• Resolutions @ 60fps: 1080p, 720p
• RightLight Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
• Privacy: Lens parks at -90° in sleep mode for assured privacy

Rally Mic Pod

Rally Speaker

• Pickup Range: 7 m diameter
  Four omnidirectional microphones forming eight acoustic beams
• AEC: Acoustic Echo Cancellation
• VAD: Voice Activity Detector
  Background noise suppression
  Mute button with LED status indicator
  Captive 2.95 m 12-pin cable
  Daisy chain up to 7 Rally Mic Pods
• Frequency Response: 90Hz – 16kHz
• Sensitivity: >-27 dB +/-1dB @ 1Pa
  Microphone data rate: 48 kHz
  Recommended # of participants
• Rally (one Mic Pod): 16
• Rally Plus (two Mic Pods): 16
• Additional participants per Mic Pod: 6
• Recommended participants for Rally with 7 Mic Pods: 46

• High-performance 76 mm driver with rare-earth magnet
  Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
  Mini XLR cable connects to Rally Display Hub for both signal and power
  Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
• Sensitivity: 95+/-2 dB SPL at ½ meter
• Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
• Sampling rate: 48 kHz

Rally Table Hub

Rally Display Hub

• Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m
  Hub 5 m cable included, supports customer-supplied cables up to 50 m
• Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
  12 Pin connector for Rally Mic Pod
  HDMI Type A passthrough to Display Hub (x2)
  USB Type C
  USB Type A (reserved for future capability)
  USB Type B (connects to meeting room computer)
  RJ45 (reserved for future capability)
  Power input

• HDMI Type A: (x2) (connects to displays)
  USB C (connects to Rally Camera)
  USB Type B (connects to meeting room computer)
• RJ45: connects to Table Hub
• Mini XLR: x2
  Powers one or two Rally Speakers
  Power input
• Remote Control
  RF remote control (line of sight not required)
  CR2032 batteries (included)


Cables / Power

AVAILABLE ACCESSORIES

• Camera to Display Hub:
  2 m USB 3.1 Type C to USB Type C 3.1
  Conference Room Computer to Display or Table Hub
• 2 m USB 3.1 Type A to USB Type B
• Display Hub to Table Hub
  5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
• Display Hub to Speaker (x2)
  2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
• Conference Room Computer to Displays (x2)
  2 m HDMI A
• Mic Pod
  2.95 m: Hardwired with 12 pin connector
• Power Outlets to Power Supplies (x2): 1 m
  1 m
• Power Supplies to Table Hub / Display Hub (x2)
  1.5 m

• RALLY MOUNTING KIT
  Rally Mounting Kit with cable retainers: (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)
  Rally Mic Pod
  Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms
  MIC POD MOUNT
  Anchors mics and hides cables for a finished look
  Rally Mic Pod Hub
  Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling
  Rally Speaker
  Add a second Rally Speaker for larger rooms

Certifications and Compatibility

Appliance Mode

• Plug-and-play USB connectivity
  For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications

• Supports compatible video conferencing software in appliance mode when deployed with Logitech RoomMate.


Warranty Information

Compatibility

• 2-Year Limited Hardware Warranty

• Operating Systems
  Windows 7, 8.1 or Windows 10
  macOS: 10.10 or higher
  ChromeOS
• Resolutions higher than 1080p
  Windows 8.1 or higher or macOS 10.10 or higher
  USB 3.0 port
  Compatible software

In the Box

• Logitech Rally:
  Rally Camera
  Rally Display Hub
  Rally Table Hub
  Rally Speaker (x1)
  Rally Mic Pod (x1)
  Remote control
  USB Type C to USB Type C
  USB Type A to USB Type B
  CAT6A Ethernet cable
  HDMI Type A (x2)
  A/C cables (x2)
  Power Supplies (x2)
  Documentation
  Logitech Rally Plus:
  Rally Camera
  Rally Display Hub
  Rally Table Hub
  Rally Speaker (x2)
  Rally Mic Pod (x2)
  Remote control
  USB Type C to USB Type C
  USB Type A to USB Type B
  CAT6A Ethernet cable
  HDMI Type A (x2)
  A/C cables (x2)
  Power Supplies (x2)
  Documentation
