Neat Board 50 Microsoft Teams Rooms

Neat Board 50

All-in-one touchscreen for small spaces and huddle roomsAll-in-one touchscreen for small spaces and huddle rooms.

More on the mark

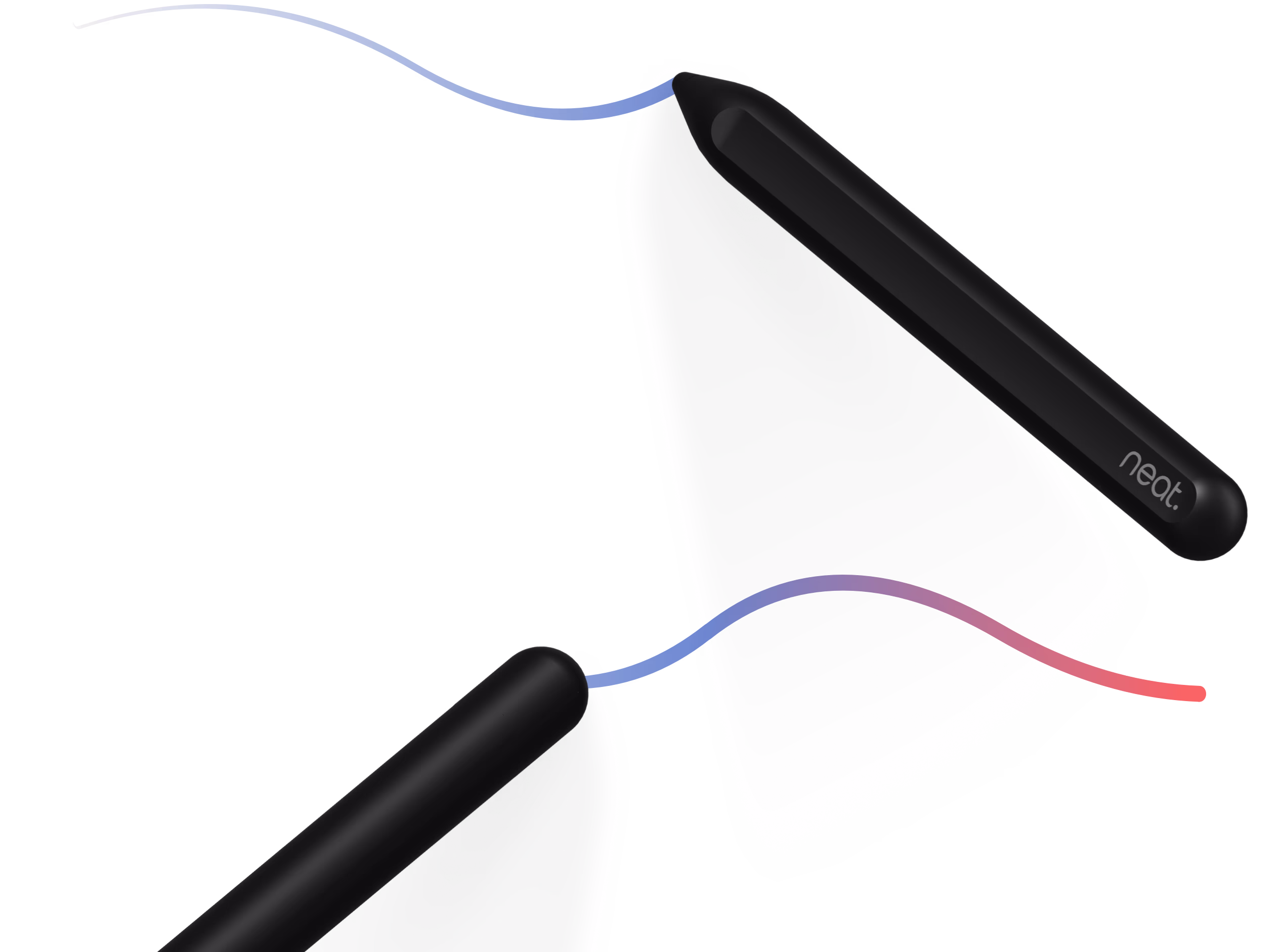

Neat Board 50 comes with Neat Active Marker for the perfect amount of friction and immediate response to write, markup or sketch as you naturally would, helping infuse more personality into your creative workshops or presentations. No pairing or charging is required.

Power to your people

Everything about Neat Board 50 is simple, yet it houses some seriously potent tech under its sleek exterior. Delivering exceptional power and performance, Neat Board 50 breathes new life into your video meetings by enabling conversations to flow naturally, even in the liveliest surroundings.

See all the details

Neat Board 50 features a 4k 50" multi-touch LCD screen. It brings your work and the people you work with to life by precisely directing light and color. In addition, anti-glare and anti-fingerprint coatings ensure excellent readability and a natural touch-screen experience.

Nobody misses a thing

The custom-built 50-megapixel camera with 113 degrees horizontal field of view and lightning-fast image processing can capture an entire room, detecting, enlarging and following each participant, whether sitting, standing or moving around, so those who are remote don't miss a thing.

Clear vocals. No unwanted noise

Neat Board 50 has a 5-microphone end-fire array, five additional sensor microphones and advanced algorithms for voice enhancement, deep noise suppression and dereverberation. As a result, it superbly filters out any unwanted noise to deliver clear and intelligible audio, even in the most acoustically challenging environments.

Music to everyone's ears

The sound system's dual speakers with opposing drivers cancel out vibration and deliver minimal distortion so that you hear people's voices as naturally as possible, providing a rich and rewarding listening experience.

Room for more.

Whether you're meeting or collaborating one-on-one, in small groups or hosting large gatherings, Neat Board 50 gives you considerable flexibility. It has an HDMI output for a dual-screen setup with an additional display or projector. Alternatively, you can combine two Neat Board 50s to power an extra screen or have your own device run the show through a single USB‑C and touchback.

General

Audio

• 50-inch capacitive multi-touch LCD screen
  Ultra HD 4K (3840 x 2160 screen resolution)
  16:9 aspect ratio
  Anti-glare and anti-fingerprint coating
  Glass surface hardness 7H
  USB-C 90W Power delivery
  Support for 2nd display
  Camera LED
  System LED
  Ambient light sensor
  Sensors for temperature, humidity and air quality (*)
  Neat Active Marker
  Table stand
  Adaptive stand (optional)
  Adaptive mount (optional)
  Wall mount (optional)
  Neat Pad controller (optional)
  Neat Pad scheduling display (optional)


• 82dB with minimal distortion
  Opposing drivers for vibration cancellation
  5 sensor mics
  5 microphones angled in an end-fire array
  Hardware-accelerated audio processing (NAP)
  Beamforming
  Echo cancellation
  Noise suppression
  Automatic gain control
  Dereverberation


Video

Electrical and environmental requirements

• 4x digital zoom
  Fixed lens, infinite focus
  F-value: 2.8
  50 MP capture resolution
  113 degrees horizontal field of view
  Automatic people framing
  Hardware accelerated video encode and decode
  Distortion correction
  Noise reduction
  Chromatic aberration correction
  Automatic white balance and color correction
  Content video resolution: Up to 720p / 60, 1080p / 60 or 4k / 30


• 100-240V ~ 50/60Hz 3.5A
  Ambient operating temperature: 32° to 95° F (0° - 35° C)
  Storage temperature: -4° to 140° F (-20° to 60° C)
  Relative humidity: 10% to 90%
  Built-in power supply
  Power consumption
  Idle: 92W
  Idle screen off: 10,6W
  In call: 97-104W

Size and weight

Networking and ports

• Table stand
  Width: 44.8 inches (1138 mm)
  Height: 29.3 inches (745 mm)
  Depth: 10.3 inches (261 mm)
  Weight: 52 pounds (23.5 kg)
  Net weight of table stand: 2 pounds (0.9 kg)

• WiFi 6
  Bluetooth for Proximity Join in Microsoft Teams
  AC Power (internal power supply)
  Ethernet
  USB-C (support DP Alt Mode for sharing and BYOD mode)
  HDMI-in for screen sharing
  HDMI-out for dual screen setup

Wall mount (optional)

Adaptive mount (optional)

• Width: 44.8 inches (1138 mm)
  Height: 28.2 inches (716 mm)
  Depth: 3.6 inches (92 mm)
  Weight: 59.5 pounds (27 kg)
  Net weight of wall mount: 9.7 pounds (4.4 kg)

• Width: 44.8 inches (1138 mm)
  Height: 28.2 inches (716 mm)
  Depth: 3.8 inches (96 mm)
  Weight: 71.9 pounds (32.6 kg)
  Net weight of adaptive mount: 22.0 pounds (10 kg)

Adaptive stand (optional)

Neat Active Marker

• Width: 44.8 inches (1138 mm)
  Height min: 68.8 inches (1747 mm)
  Height max: 73.8 inches (1874 mm)
  Depth: 36 inches (915 mm)
  Weight: 136.7 pounds (62 kg)
  Net weight of adaptive stand: 86.7 pounds (39.4 kg)

•
  Pressure sensitivity
  Tail end eraser
  Interchangeable battery (AAA)
  No pairing required
  Supports MPP 2.0 protocol
  Magnetic attachment to Neat Board 50
  Length: 5.7 inches (146 mm)
  Diameter: 0.6 inches (14.5 mm)
  Weight: 0.08 pounds (37 gram)


In the box

What you need

• Neat Board 50 with table stand
  Power cord (9.8 feet / 3 meters)
  Ethernet cable (16.4 feet / 5 meters)
  Neat Active Marker
  Table stand

• Internet connection
  License for Zoom Rooms or Microsoft Teams
