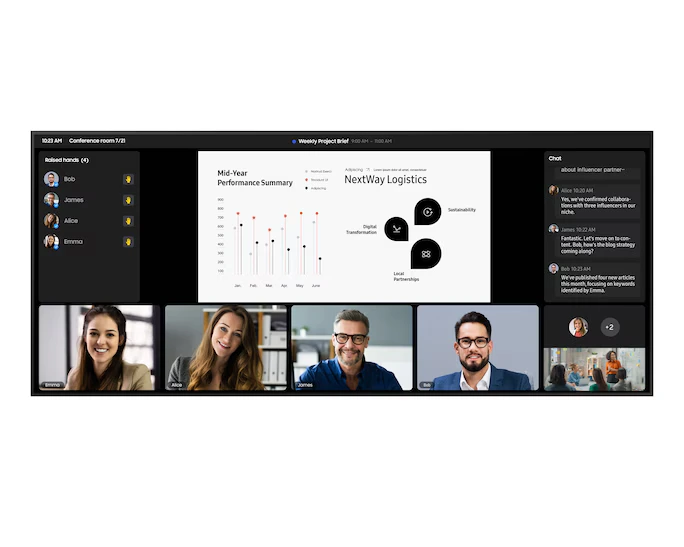

Samsung 105 Inch 5K Signage QPD Series

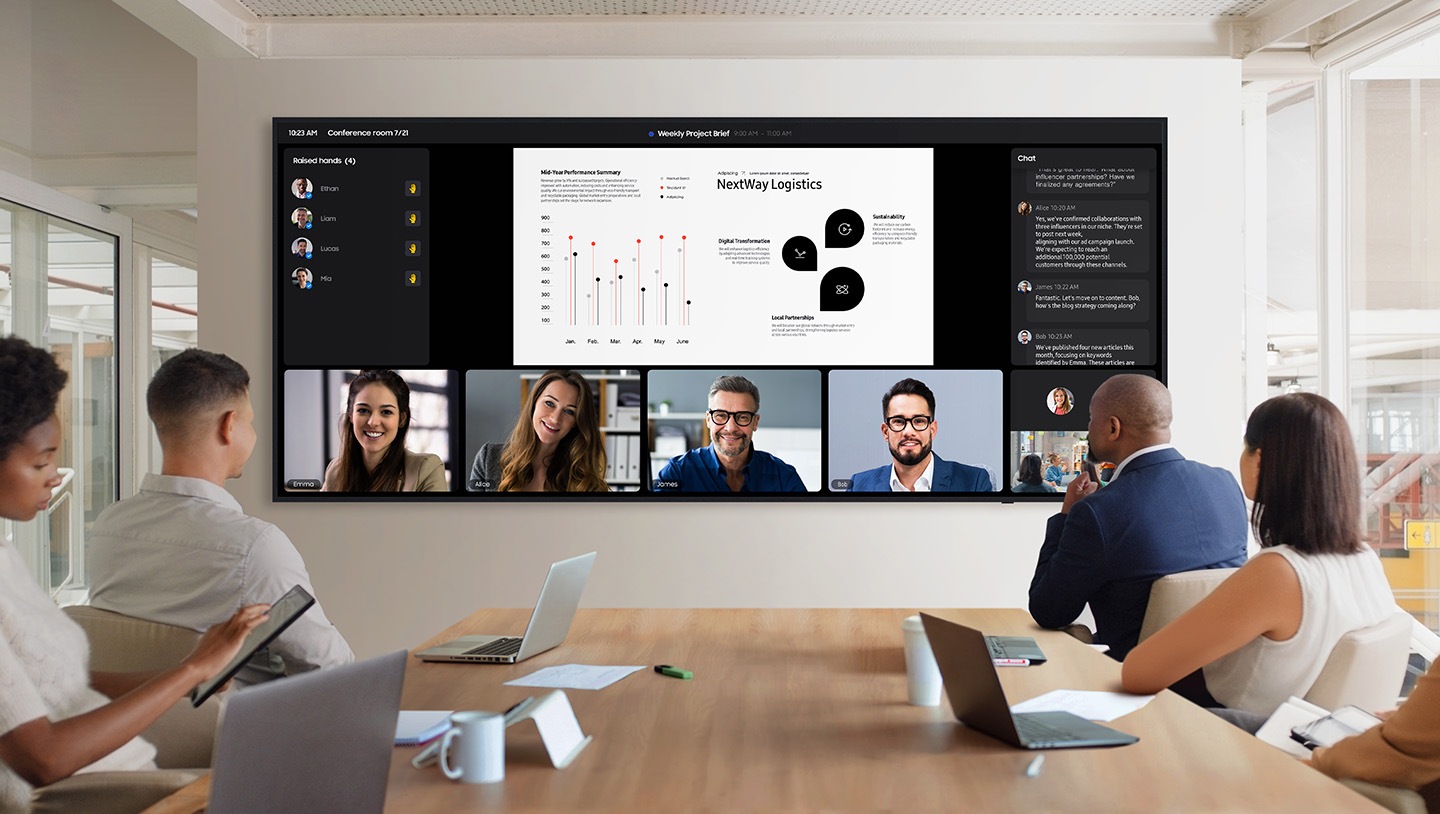

Scale up your business with a supersized screen

Take your meetings to the next level with the 105-inch supersized display. Its expansive, ultra-wide screen eliminates the need for multiple displays, offering a seamless, uninterrupted view without the distracting borders between screens.

See it all in one view with expansive display

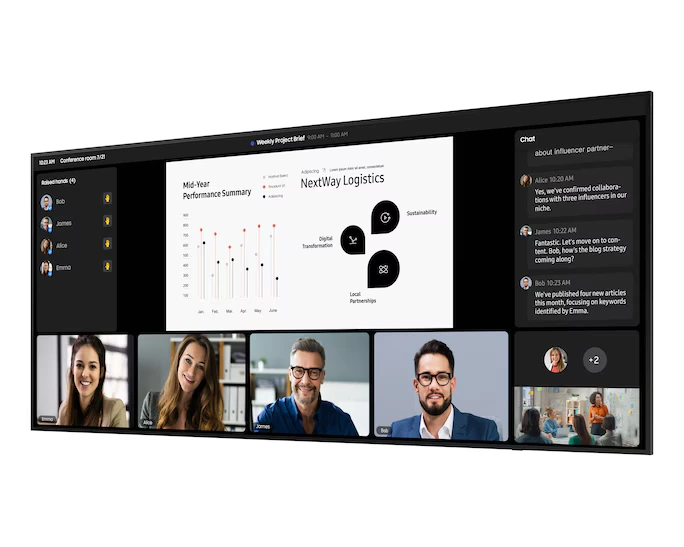

21:9 Ultra-Wide Screen

The QPDX-5K’s 21:9 aspect ratio is designed for today’s modern meeting spaces and optimized for the video conference layout. Whether attendees are in-person or remote, the display ensures equal engagement, providing a truly immersive meeting environment that fosters collaboration.

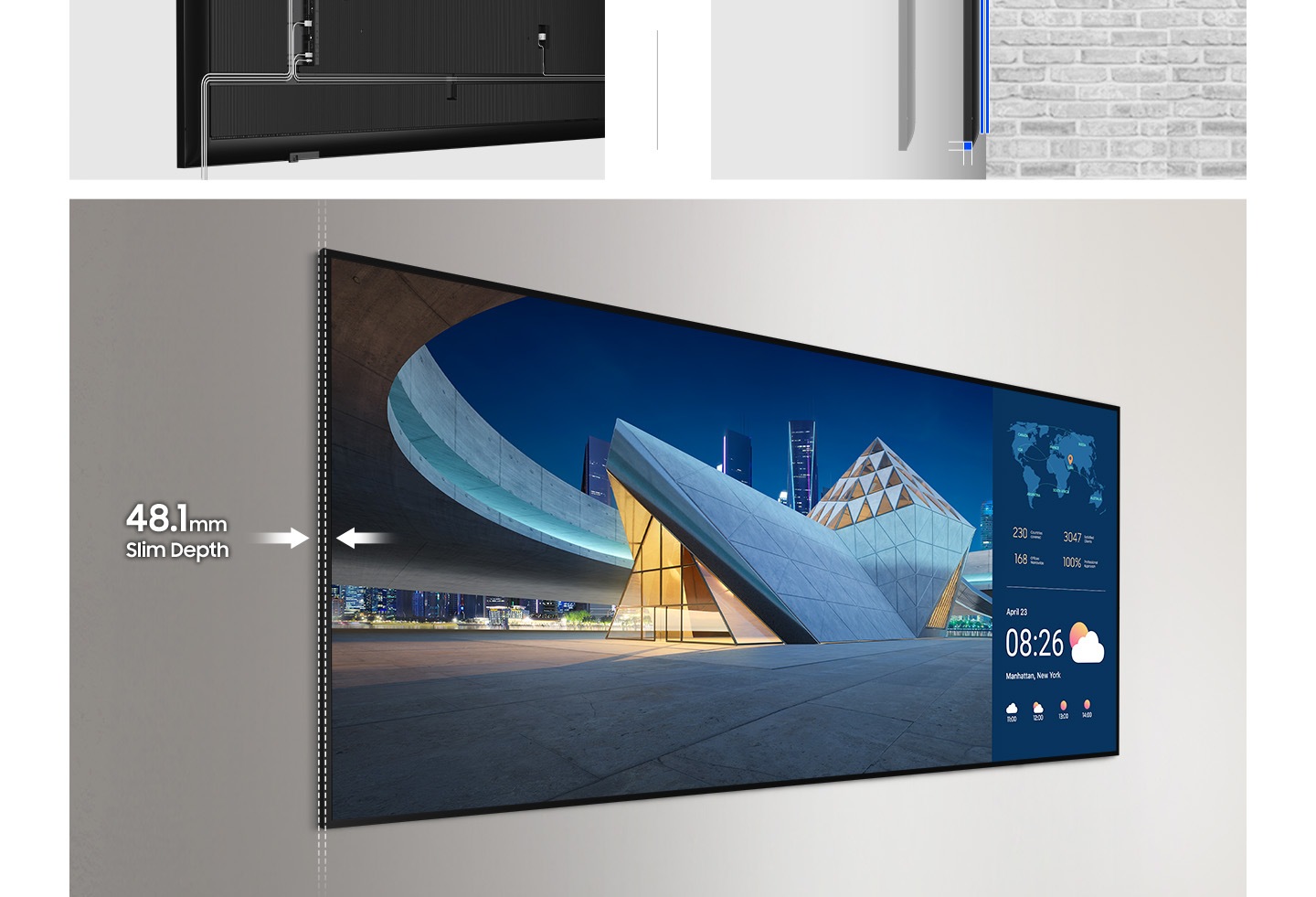

Maximum impact in minimum space

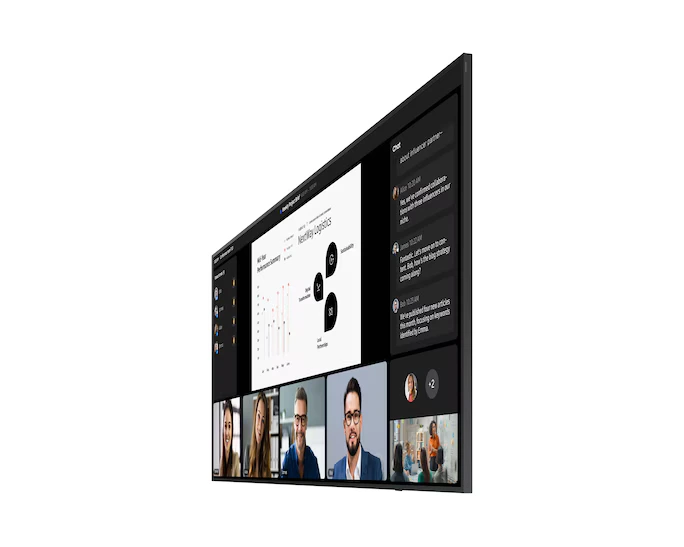

Slim Depth

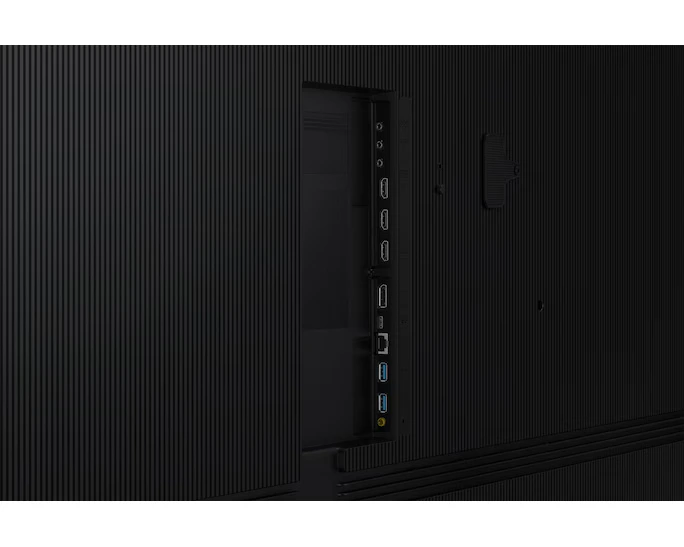

Elevate your workspace with a sleek design that maximizes both performance and space. At just 4.81 cm in depth, this 105-inch display is the slimmest in its class. Outward-facing ports enable easy, flush wall mounting, making it ideal for meeting rooms that require both elegance and efficiency.

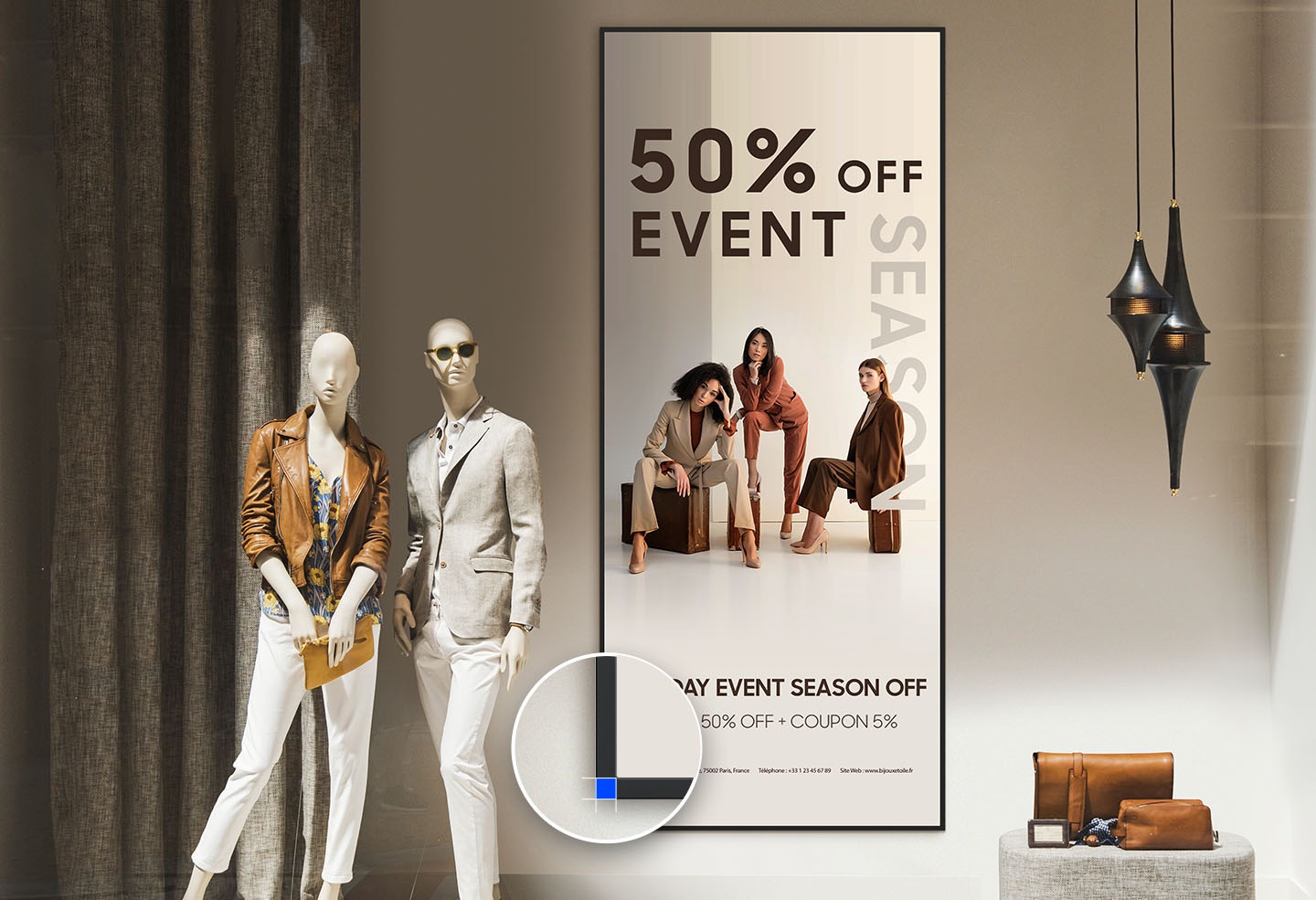

Clean visuals in landscape or portrait mode
Even Bezel

Consistent and even bezels on all four sides of the display preserve the visual quality and accuracy between landscape and portrait modes.

Display detailed Information with 5K Resolution
5K resolution

Experience enhanced collaboration with ultra-clear 5K resolution, delivering sharper images and finer details. A wide viewing angle ensures every participant enjoys clear, vivid visuals, so no one misses a detail, regardless of their position.

* When compared to Samsung’s FHD model* Viewing experience may vary according to types of content and format

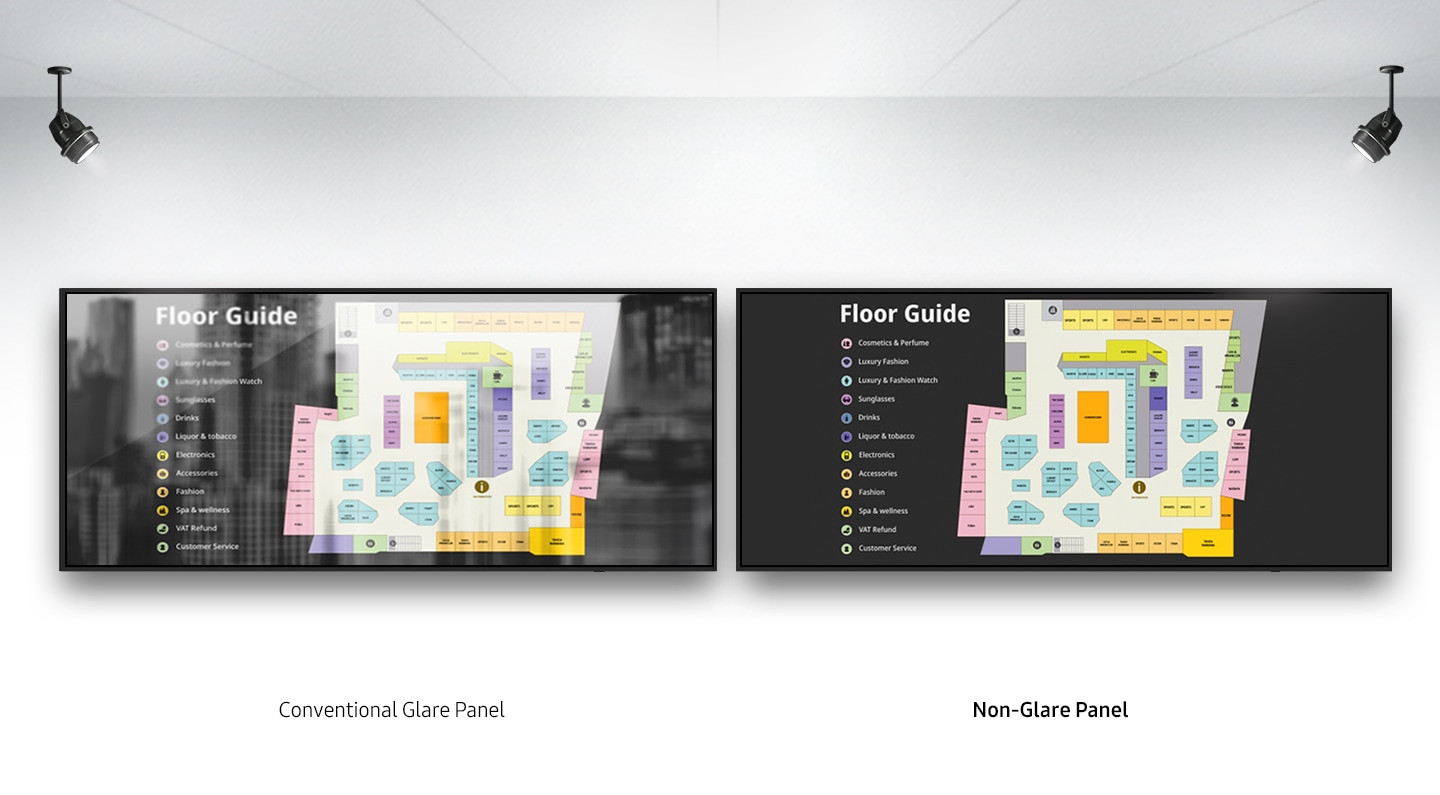

Ensure critical information is always visible
Non-Glare

Reliable, non-glare panels provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in the critical locations.

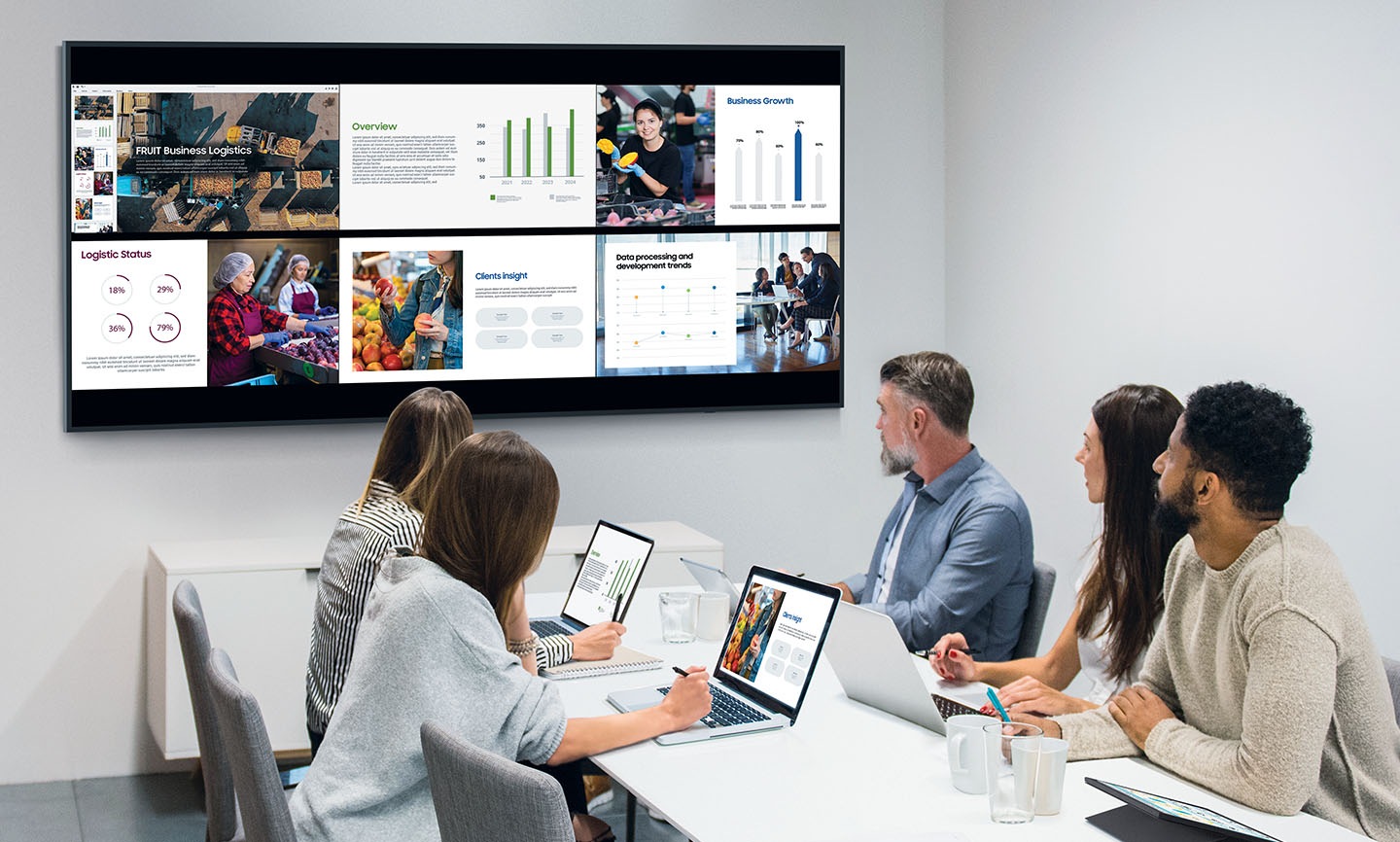

Collaborate instantly with wireless screen sharing
SMARTVIEW+

Enjoy wireless screen sharing for seamless collaboration. Start sharing right from the beginning of a meeting and switch between screens with a single click. The QPDX-5K supports up to 10 screens at once.

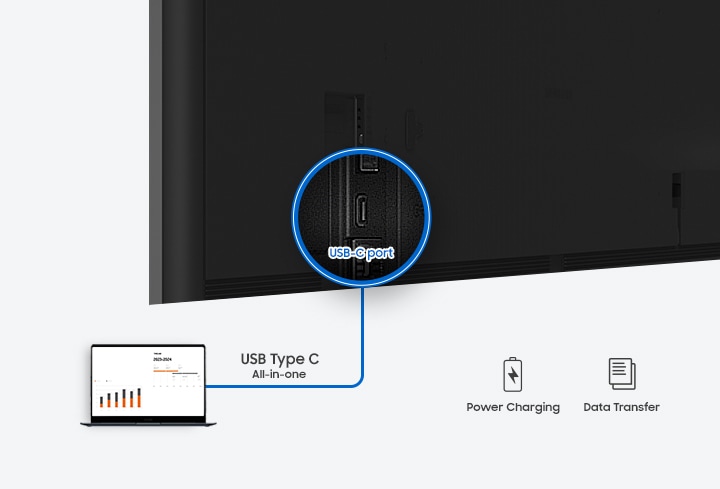

Connect easily and efficiently with USB-C
USB Type-C

Connectivity is enhanced with a USB-C port, allowing users to mirror screens and charge devices at the same time. A single connection through the USB Type-C port ensures seamless, captivating, and interactive communications.

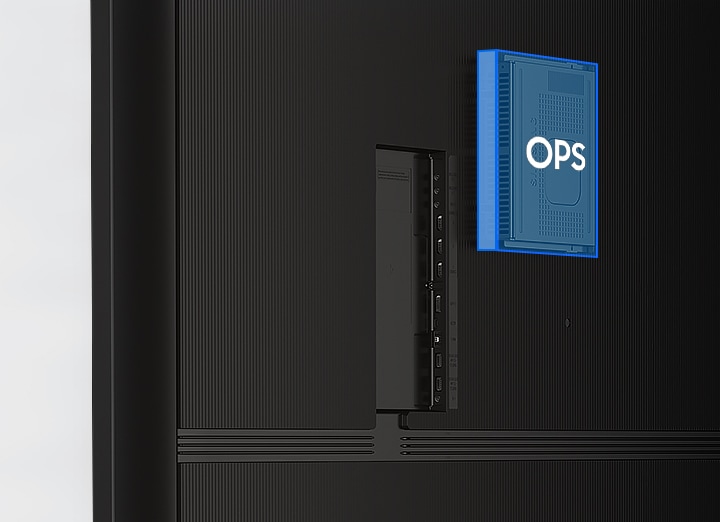

Use your favorite solution for your business
OPS (Open Pluggable Specification)

The QPDX-5K’s Open Pluggable Specification (OPS) transforms the display into a Windows device, eliminating the need for additional PCs or devices. With OPS, users can easily run their preferred software directly on the QPDX-5K, enhancing productivity and flexibility in meetings.

* OPS Module and bracket need to be purchased separately

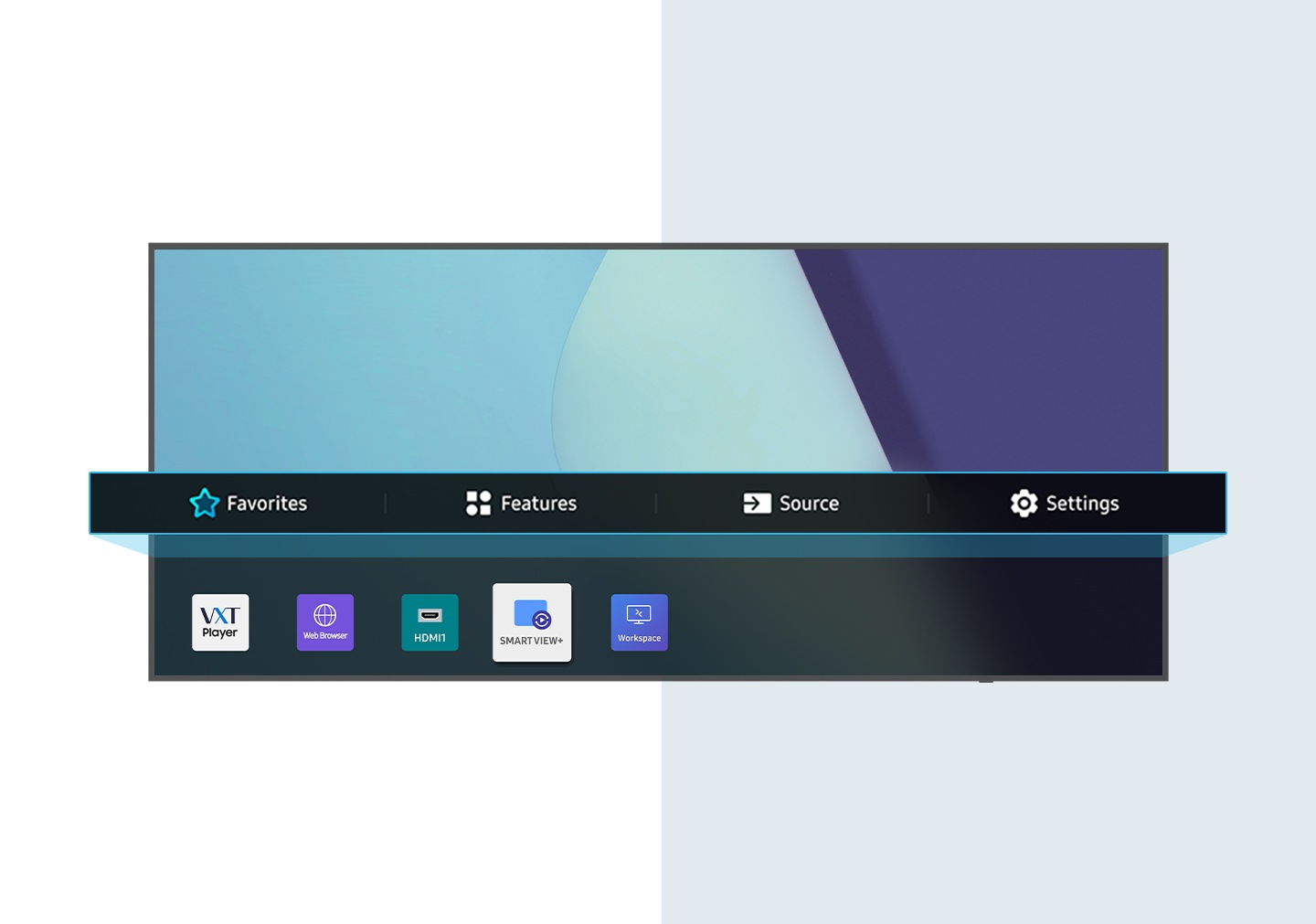

Connect with convenience
Home UI

The upgraded home screen UI boosts usability by displaying popular categories like Favorites, Sources, and Settings all in one place. Users can access frequently used features instantly with a single click through the Favorites folder, ensuring quick and easy navigation.

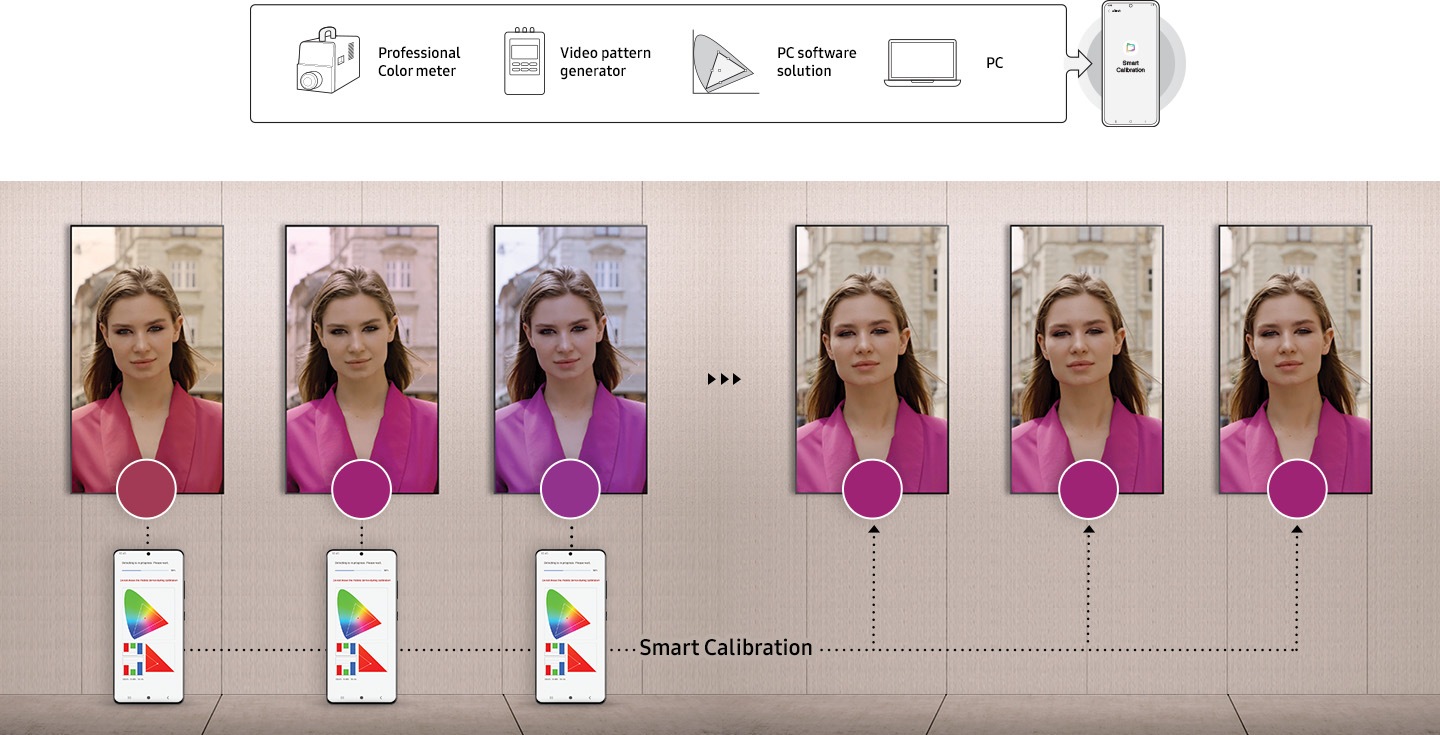

Simplified calibration between screens with mobile app
Smart Calibration

Keep your brand shining consistently across every display, in every location. The Samsung mobile app's Smart Calibration fine-tunes each screen, bringing your brand logos and visuals to life with precise, vibrant colors that capture attention.

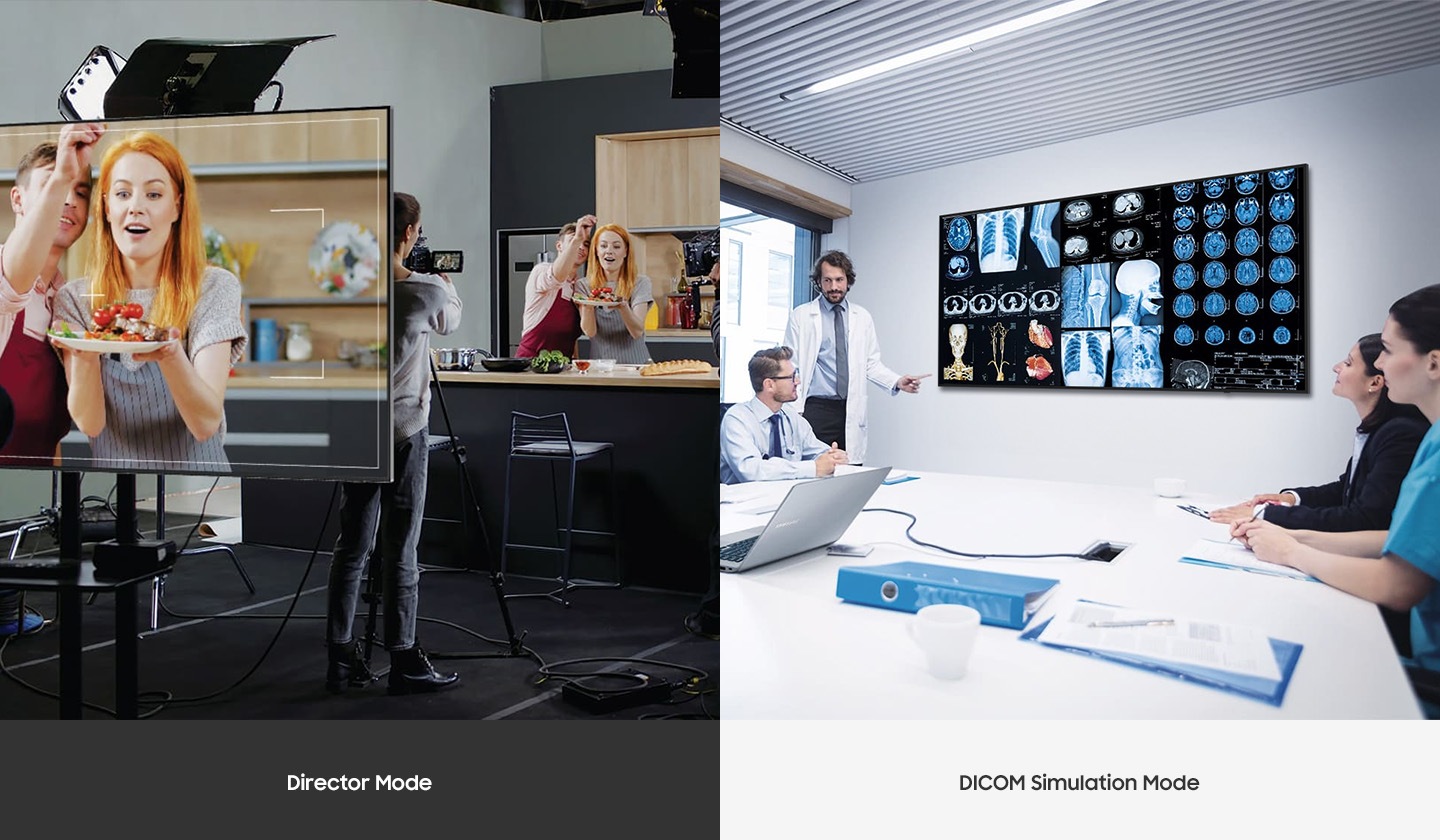

Enhance professional environments with expert tools
Professional Modes

Built-in professional modes open up new possibilities for specialized industries. Director Mode minimizes post-processing to preserve the director’s original intent, while DICOM Simulation Mode allows medical teams to simulate images like X-rays, meeting DICOM's full grayscale standards.

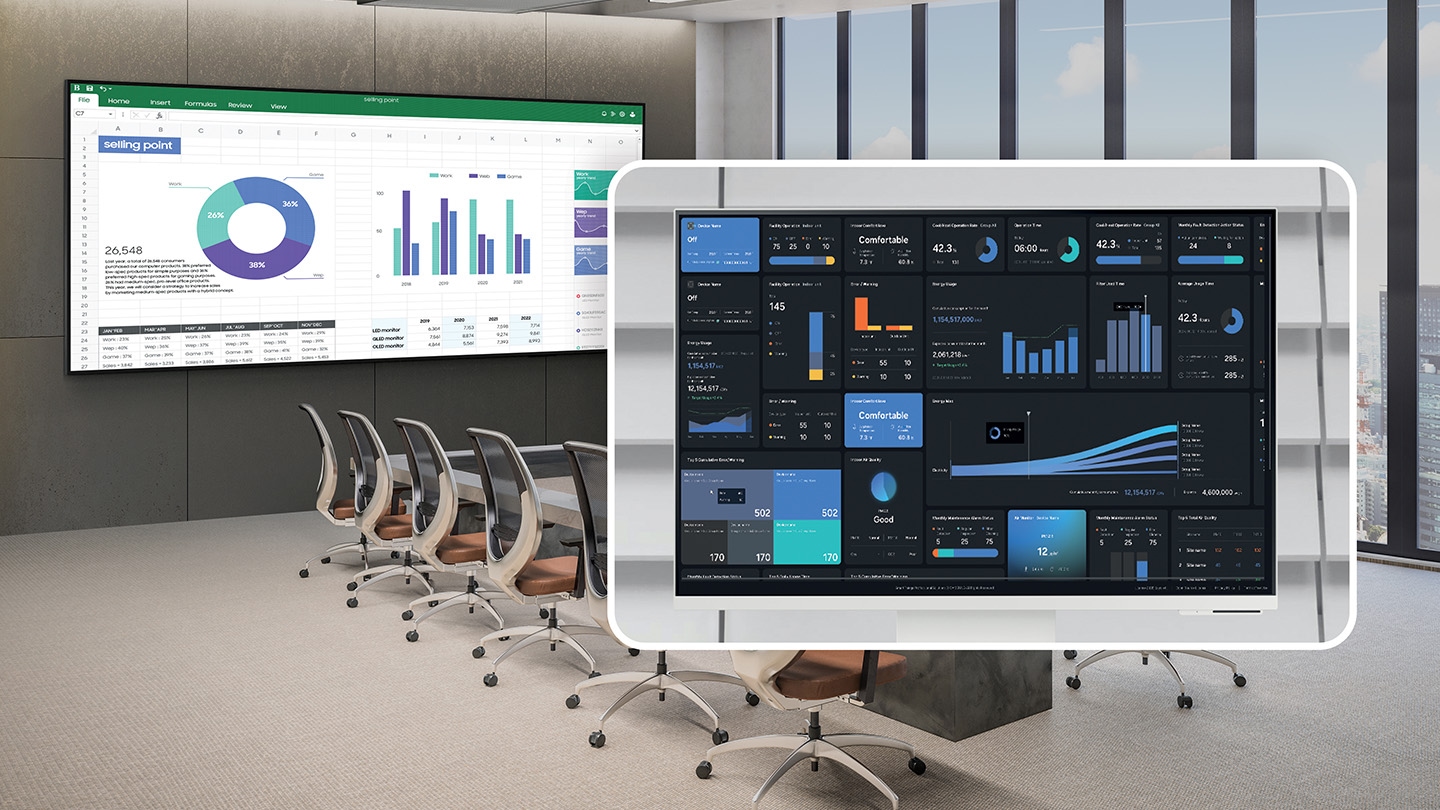

Empower your business with smart control
SmartThings Pro

Samsung SmartThings extends beyond the home, seamlessly integrating into business environments. Unused devices in meeting rooms automatically power down, while the system adjusts air conditioning for optimal energy efficiency.

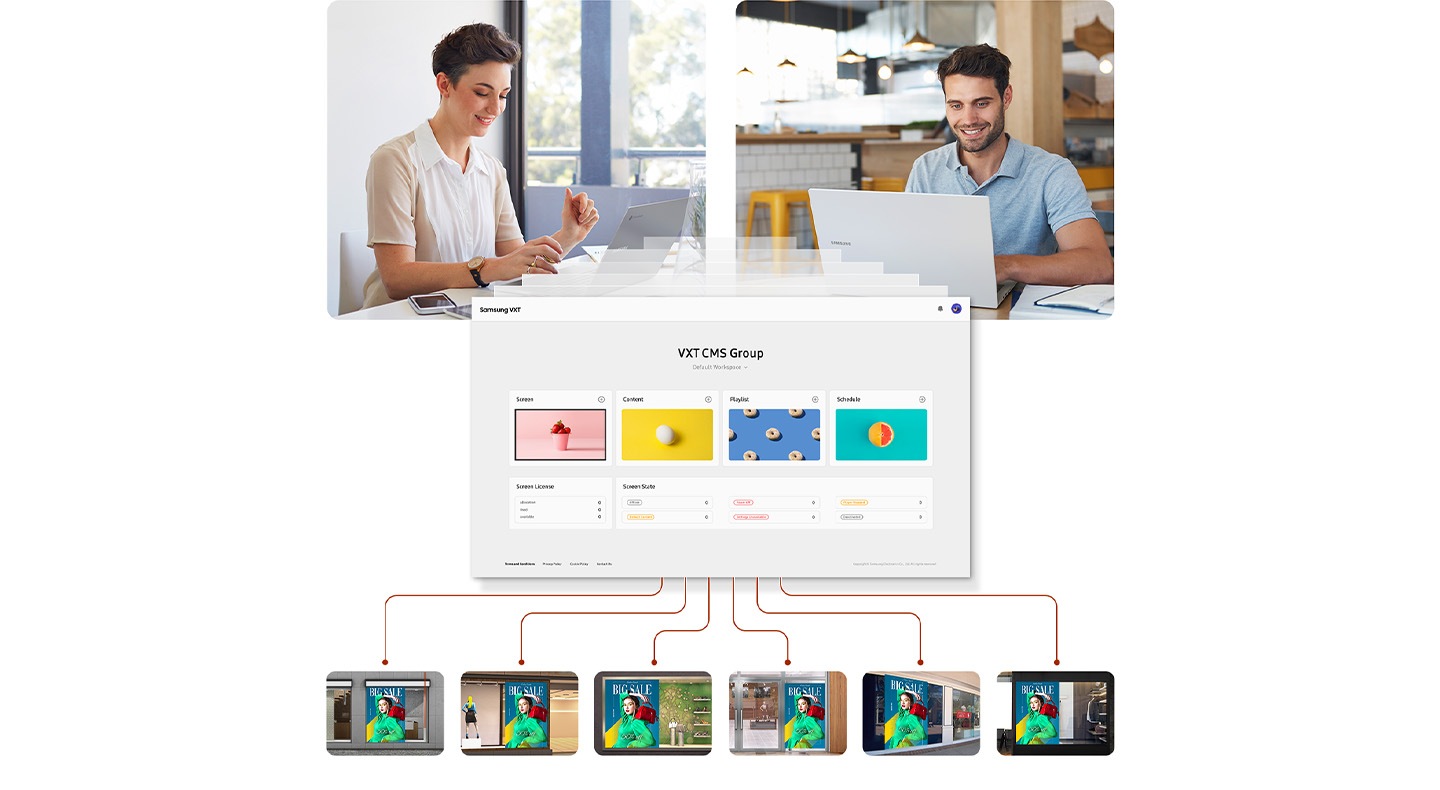

Change the way to manage your display
Samsung VXT

The cloud-based Samsung VXT brings together content management and remote device management capabilities, allowing you to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.

* Samsung VXT must be purchased separately.

Changes start from small steps
ENERGY STAR / EPEAT

The QPDX-5K has received ENERGY STAR 8.0 certification from the Environmental Protection Agency for its energy efficiencyy, as well as an EPEAT certification in recognition of its eco-conscious efforts, including the use of recycled plastics.

Display

Connectivity

• Diagonal Size:2.67 m
• Panel Type:VA(Direct)
• Resolution:5,120 x 2,160
• Pixel Pitch (HxV):0.1595 x 0.4785 mm
• Brightness (Typ):500 nit
• Contrast Ratio:4,000:1
• Viewing Angle (H/V):178/178
• Response Time:6ms(Typ.)
• Colour Gamut:72%(NTSC)
• Glass Haze:25%
• H-Scanning Frequency:30~81kHz
• Maximum Pixel Frequency:742.5MHz
• V-Scanning Frequency:48~75Hz
• Contrast Ratio (Dynamic):Mega
• Operation Time Support:24/7

• HDMI In:3
• DP In:1
• Version of HDMI:2.1
• Version of DP:1.4
• Version of HDCP:2.2
• USB:Type-A(2), Type-C(1)
• IR In:Yes
• Audio In:No
• Audio Out:Stereo Mini Jack
• RS232 In:Yes
• RS232 Out:Yes
• RJ45 In:Yes
• WiFi:Yes
• Bluetooth: Yes

Power

Dimension

• Power Supply:AC100-240V 50/60Hz
• Power Consumption (On Mode):550 W
• Power Consumption (Sleep Mode):0.5 W

• Set Dimension (WxHxD):2.48 m x 1.06 m x 4.81 cm
• Package Dimension (WxHxD):2.66 m x 1.19 m x 27.50 cm

Product Weight

Operation Conditions

• Set Weight:55.6 kg
• Package Weight:78.1 kg

• Temperature:0 - 40 ℃
• Humidity:10 ~ 80%, non-condensing

Mechanical Specification

SoC

• VESA Mount:100 cm x 40 cm
• Bezel Width:1.48 cm (Even)
• Bezel Colour:Slate Black
• Frame Material:Non-Glossy(Metal)

• OS Version:Tizen 8.0
• Flash Memory Size:16GB

Certification and Compliance

• EMC:Class A
• Safety:60950-1, 62368-1
