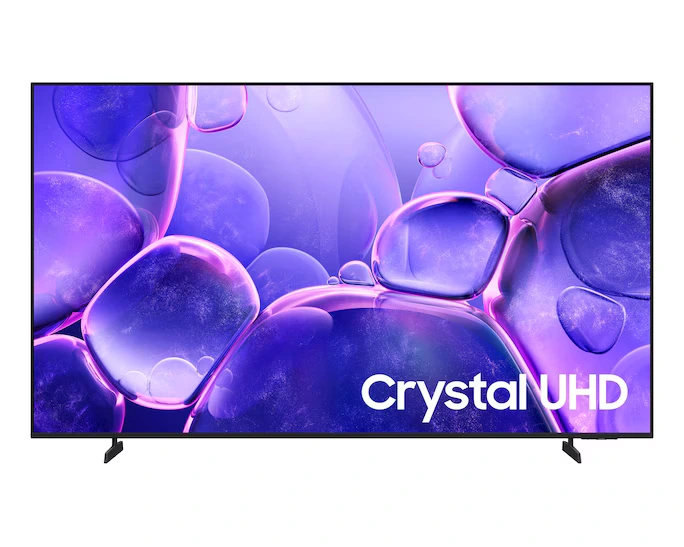

Samsung 55-Inch HU701F 4K UHD Hospitality TV (HG55U701FAULXL)

Enrich guest stays with seamless entertainment

Key features at a glance

LYNK Cloud

Uncover hospitality insights with an integrated cloud platform
Empower managers with a robust set of tools to enhance the guest experience. LYNK Cloud offers remote display management and analyzes guest content usage to uncover valuable marketing insights, enabling managers to deliveroptimized promotions.

* Samsung LYNK Cloud solution must be purchased separately.* UI may vary by models or the hotel's platforms.

Google Cast

Take in-room entertainment to the next level

With Google Cast™, guests can easily cast their favorite content directly from their Android™ and iOS devices to the TV, eliminating the need for additional dongles or login requirements. The connection process is quick andstraightforward, utilizing QR codes for instant pairing.

* The features are available through Samsung solution (LYNK Cloud, TEP).* Android and Google Cast are trademarks of Google LLC.* Google Cast supports Android 6 and above, and iOS 14 and above. Availability may vary by device, software version and region.

Apple AirPlay

Enjoy effortless streaming without worries

Enjoy movies, shows, photos and more on the TV in your room with AirPlay. Your devices are securely paired to the TV, ensuring peace of mind that everything remains personal and private.

Display

Audio

• Backlight:LED
• Screen Size:1.38 m
• Resolution:4K (3,840 x 2,160)

• Dolby Decoder:MS12 2CH
• Object Tracking Sound:OTS Lite
• Sound Output (RMS):20W
• Adaptive Sound:Yes
• Speaker Type:2CH
• Bluetooth Audio:Yes

Video

VESA

• Picture Engine:Quantum Processor Lite
• Film Mode:Yes
• HDR(High Dynamic Range):HDR
• HDR10+:Support
• HLG (Hybrid Log Gamma):Yes
• Contrast:Mega Contrast
• Colour:Dynamic Crystal Color
• Viewing Angle (H/V):178/178
• Contrast Enhancer:Yes

• VESA Mount:20 cm x 20 cm
• VESA Screw Size:M8
• VESA Screw Depth:19-21

Convergence

General Feature

• Multi Device Experience:Mobile to TV, Sound Mirroring, Wireless TV On
• Multi View:Yes
• Apple AirPlay:Yes
• Google Cast:Yes

• Auto Power Off:Yes
• EPG:Yes
• IP Control:Yes
• OSD Language:Local languages
• Teletext (TTX):Yes
• V-Chip:Yes

System

Eco

• Digital Broadcasting:DVB-T2/C/S2
• Analog Tuner:Yes

• Energy Efficiency Class:4
• Eco Sensor:Yes

Hospitality Feature

Input & Output

• TEP API:Yes
• Samsung LYNK™ Cloud:Yes
• Hospitality Plug&Play (Easy Set-up):Yes
• Power On Mode:Yes
• Hotel Channel List:Yes
• Channel Menu Display:Yes
• Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog):Yes
• My Channel:Yes
• Energy Saving Mode (BLU Control):Yes
• RJ12/IR Pass Through:Yes
• Multi Code Remote Control:Yes
• USB Cloning:Yes
• Wake-up Timer (Alarm):Yes
• Samsung LYNK™ DRM:Yes
• Security Mode:Yes

• USB:1 x USB-A
• Ethernet (LAN):1
• RF In (Terrestrial / Cable input / Satellite Input):1/1(Common Use for Terrestrial)/0
• Ex-Link (Supports RS-232C Gender):1
• Wireless LAN Built-in:Yes (Wi-Fi 5)
• Anynet+ (HDMI-CEC):Yes
• Bluetooth:Yes 5.2
• RJ12 (Side/Rear):Yes

Design

Power

• Front Colour:BLACK
• Stand Type:FLAT FEET NARROW
• Bezel Type:3 Bezel-less

• Power Supply (V):AC220-240V~ 50/60Hz
• Power Consumption (Max):125 W
• Power Consumption (Stand-by):0.50 W
• Power Consumption (Typical):58 W

Dimension

Product Weight

• Set Dimension without Stand (WxHxD):1.23 m x 71.08 cm x 6.03 cm
• Set Dimension with Stand (WxHxD):1.23 m x 75.80 cm x 23.70 cm
• Package Dimension (WxHxD):1.36 m x 81.90 cm x 12.70 cm

• Set Weight without Stand:11.0 kg
• Set Weight with Stand:11.3 kg
• Package Weight:15.8 kg

Accessory

• Remote Controller Model:TM2240A
• Batteries (for Remote Control):Yes
• User Manual:Yes
• Power Cable:Yes
• Quick Install Guide:Yes
• Data Cable:Yes
