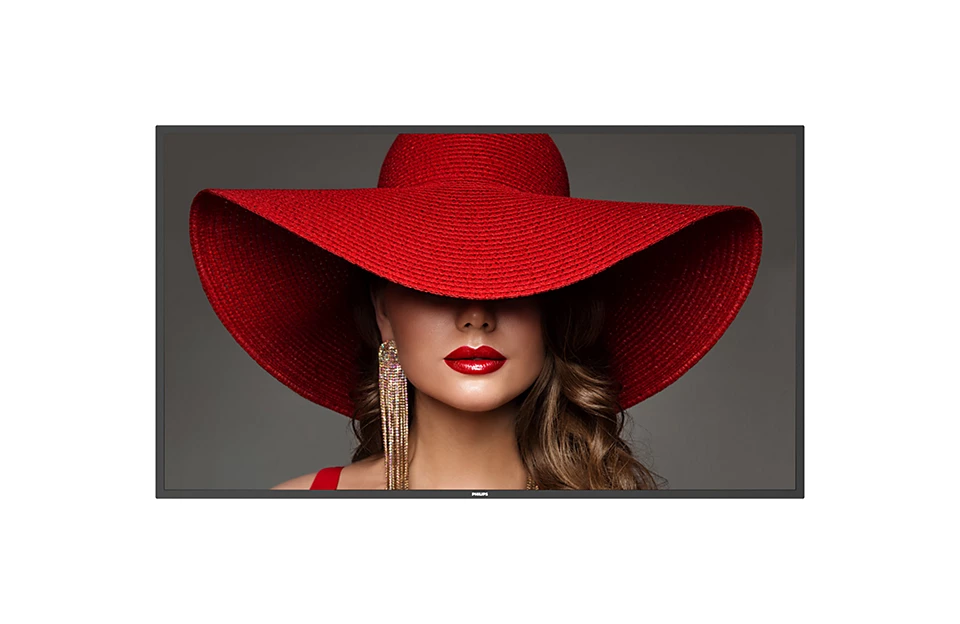

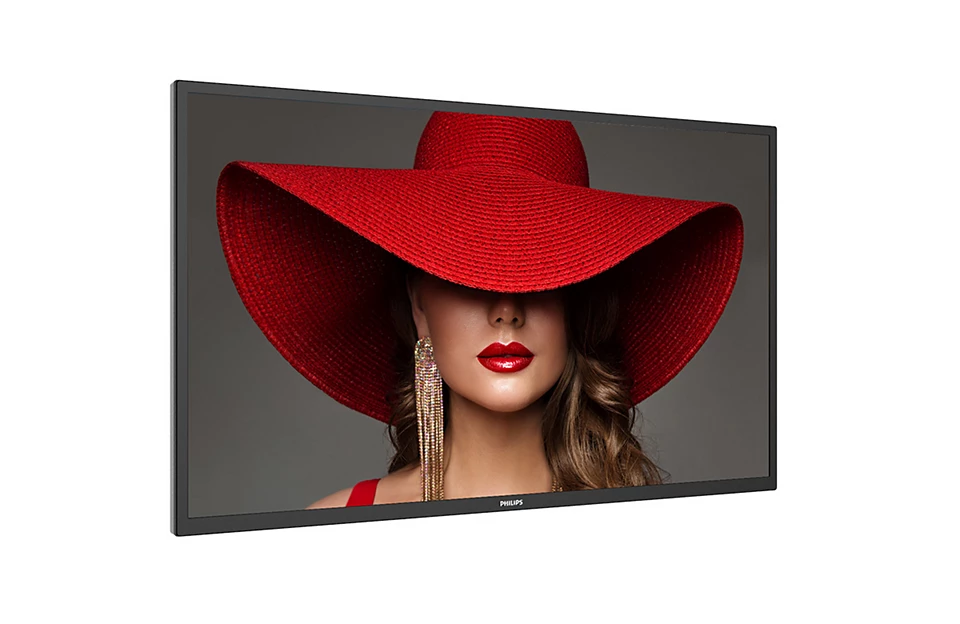

Philips 98BDL4650D

Commercial Digital Signage

The Philips 98BDL4650D is a colossal 98-inch D-Line professional digital signage display, engineered to deliver maximum impact in commercial settings. It features a brilliant 4K UHD (3840 x 2160) resolution and 500 cd/m² brightness, utilizing an ADS wide-view panel for superior color and visibility from all angles. Powering the display is the Android 11 System-on-Chip (SoC), which allows for native app integration and eliminates the need for an external media player. Critically, it is built for non-stop 24/7 operation and includes FailOver technology to ensure your crucial content is always displayed without interruption.

Availablity In stock

Specifications

Specification Details
Diagonal Size 98
Resolution 3840 x 2160
Brightness 500 cd/m²
Response time 8 ms
SKU: 98BDL4650D
Save and play content with internal memory


Save and play content with internal memory

4G/LTE optional module for reliable connection

FailOver. Ensure your display never goes blank

Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.Select our optional 4G/LTE module for more predictable bandwidth and faster download speeds, providing you with a reliable backup connection in case of 24/4 work requirements or where local network connections are not possible.

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of a media player failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Modularity - longer product lifetime

Android SoC processor. Native and web apps


Connect and control your content via the cloud

Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, and a firm focus on sustainability, with reduced WEEE disposal.Powered by Android 11 and with integrated WiFi, your Philips D-Line delivers the ultimate, most secure and connected display experience. Optimised for native Android apps, and enabling you to install web apps and software directly onto the display, eliminating the need for an external media player.Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait, in 4k UHD resolution. Simply connect to the internet via WiFi or with an RJ45 cable.


Catch the Wave for revolutionary results


Unlock the power, versatility and intelligence inside your Philips D-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.



Specifications

Display

Connectivity

  • Diagonal screen size (metric):247.7  cm
  • Diagonal screen size (inch):97.5  inch
  • Aspect ratio:16:9
  • Panel resolution:3840 x 2160
  • Pixel pitch:0.56 (H) x 0.56 (V) [mm]
  • Optimum resolution:3840 x 2160 @ 60 Hz
  • Brightness: 500  cd/m²
  • Display colors:1.07 Billion
  • Contrast ratio (typical):1200:1
  • Dynamic contrast ratio:500,000:1
  • Response time (typical): 8  ms
  • Viewing angle (horizontal):178  degree
  • Viewing angle (vertical):178  degree
  • Picture enhancement: 3/2 - 2/2 motion pull down ,Motion compens deinterlacing
  • Panel technology: ADS
  • Operating system: Android 11
  • Haze:28%
  • Audio output: 3.5mm jack
  • Video input: DVI-I (x 1),DisplayPort 1.4 (x1),HDMI 2.0 (x2),USB3.0 (x2),VGA (via DVI)
  • Audio input:3.5 mm jack
  • Other connections:4G/LTE antenna connectors, Micro USB (x1) (OTG),USB 2.0 (x1)
  • Video output: DisplayPort 1.4 (x1)
  • External control:RJ45,RS232C (in/out) 2.5 mm jack,IR (in/out) 3.5 mm jack
  • WiFi: WiFi 6 + Bluetooth 5.2 (slide-in module)

Convenience

Dimensions

  • Placement: Landscape (24/7),Portrait (24/7)
  • Tiled Matrix: Up to 10 x 15
  • Screen saving functions: Pixel Shift
  • Keyboard control: Hidden ,Lockable
  • Signal loop through: IR Loopthrough,DisplayPort,RS232
  • Energy saving functions: Smart Power
  • Network controllable: RS232,External 4G mPCIe slot,RJ45,WiFi
  • WiFi protocol: a b g n, 802.11 ax, 802.11 ac
  • Set Width: 2193.2  mm
  • Product weight: 90.6  kg
  • Set Height:1248.2  mm
  • Set Depth: 87.9 (D@Wall mount) / 97.9 (D@Handle)  mm
  • Set Width (inch): 86.35  inch
  • Set Height (inch): 49.14  inch
  • Wall Mount: 800(H) x 400(V) mm, M8
  • Set Depth (inch):3.46 (D@Wall mount) /3.85 (D@Handle)  inch
  • Bezel width:16.0 mm (Even Bezel)
  • Product weight (lb):199.74  lb

Power

Operating conditions

  • Mains power:100 ~ 240 VAC, 50 ~ 60 Hz
  • Consumption (Typical):TBD  W
  • Consumption (Max):TBD
  • Standby power consumption:<0.5 W
  • Energy Label Class: G
  • Altitude:0 ~ 3000 m
  • Temperature range (operation):0 ~ 40  °C
  • MTBF:50,000  hour(s)
  • Temperature range (storage):-20 ~ 60  °C
  • Humidity range (operation)[RH]:20 - 80% RH (No condensation)
  • Humidity range (storage) [RH]:5 - 95% RH (No condensation)

Sound

Supported Display Resolution

  • Built-in speakers:2 x 10W RMS
  • Computer formats:1920 x 1080, 60Hz,1280 x 1024, 60Hz
  • Video formats:1080p, 50, 60Hz,1080i, 50, 60Hz

Multimedia Applications

Internal Player

  • USB Playback Video: MPEG,H.263,H.264
  • USB Playback Picture: BMP,JPEG,PNG
  • USB Playback Audio: AAC,HEAAC,MPEG
  • CPU:2x A72 + 4x A53
  • GPU:ARM Mali-T860 MP4
  • Memory:4GB RAM
  • Storage:32 GB EMMC

Accessories

Miscellaneous

  • Included Accessories:RS232 daisy-chain cable, Philips logo (x1),AC Switch Cover
  • Warranty: 3 year warranty
  • Regulatory approvals: CE,ROHS,CB,EMF,FCC, Class A,UL
