LG Stretch Signage 105BM5P – 105 Inch 5K Ultra-Wide Display

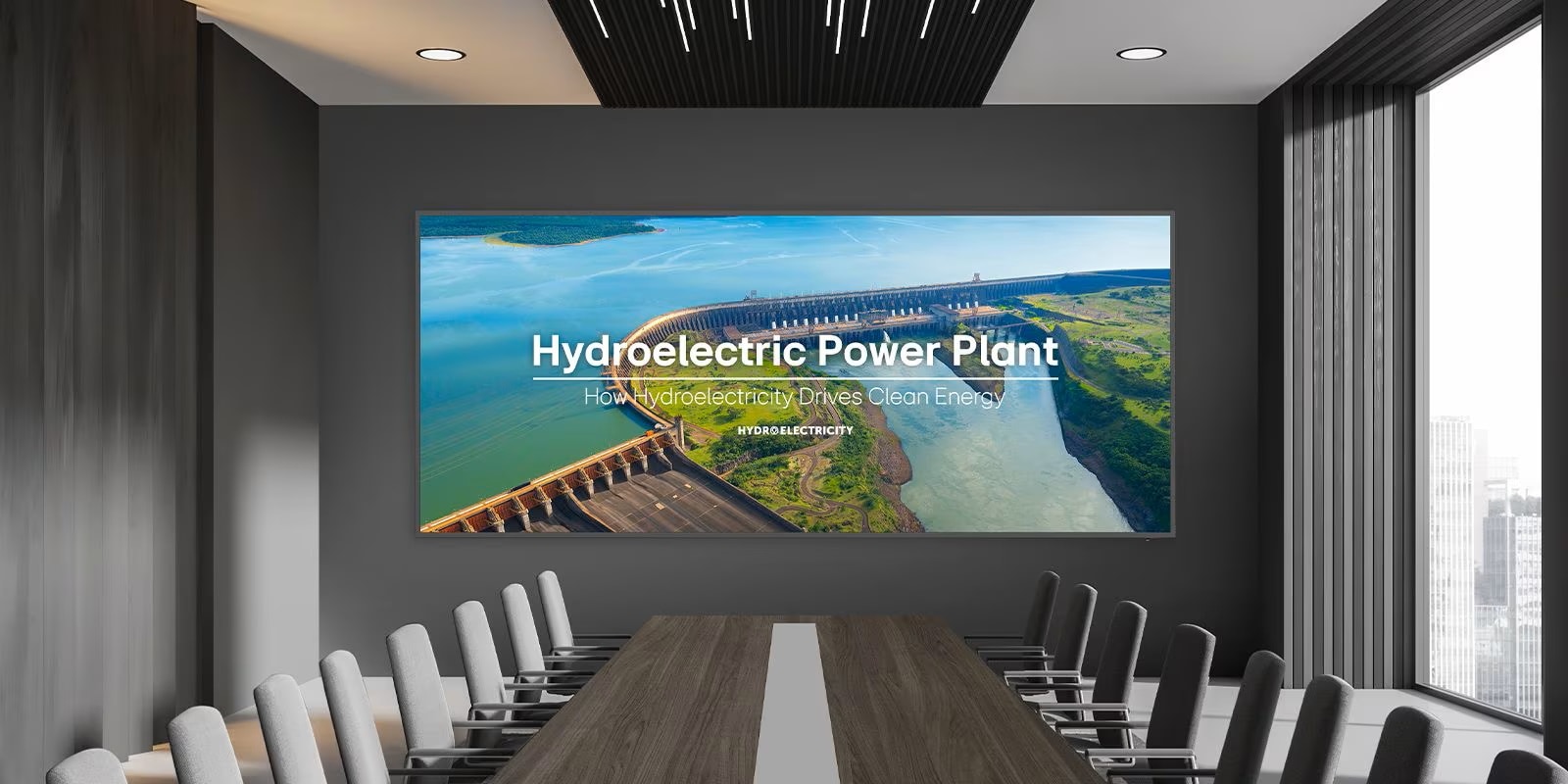

Experience a Whole New Level of Viewing with Our 21:9 Widescreen Display

*All images in this page are for illustrative purposes only.

21:9 Extended Wide Format

With support for a 21:9 widescreen aspect ratio, 105BM5P provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.

*Proximity Sensor operates smoothly within a range of 3 meters in an obstacle-free environment.

Portrait / Landscape Mode

The 105BM5P offers versatile usage, with the ability to be used in both vertical and horizontal orientations. This flexibility allows it to adapt to various installation and usage scenarios.

*The orientation must be manually adjusted when changing the installation direction.

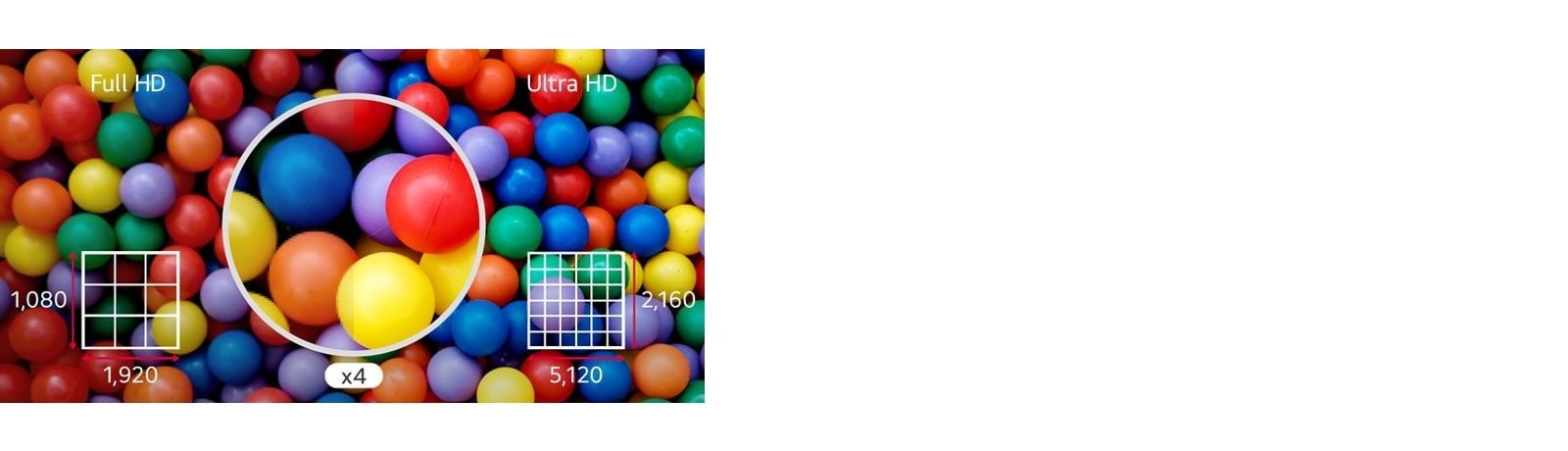

High Resolution Display

It provides a resolution that's more than 4 times higher than FHD, making the viewer satisfied visually. With a resolution of 5,120 × 2,160 and a high pixel density, every single detail of the display screen is conveyed vividly.

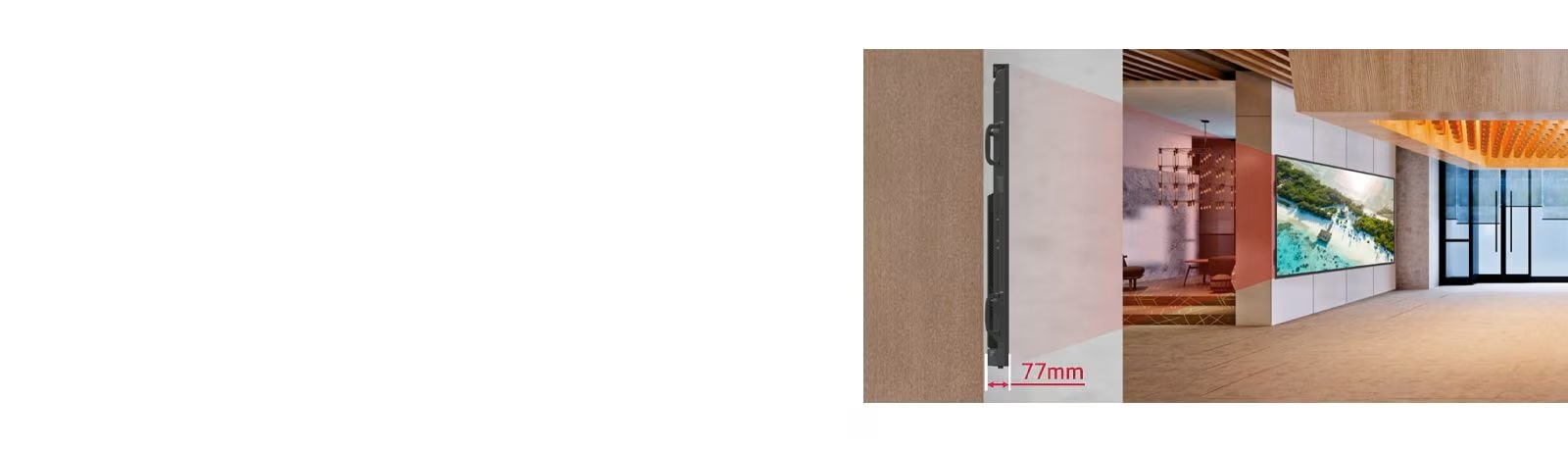

Slim Depth Design

The 105BM5P stands out with its slim bezel and sleek depth design with reduced weight. Not only does it save space, but it also facilitates easy installation, making it an ideal choice for a variety of settings.

*We recommend professional installation. If you choose to install it yourself, please ensure that at least two people are involved.

Easily Connect & Charge with
USB Type-C

USB Type-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

*USB Type-C cables are sold separately.

Wireless ScreenShare

The 105BM5P offers a wireless screen sharing feature, known as LG CreateBoard Share, allowing for easy sharing of presentation materials wirelessly, thus eliminating the clutter of wires. This enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the app.

*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
*For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

OPS Slot

105BM5P supports OPS slots, allowing you to conveniently mount OPS Module at the back of the screen without the hassle of connecting to an external desktop, enabling various PC functions and Windows software even on the 105BM5P.

*OPS : Open Pluggable Specification.
*OPS Player for 105BM5P supports 4K output and is sold separately.

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of devices. This feature enables IT managers to manage important resources on operating devices without physically visiting sites.

*LG ConnectedCare DMS needs to be purchased separately.
*The availability of the LG ConnectedCare DMS service differs by region, so please contact the LG sales representative in your region for more details.
*LG ConnectedCare DMS supports TV Signage (UM340E, UR640S), LG CreateBoard (TR3 Series) and Stretch Signage (105BM Series) as of now (plus more to come) under a cloud environment.

Remote Control

Thanks to LG ConnectedCare DMS, IT manager can select specific devices to be controlled remotely and update their settings all at once. General settings, power settings, application management, and multimedia can all be effectively managed and controlled simultaneously, enabling the stable operation of clients' businesses.

PANEL

CONNECTIVITY

• Screen Size:266.7 cm (105)
• Panel Technology:IPS (ADS)
• Back Light Type:Direct
• Aspect Ratio:21:9
• Native Resolution:5120 x 2160 (5K)
• Refresh Rate:60 Hz
• Brightness:440 nit (Typ.)
• Contrast Ratio:1,200:1
• Dynamic CR:5,000:1
• Color Gamut:NTSC 72 %
• Viewing Angle (H x V):178 x 178
• Color Depth (Number of Colors):10 bit(8 bit + FRC)
• Response Time:8 ms (G to G)
• Surface Treatment (Haze):25 %
• Life time:50,000 Hrs (Min.)
• Operation Hours (Hours/Day):16/7
• Portait / Landscape:Yes/Yes

• HDMI In:Yes (4) HDCP 2.3
• HDMI In (HDCP Ver.):2.3
• DP In:Yes (1) HDCP 2.3
• Audio In:Yes (1)
• RS232C In:Yes (1)
• RJ45 (LAN) In:Yes (1)
• USB In:USB 3.0 TypeA(4), USB 2.0 TypeA(3), USB Type C(1), USB 2.0 TypeB Out(3)
• HDMI Out:Yes (1)
• DP Out:No, HDMI Out (1)
• Audio Out:Yes (1, Optical 1(SPDIF))

MECHANICAL SPECIFICATION

FEATURE - HARDWARE

• Bezel Color:Black
• Bezel Width:T/R/L/B : 18/18/18/18 mm
• Weight (Head):54.1 Kg
• Packed Weight:75.9 Kg
• Monitor Dimensions (W x H x D, mm):2490 x 1074 x 77 mm
• Handle:Yes
• VESA™ Standard Mount Interface (mm):1000 x 600
• Carton Dimensions (W x H x D, mm):2668 × 280 × 1233 mm

• Internal Memory (eMMC):64 GB
• Wi-Fi/BT (Built-in):Yes (Slot Type)
• Auto Brightness Sensor:Yes
• Power Indicator:Yes
• Local Key Operation:Yes (Power Key)

FEATURE - SOFTWARE

POWER CONSUMPTION

• OS Ver. (webOS):Android 13.0 (AOSP)
• USB Plug & Play:Yes
• Fail Over:Yes
• PIP:Yes (1 External Source)
• Screen Share:Yes ( LG CreateBoard Share)
• Crestron Connected:Yes
• PM mode:Yes
• Wake on LAN:Yes
• Network Ready:Yes
• HDMI-CEC:Yes

• Max.:632 W
• Typ:412 W
• Power off:≤0.5 W
• DPM:≤0.5 W
• Others - BTU (British Thermal Unit):1406 BTU/Hr(Typ.), 2156 BTU/Hr(Max)

ENVIRONMENT CONDITIONS

POWER

• Operation Temperature:10 % to 90 %
• Operation Humidity:0 °C to 40 °C

• Power Supply:AC 100-240 V~, 50/60 Hz
• Power Type:Built-In Power

SOUND

SOFTWARE COMPATIBILITY

• Speaker (Built-in):Yes (16 W x 2 + 15 W)

• Connected Care:Yes (LG ConnectedCare DMS)

CERTIFICATION

OPS COMPATIBILITY

• Safety:CB / NRTL(cULus)
• EMC:FCC Class "A" / CE
• ERP / Energy Star:Yes/Yes

• OPS Type compatible:Yes (Slot)
• OPS Power Built-in:Yes
