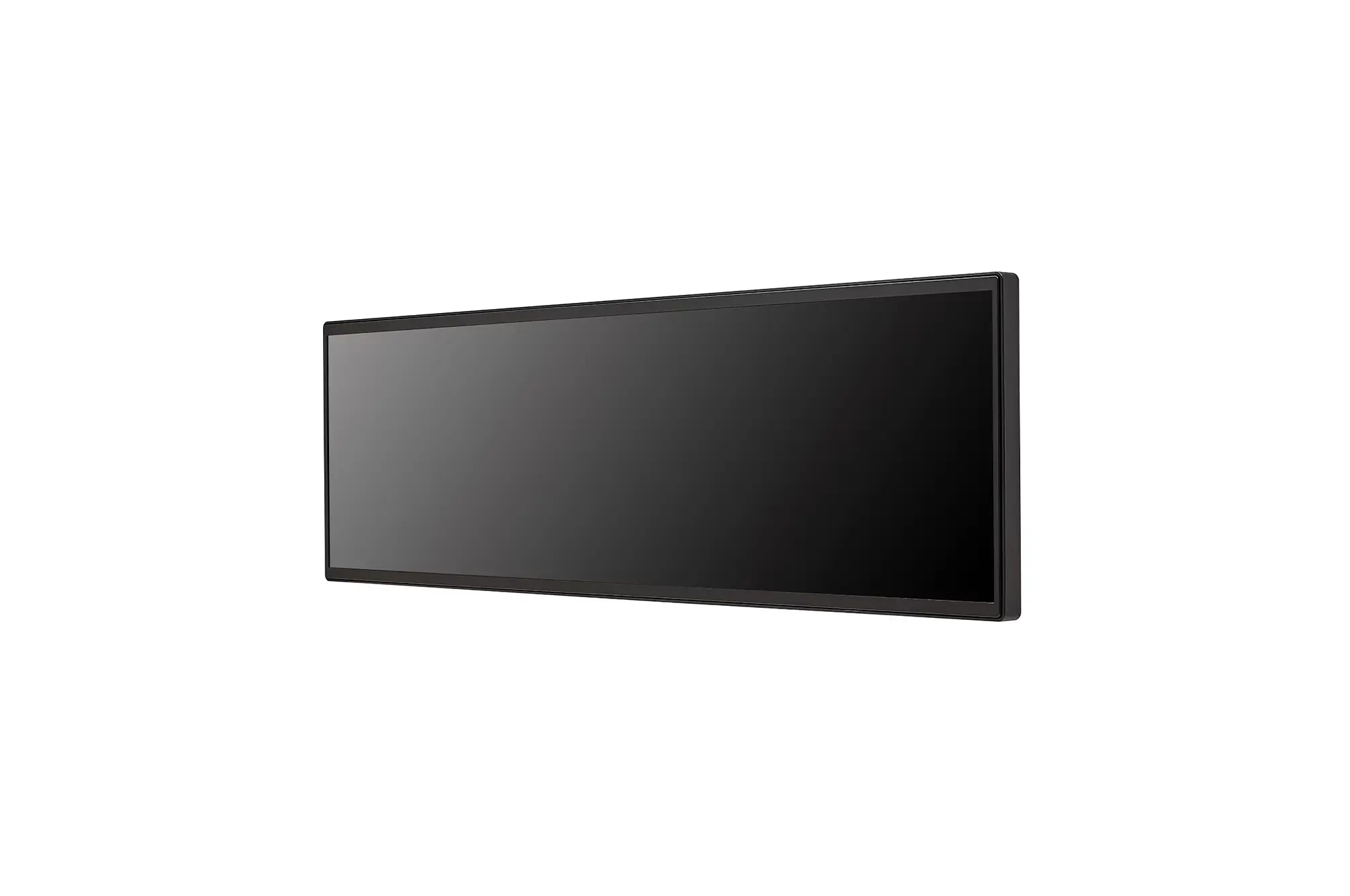

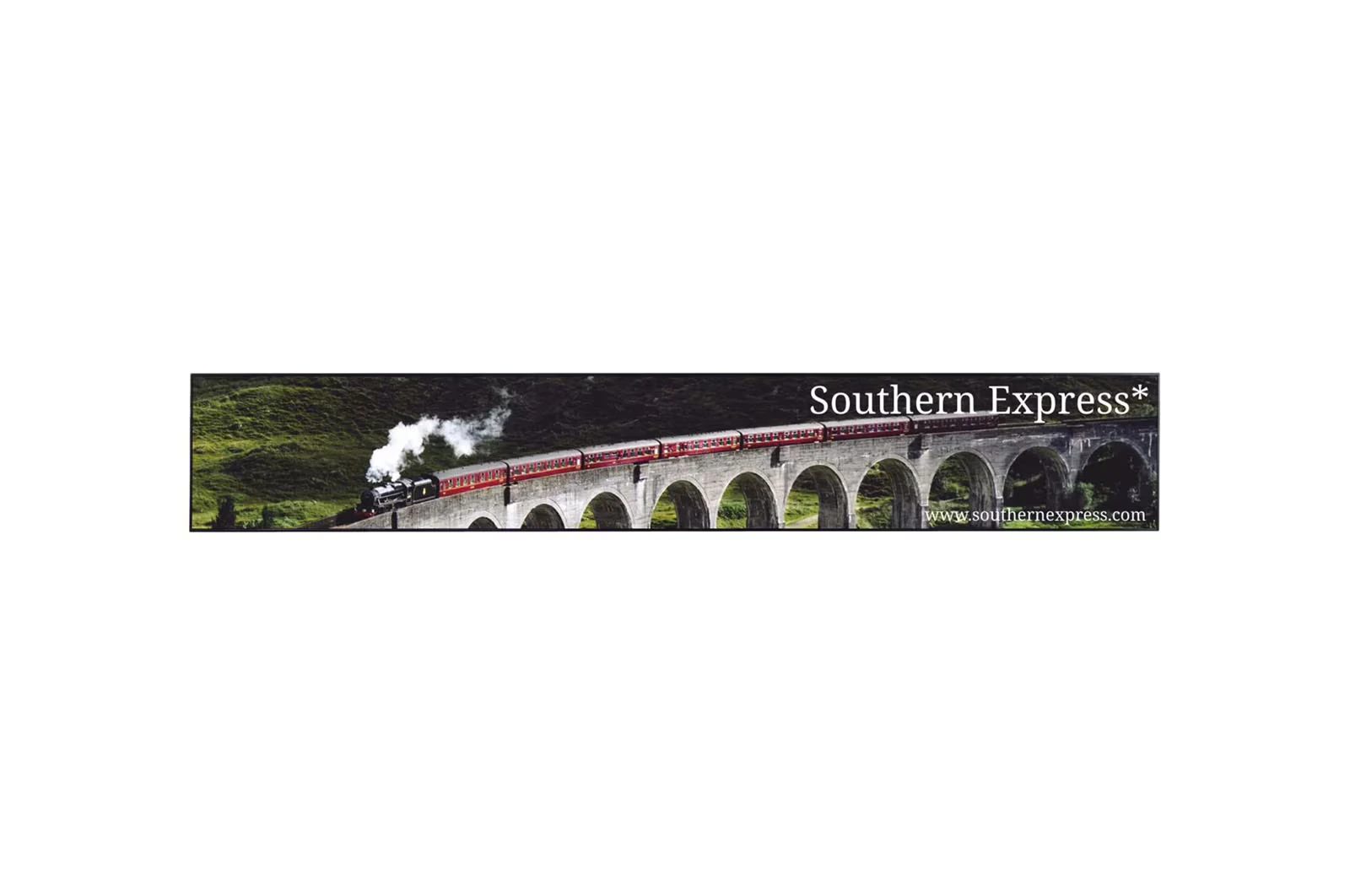

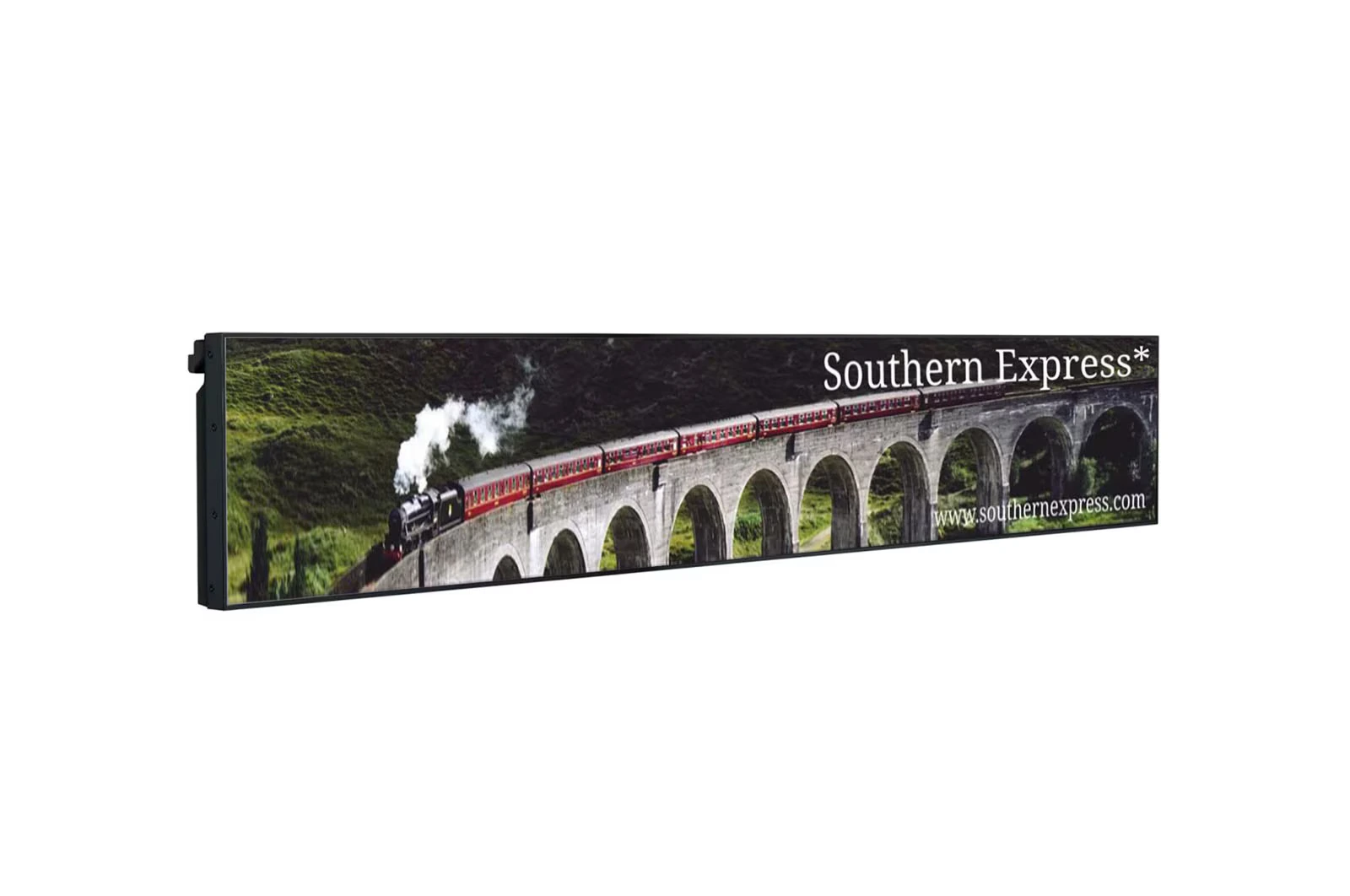

LG Stretch Signage 37BH7N 37-Inch 32:9 Digital Display

Bring the Remaining Space to Life with Space-fitting 32:9 Widescreen

*All images in this page are for illustrative purposes only.

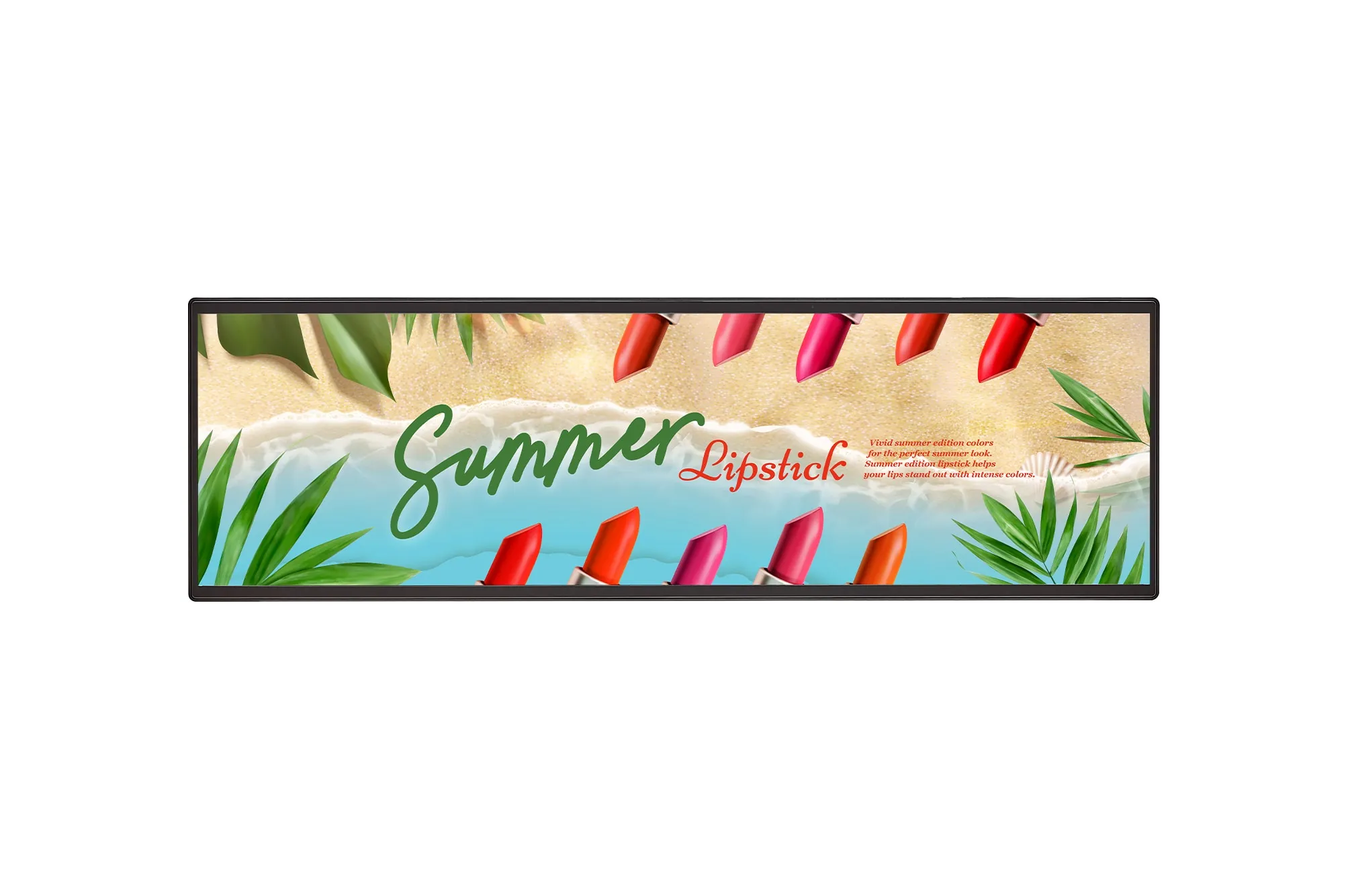

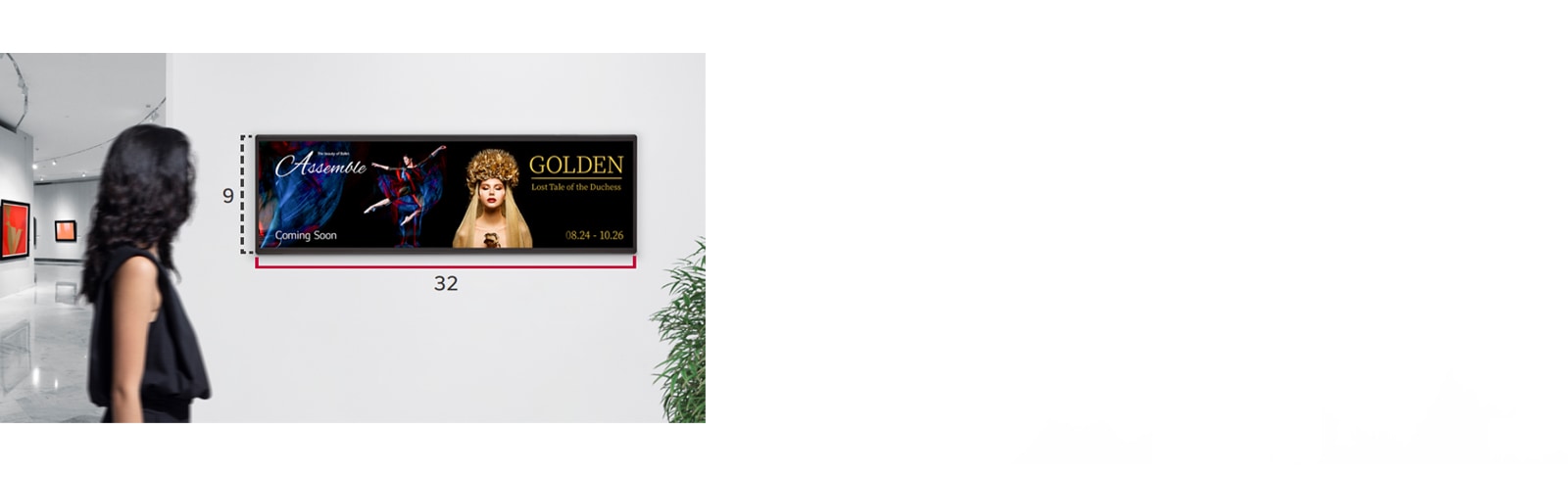

32:9 Extended Wide Format

It is a unique wide screen with 32:9 bar type which provides much more flexibility in content than the conventional display of 16:9 ratio.

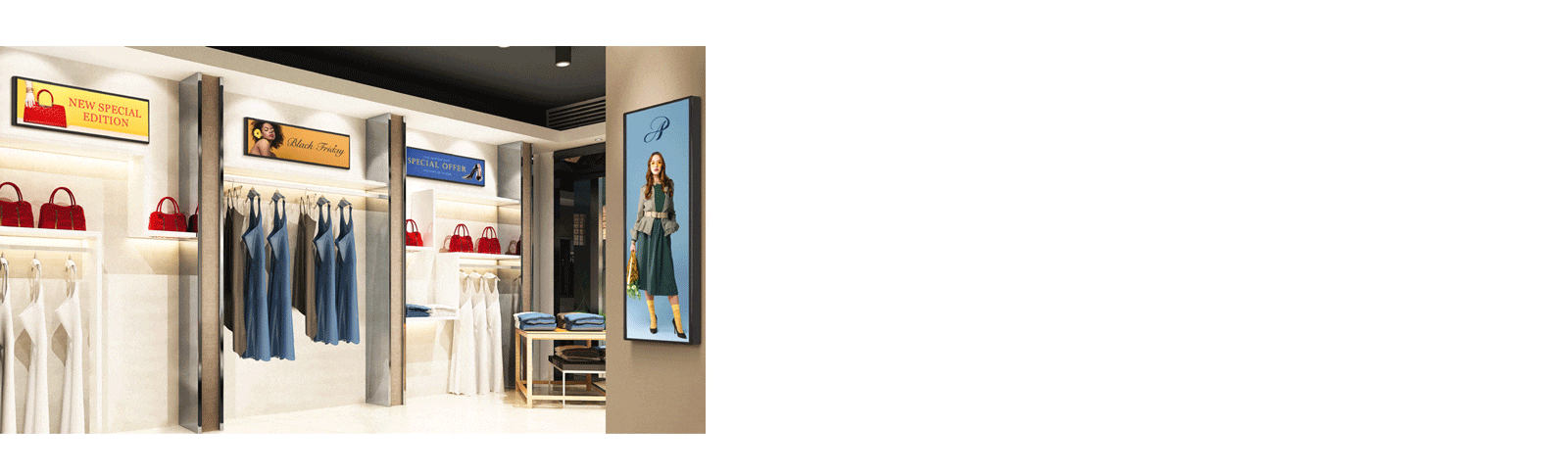

Portrait/Landscape Mode

BH7N can be used vertically as well, allowing for flexible utilization in various installation/usage scenes in both horizontal and vertical orientations. It can be utilized for displays according to the characteristics and size of unused and leftover spaces.

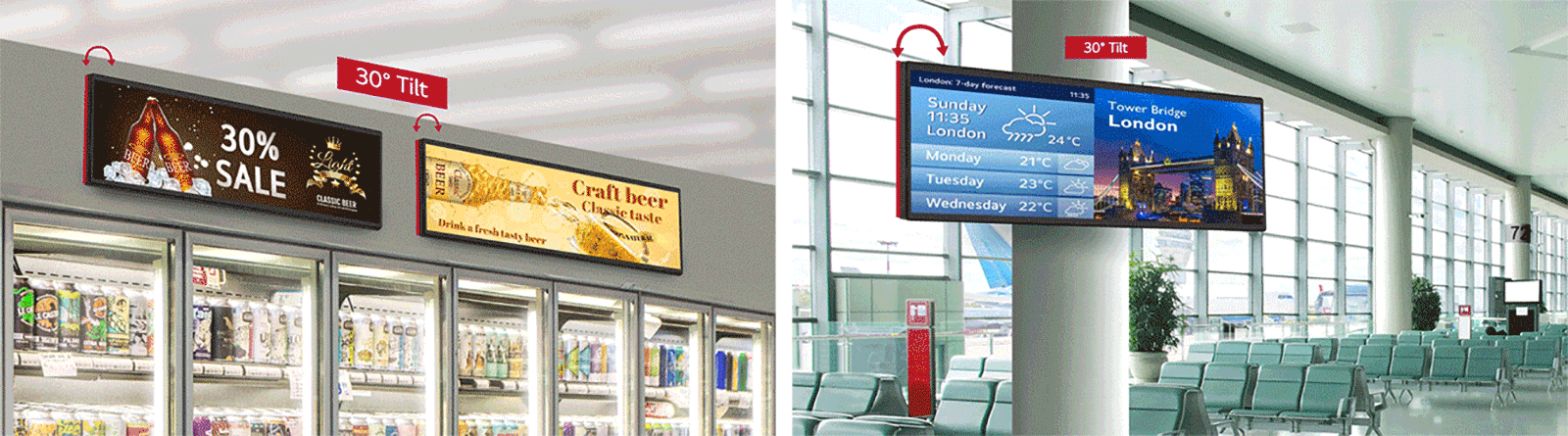

Customizable Angle to Suit Customer's Eye Level

With a tilting capability of 30° when installed at a higher height, BH7N enhances customer perception and satisfaction.

Highly Reliable in High Humidity Environments

Optimized for business environments, the BH7N is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation.

Indoor Display Offering a Vivid and Sharp Visual Experience

With a great brightness of 700 cd/m2, the BH7N series clearly deliver content and attract public attention, making it suitable display for marketing in airports, retail, shopping malls etc.

*The provided image is intended for comparison purposes only.

Daisy Chain Management

A daisy chain allows you to conveniently and efficiently play the same content on multiple displays using just one media player. This eliminates the need to install separate media boxes for each display, as the entire operation can be handled by a single media player, ultimately resulting in cost savings during installation

*You can play media by connecting an external HDMI.

High Performance with LG webOS 6.0

LG webOS 6.0 is available on BH7N series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.*

*GUI : Graphical User Interface.
*The provided image is solely for reference.

Real-Time Monitoring with LG ConnectedCare

Easy and Fast maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

SuperSign

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

PANEL

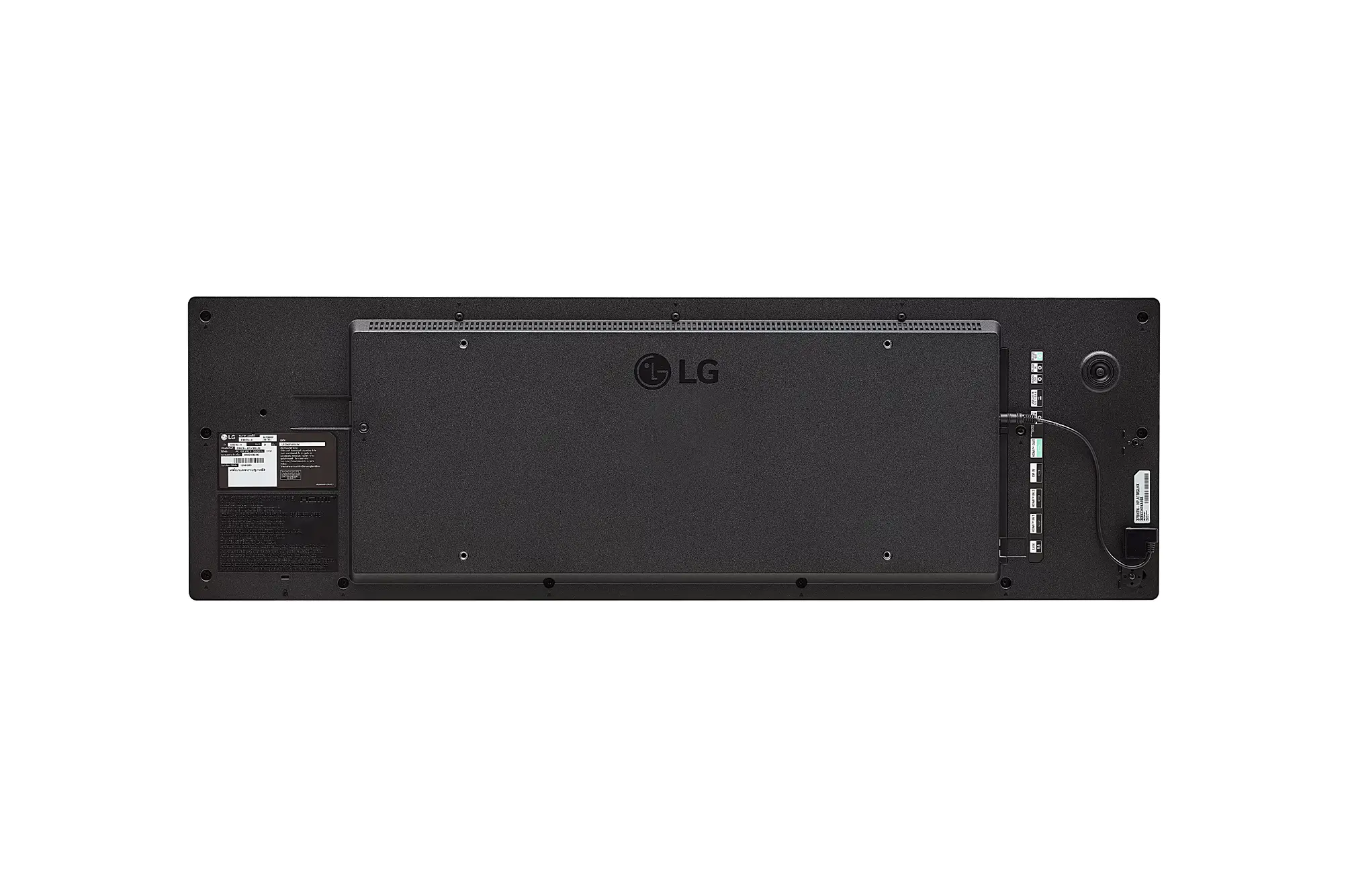

CONNECTIVITY

• Screen Size:93.98 cm (37)
• Panel Technology:IPS (ADS)
• Back Light Type:Edge
• Aspect Ratio:32:9
• Native Resolution:1920 x 540 (FHD)
• Refresh Rate:60 Hz
• Brightness:700 nit (Typ.)
• Contrast Ratio:1,000:1
• Dynamic CR:1,000,000:1
• Color Gamut:NTSC 72 %
• Viewing Angle (H x V):178 X 178
• Color Depth (Number of Colors):8 bit,16.7 Million colors
• Response Time:14 ms (G to G)
• Surface Treatment (Haze):25 %
• Life time:50,000 Hrs (Min.)
• Operation Hours (Hours/Day):24/7
• Portait / Landscape:Yes / Yes

• HDMI In:Yes (2)
• HDMI In (HDCP Ver.):HDCP2.2 / 1.4
• DP In:Yes (1), HDCP2.2 / 1.4
• RS232C In:Yes (1)
• RJ45 (LAN) In:Yes (1)
• IR In:Yes (1)
• USB In:USB 2.0 Type A(1)
• HDMI Out:Yes (1)
• Audio Out:Yes (1)
• RS232C Out:Yes (1)
• Daisy Chain:Yes (Input HDMI / Output HDMI)


MECHANICAL SPECIFICATION

FEATURE - HARDWARE

• Bezel Color:Black
• Bezel Width:T/R/L/B : 15.6/9.3/9.3/15.6 mm
• Weight (Head):7 kg
• Packed Weight:9 Kg
• Monitor Dimensions (W x H x D, mm):922.3 x 288.3 x 43.5 mm
• Handle:Yes
• VESA™ Standard Mount Interface (mm):400 x 200
• Carton Dimensions (W x H x D, mm):1017 x 382 x 178 mm

• Internal Memory (eMMC):16 GB
• Wi-Fi/BT (Built-in):Yes
• Temperature Sensor:Yes
• Auto Brightness Sensor:Yes
• Acceleration (Gyro) Sensor:Yes
• Local Key Operation:Yes

FEATURE - SOFTWARE

POWER CONSUMPTION

• OS Ver. (webOS):webOS 6.0
• Local Contents Scheduling:Yes
• Group Manager:Yes
• USB Plug & Play:Yes
• Fail Over:Yes
• Booting Logo Image:Yes
• No Signal Image:Yes
• RS232C Sync:Yes
• Local Network Sync:Yes
• PBP:Yes (2)
• Video Tag:Yes (4)
• Screen Rotation:Yes
• External Input Rotation:Yes
• Gapless Playback:Yes
• Tile Mode Setting:Yes(Max. 15X15)
• Setting Data Cloning:Yes
• SNMP:Yes
• ISM Method:Yes
• Auto Set ID:Yes
• Status Mailing:Yes
• Control Manager:Yes
• Crestron Connected:Yes
• Smart Energy Saving:Yes
• PM mode:Yes
• Wake on LAN:Yes
• Network Ready:Yes
• BEACON:Yes
• HDMI-CEC:Yes
• SI Server Setting:Yes
• webRTC:Yes
• Pro:Idiom:Yes

• Max:50 W
• Typ:40 W
• Power off:0.5 W
• DPM:0.5 W
• Others - BTU (British Thermal Unit):136.4 BTU/Hr(Typ.), 170.6 BTU/Hr(Max.)
• Smart Energy Saving (70%):30 W±10 %

ENVIRONMENT CONDITIONS

POWER

• Operation Temperature:0 °C to 40 °C
• Operation Humidity:10 % to 80 %

• Power Supply:AC 100-240 V~, 50/60 Hz
• Power Type:Built-In Power

CERTIFICATION

SOFTWARE COMPATIBILITY

• Safety:CB / NRTL
• EMC:FCC Class "B" / CE / KC

• SuperSign CMS:Yes
• SuperSign Control+:Yes
• SuperSign WB:Yes
• SuperSign Cloud:Yes
• Mobile CMS:Yes
• Connected Care:Yes
