MAXHUB E3 Series 1.90 m (75") 4K UHD Interactive Flat Panel (E7530)

MAXHUB E3 SERIES

Evolve Learning, Redefine Possibilities

EVOLVE VISUAL WELLNESS

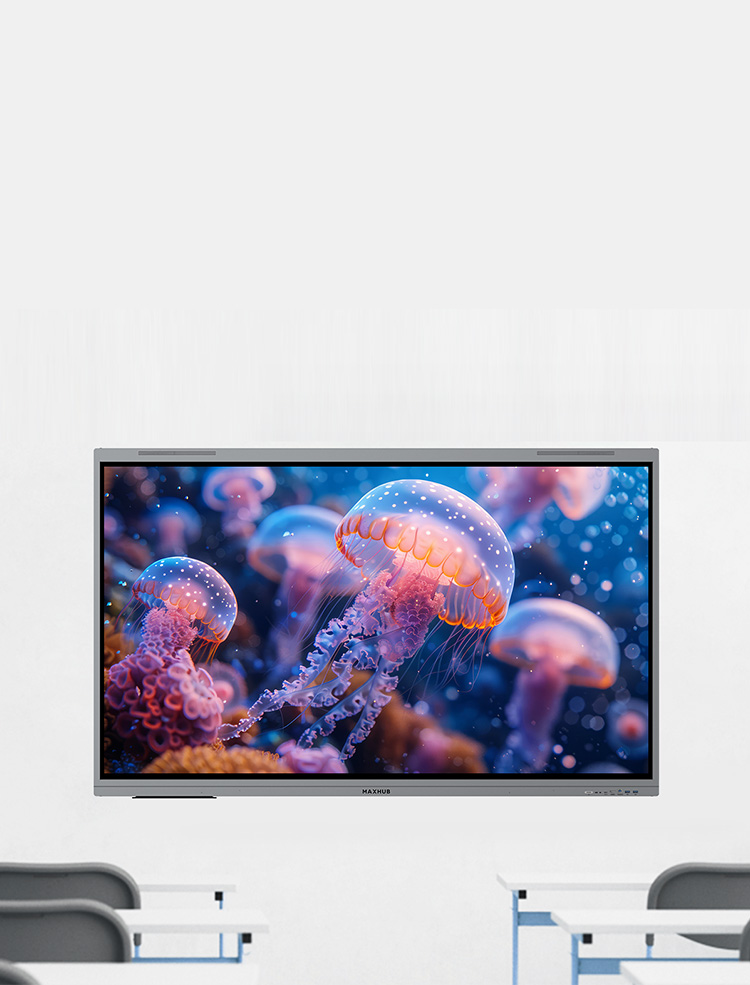

THE COMPLETE 4K SOLUTION
Immerse yourself in stunning 4K detail, including a 4K system UI and self-developed 4K applications, ensures a pristine visual experience from source to screen

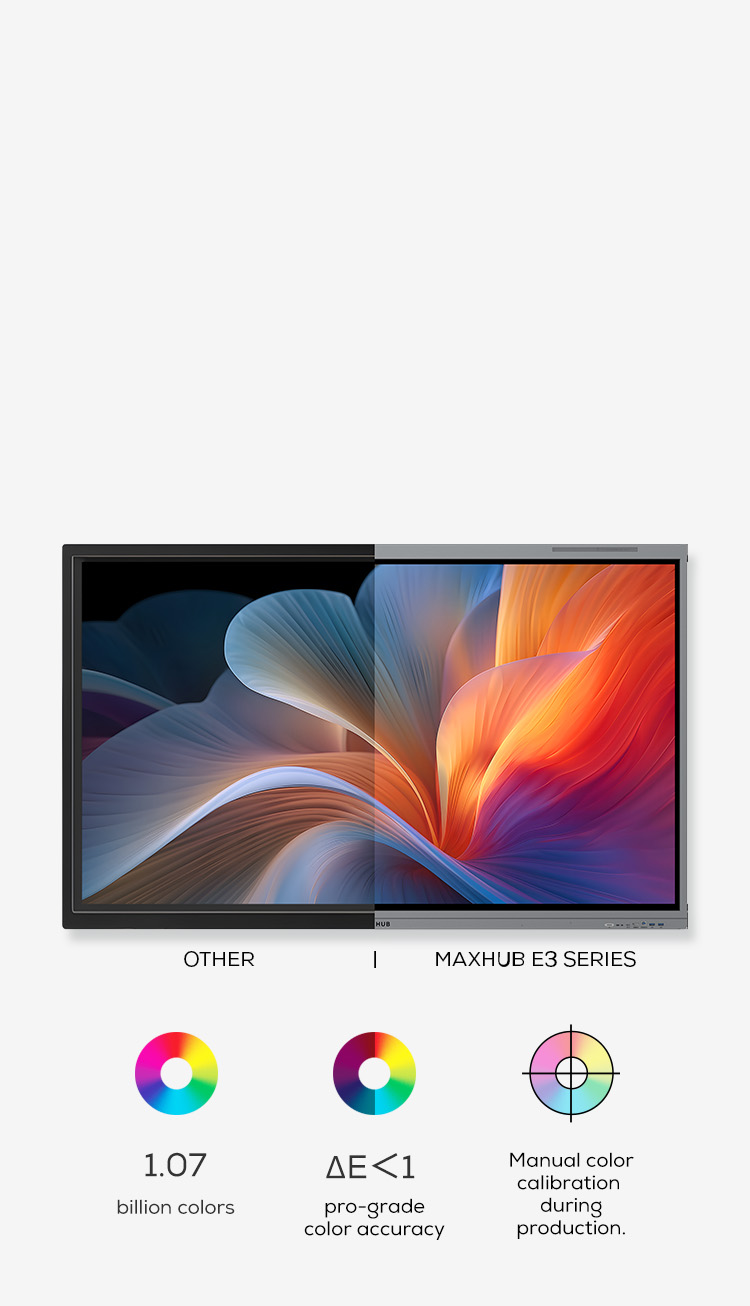

BRILLIANT HUES, HEALTHY EYES

Experience the difference between ordinary screens and truly exceptional displays. We redefine comfort and clarity with a 98% sRGB wide color gamut and 1.07 billion colors(10-bit). A Delta E of less than 1 and meticulous hardware calibration ensure stunning precision and minimize eye strain, transforming how you see and interact with digital content.

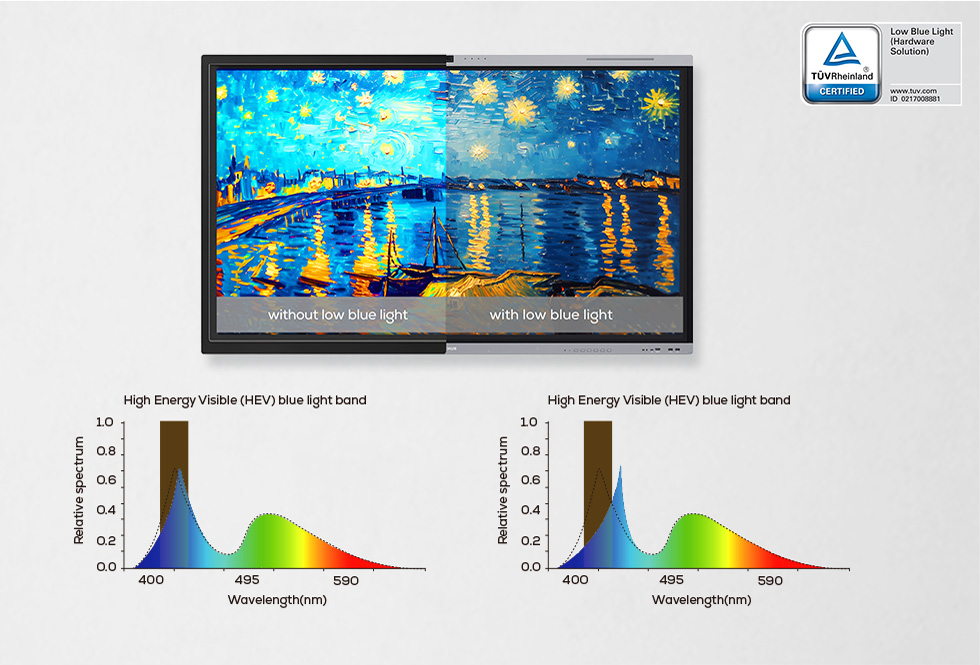

OUTSMART BLUE LIGHT

Engineered for eye comfort, this display takes a multi-faced approach to reducing eye strain. TÜV-certified for low blue light, it effectively filters harmful blue light (400-450nm). The ultra-low blue light irradiance ratio of 11.25% further minimizes eye strain

FLICKER-FREE, FUTURE-PROOF

Tired of flickering screens causing eye strain and headaches? Unlike PWM dimming, which uses rapid on/off cycles, DC dimming adjusts brightness directly, eliminating flicker and reducing eye strain. TÜV Flicker-Free certified for superior performance.

EVOLVE INTO IMMERSIVE SOUND

SUPERIOR SKYWAVE SOUND

Hear the difference with the MAXHUB Skywave Sound System. Enjoy clear, room-filling audio thanks to its powerful 2.2 channel setup and four speakers (2x12W + 2x25W). Plus, experience 4 times* the transmission distance

ENVOVLING TOUCH ABILITY

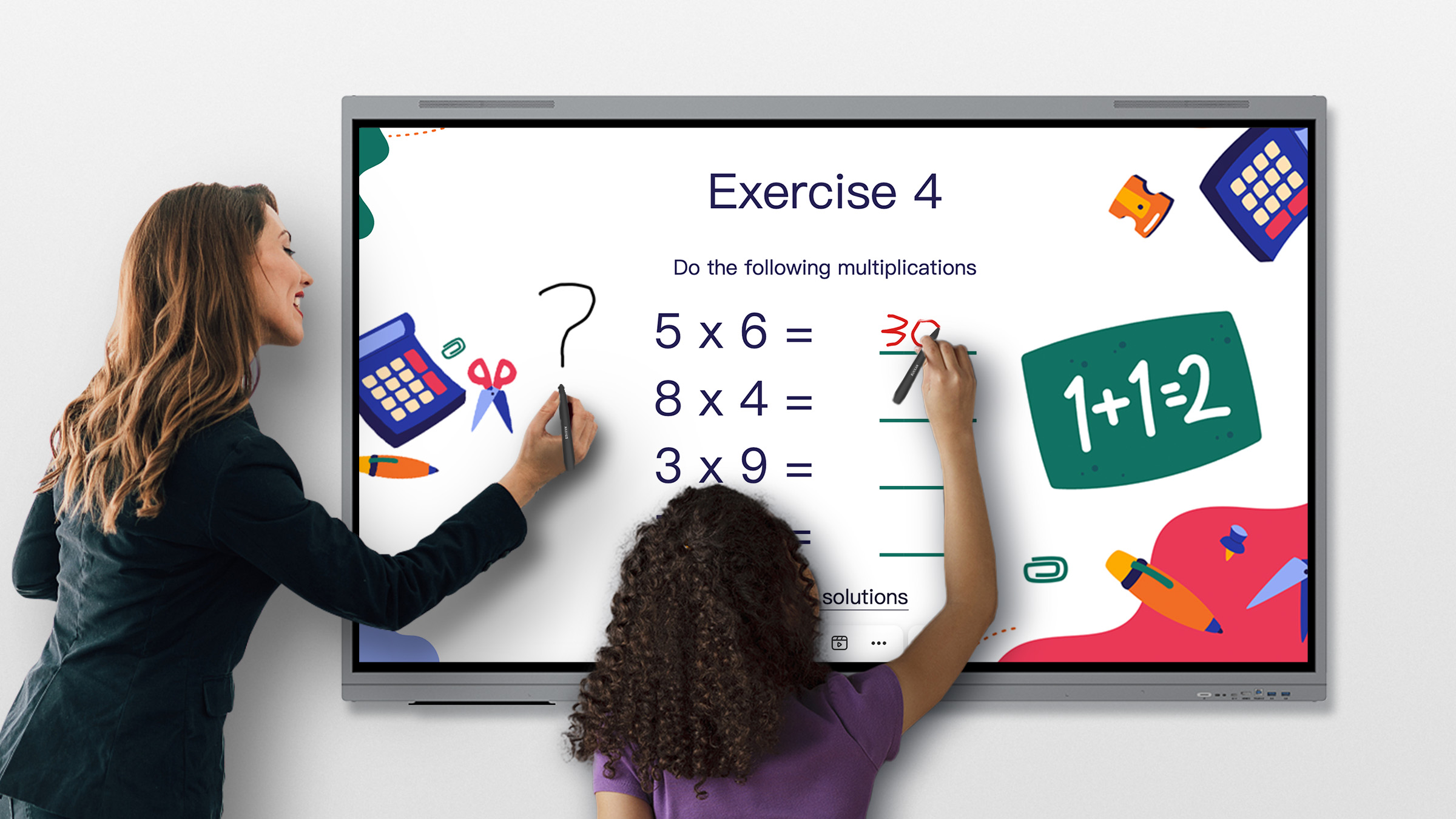

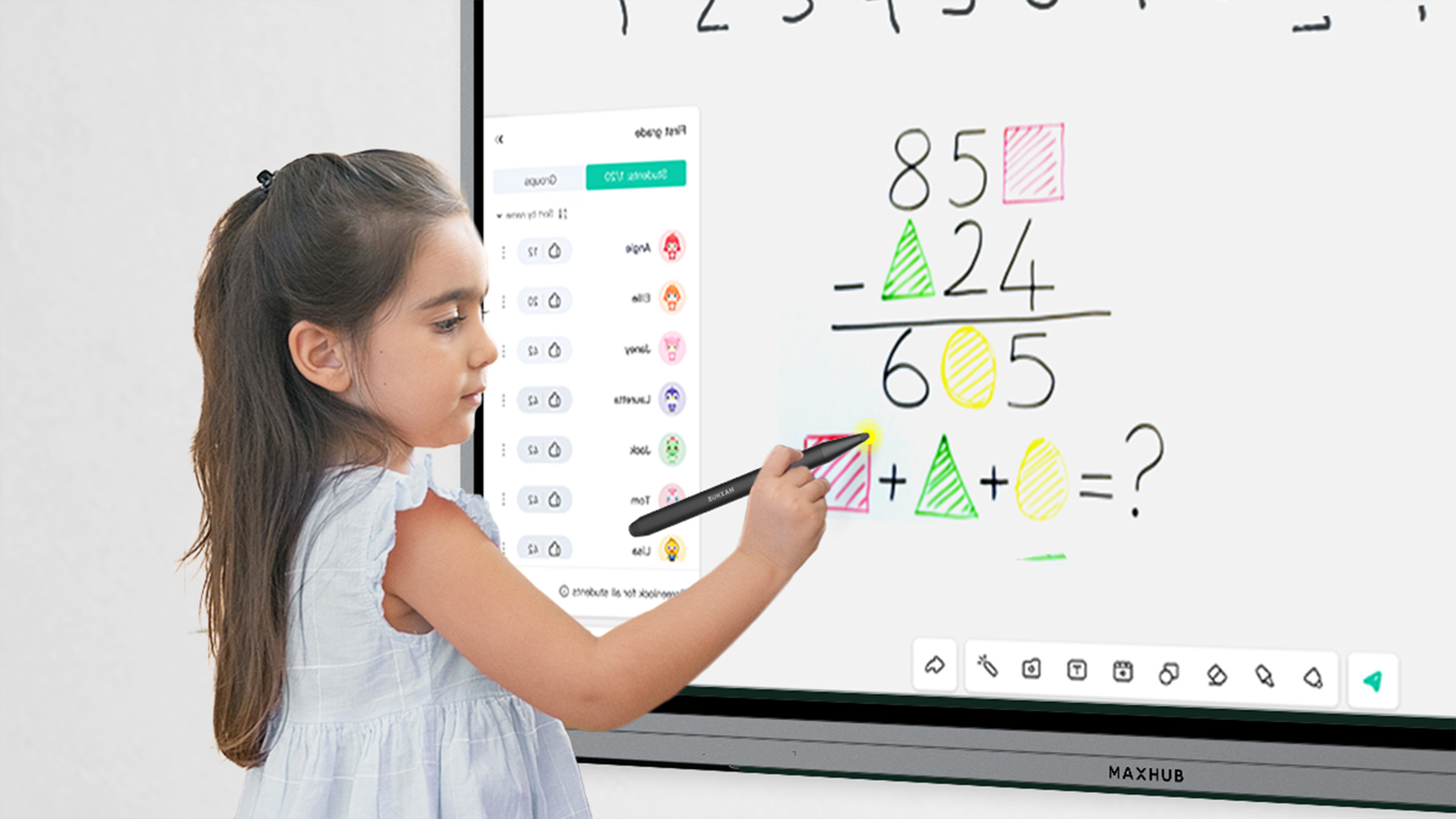

INSPIRE LEARNING THROUGH TOUCH

Create a truly engaging learning environment with our interactive touch display. With up to 40 simultaneous touch points, multiple students can engage with the screen at once, fostering collaboration and creativity

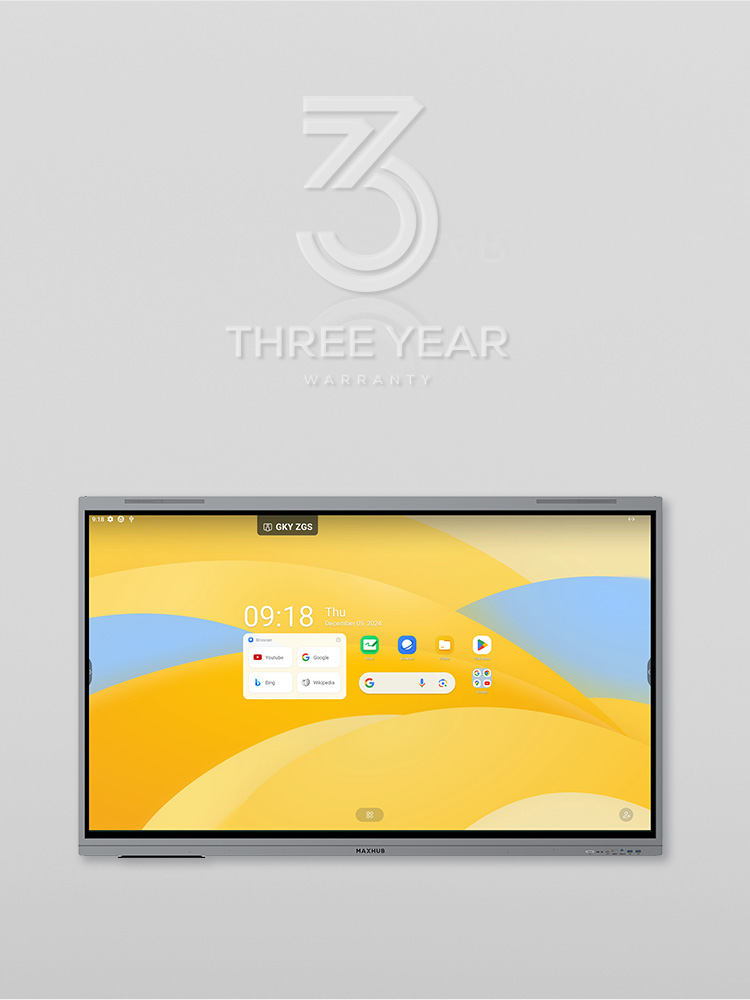

PEACE OF MIND, 3 YEAR GUARANTEED

Enjoy peace of mind knowing your technology is in good hands. MAXHUB's comprehensive support, including a 3-year advanced replacement warranty and local experts, ensures long-lasting performance and a seamless workflow.

Display

Touch System

• Diagonal Size (inch):75
• Aspect Ratio:16:9
• Resolution:3840(H)×2160(V)
• Panel Brightness:400 nits (typ.),450 nits (max.)
• Contrast Ratio:5,000:1 (typ.),50,000:1 (dynamic)
• Color Depth:1.07B (10bit)
• Color Gamut (typ.):98% sRGB
• Color Accuracy:ΔE≤1
• Surface Technology:Anti-glare, 25% haze
• Eyes Care:TÜV Flicker Free,TÜV Low Blue Light
• Refresh Rate:60Hz
• Response Time:6.5ms
• Backlight Unit:DLED

• Touch Technology: Infrared recognition
• Touch Point:40 points touch
• Accuracy:±1.5mm
• MAXHUB Think&Ink: Yes

Built-in System

Connectivity

• Operating System: Android 14.0
• Certification: Google EDLA certification
• RAM:8GB
• ROM:128GB
• CPU:A72×4+A53×4 octa-core, 2.2GHz
• GPU: Mali G52 MC3

• Input: HDMI IN × 3
             USB 2.0 × 1
             USB 3.0 × 4
             Touch × 2
             USB Type-C × 2
             DP IN × 1
             AUDIO IN × 1
             VGA IN × 1
             RS232 × 1
             RJ45 IN × 1
             TF Card Port × 1
• Output: HDMI OUT × 1
               AUDIO OUT × 1
               SPDIF × 1
               RJ45 OUT × 1
• OPS Slot: Module slot × 1
• Wi-Fi Module Slot: Module slot × 1
• Wi-Fi Module (SI07B):Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz
• Bluetooth:5.2


Audio

Power

• Audio System: SkyWave Sound System
• Sound Channel:2.2
• Speaker Power:2×8W+2×18W (output)
• 2×12W+2×25W (maximum)
• Sound Pressure Level:88 dB (1W, 1m)

• Power Supply:100-240V~ 50/60Hz 3.5A
• Power Consumption (standby):≤0.5W
• Power Consumption (typ.):170W
• Power Saving: Energy Star Certification

Optional Module

• USB Camera:UC W31
• Video Bar:UC S07
• OPS Module:OPS62A/OPS72A
• Sensor Box:WL10C
• Mobile Stand:ST33M, ST23G, EST09
