The Samsung OH85F is an expansive 85-inch outdoor digital signage display built for superior visibility in high-traffic, exterior locations.1 It delivers stunning 4K UHD resolution and an ultra-high brightness of 2,500 nits, complemented by anti-reflection glass to ensure content is clear even in direct sunlight.2 Designed for extreme durability, it boasts an IP56 weather resistance rating for protection against dust and water, along with a rugged IK10 vandal resistance rating.3 Featuring an integrated SSSP 4.0 (System-on-Chip) and self-cooling technology, the OH85F ensures reliable, filter-less 24/7 operation in temperatures ranging from 4$-30^\circ\text{C}$ to 5$50^\circ\text{C}$

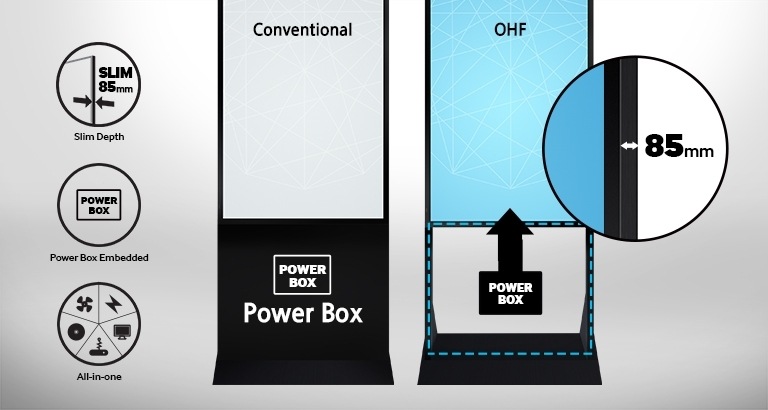

Outdoor signage with simplified installation and upkeep, plus an all-encompassing array of pre-assembled features
OHF Series is conveniently and easily installed, designed and operated with a thin, all-in-one solution, which comes in a package which includes ingress protection, anti-reflection technology, an embedded power box, vandalism protection and a highly efficient cooling system. In addition, the embedded power box helps to condense operational components to the point where an ultra slim depth of 85 mm can be attained, while the functionality of embedded network hub and Wi-Fi allow for simple connection and easy installation
Robust IK10* level of endurance against external impacts
Advanced display protection is provided through the 5 mm (0.19 in.) tempered Magic Glass featuring durability that is IK10-certified (European strength test), further referencing its robust level of strength that can endure external impacts. In addition, a gap between the Magic Glass and the LCD panel prevents LCD breakage when the protection glass is broken.
Possessing a self-cooling system with no need for filter or maintenance
Samsung's OHF Series comes complete with an advanced cooling system with heat exchanger, supported by advanced thermal control functionality. This enhances the overall efficiency in terms of both management and cost through its filter-less system. The system revolutionizes outdoor signage design, abandoning the thick enclosures to accommodate a full display package.
Captivate audiences with excellent visibility
• High Visibility OHF Series displays feature innovative Magic Glass, TUV Certified Image Quality and an Auto Brightness Sensor to optimise brightness in order to optimally convey messaging to virtually any viewer. These powerful displays also feature circular polarizing technology that eliminates display blindness caused by polarized sunglasses. OHF Series captivate viewers with superior messaging clarity delivered with high 2,500 nit brightness and 5,000:1 high contrast ratio in all inches above 24. • Reflection Prevention Greater content visibility is achieved under a combination of high brightness, lower reflection and high contrast ratio. The Magic Glass of the OHF Series that is in front of the displays’ LCD panels removes the protection glass reflection, making the displayed images richer and clearer under direct sunlight.
Operate reliably in virtually any environment
To deal with dust, moisture and other environmental variables that can damage your outdoor signage and impede operation, OHF Series ensure a high level of ingress defense with IP56 level protection that extends throughout the entire display. As heat is a major factor due to outdoor signage being exposed to sunlight, operation of OHF Series has been made possible in temperatures that range from -30 °C (-22 °F) to 50 °C (122 °F) through a self-cooling system, allowing for a level of durability that can sustain 24/7 operations while negating the need for additional air conditioning systems.
Offering robust options for content creation, management tools
Samsung’s MagicInfo Player S4 empowers users with a new graphic engine applied to their signage that boosts the overall display performance while ensuring seamless transition of content. It also operates as an advanced content management solution that can allow you to play media files, set and edit media playback schedules, and much more. MagicInfo Player S4 is robust enough to enable large organisations to manage multiple digital signage through an integrated single server and also remotely monitor and manage it from a centralized location.
VESA-compliant for simplified mounting
The OHF Series comes complete with additional brackets (optional), in order to accommodate Standard VESA usage. Due to being VESA-compliant, the OHF series gives you the power and flexibility to mount your display according to your needs and without having to purchase a specific brand or model of wall mount. (Only applicable to 46” and 55”)
Specifications
Display
Connectivity
Diagonal Size:85"
Panel Type:S-VA / D-LED Local Dim.
Resolution:3840 x 2160 (16:9)
Pixel Pitch (HxV, mm):0.488 x 0.488
Active Display Size (HxV, mm):1872(H) x 1053(V)
Display Color:8 bit - 16.7M
Color Gamut:72 %
H-Scanning Frequency:30 ~ 81kHZ
Maximum Pixel Frequency:594Mhz
V-Scanning Frequency:48 ~ 75Hz
Brightness:2500nit
Contrast Ratio (Dynamic):100,000:1
HDMI In:2
USB:1
RGB In:D-Sub
HDBaseT In:LAN
Audio Out:Stereo Mini Jack
RS232 In:Yes
RS232 Out:Yes
RJ45 In:Yes
RJ45 Out:Yes
3G Dongle:Yes (3G only)
Power
Dimension
Power Supply:AC 100 - 240 V (+/- 10 %), 50/60 Hz
Power Consumption (On Mode, W):Max:1600W, Typical:680W
Special:IP56 Certified for Simple Enclosure Outdoor, Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installalling, Portrait / Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, FHD 4-PBP, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping)
EMC:CE : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 (EN), FCC : Part 15, Subpart B Class A (GO)
Safety:CB : IEC60950-1/EN60950-1 (EN), UL : cUL60950-1 (GO)
FAQs:
1. Can the Samsung OH85F be seen in direct sunlight?
Yes. The Samsung 85" OHF series is specifically designed for high-ambient light environments. It features an ultra-high brightness of 2,500 nits and a high contrast ratio. Additionally, the panel uses circular polarizing technology, which allows the screen to be clearly visible even to viewers wearing polarized sunglasses—a common issue with standard outdoor screens.
2. Is the Samsung OH85F waterproof and dustproof?
Absolutely. The display is IP56-rated, meaning it is protected against pressurized water jets and harmful dust accumulation. The internal components are completely sealed, making it suitable for year-round outdoor installation in drive-thrus, transit stations, and outdoor shopping malls without the need for an additional protective enclosure.
3. How does the Samsung OH85F handle extreme heat and cold?
The OH85F features a specialized self-cooling system that allows it to operate in temperatures ranging from -30°C to 50°C (-22°F to 122°F). This advanced thermal management system eliminates the need for bulky air conditioning units or heaters, allowing for a slim, all-in-one design that maintains performance in harsh climates.
4. Is the glass on the 85-inch OHF series break-resistant?
Yes. To protect against vandalism and physical impact in public spaces, the OH85F is equipped with Magic Glass. This 5mm (0.19 in) tempered glass is IK10-certified for impact resistance, providing the highest level of durability against external force and accidental damage.
5. Does the Samsung OH85F require an external media player?
No. Like most Samsung professional displays, the OH85F features an integrated System-on-Chip (SoC) running the Tizen operating system. The built-in MagicINFO Player allows you to manage and schedule content remotely via the cloud or play files directly from internal storage, reducing the amount of hardware exposed to the elements.
6. What are the installation requirements for an 85-inch outdoor display?
The OH85F is a heavy-duty unit, weighing approximately 156 kg (343.9 lbs). It requires a reinforced structural mount or a specialized outdoor pedestal. Because it is an all-in-one unit, it is significantly slimmer than traditional outdoor displays that require separate enclosures, allowing for more aesthetic installations.
