LG CreateBoard 98TR3DK 98-inch 4K UHD Interactive Flat Panel Display

A New Level of Classroom with LG CreateBoard

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality. Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

C-type Connection

USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

PANEL

MECHANICAL SPECIFICATION

• Screen Size:98"
• Panel Technology:IPS
• Aspect Ratio:16:9
• Back Light Type:Direct
• Brightness:440 Nits (Max.)
• Dynamic CR:3000:1
• Color Gamut:NTSC 72 %
• Viewing Angle (H x V):178 °(H/V)
• Native Resolution:3840x2160 (UHD)
• Refresh Rate:60 Hz
• Color Depth (Number of Colors):1.07 B (10 bit)
• Response Time:8 ms
• Surface Treatment (Haze):25 %
• Operation Hours (Hours/Day):16/7
• Portait / Landscape:No / Yes

• Bezel Color:Black
• Bezel Width:T/R/L/B : 30/27/27/45 mm
• Weight (Head):103.6 Kg
• Packed Weight:133.2 Kg
• Carton Dimensions (W x H x D, mm):2406 × 1474 × 280 mm
• Handle:Yes

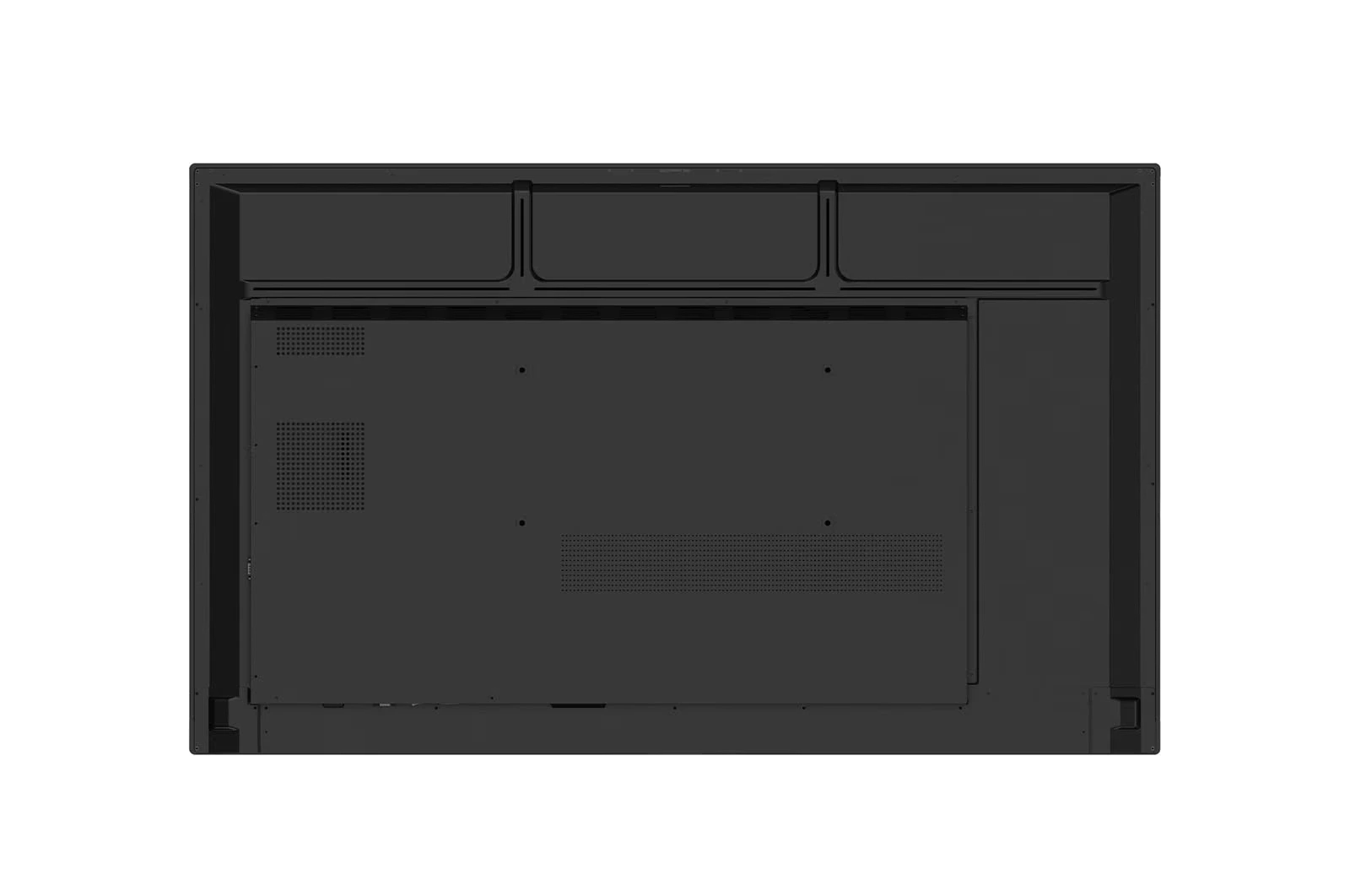

• VESA™ Standard Mount Interface (mm):800×600 mm
• Monitor Dimension (W x H x D, mm):2244 × 1323 × 91 mm


ENVIRONMENT CONDITIONS

POWER

• Operation Temperature:0 ~ 40 °C
• Operation Humidity:10 ~ 90 % RH

• Power Supply:100-240 V~ 50/60 Hz 5.5 A
• Power Type:Built-In Power

POWER CONSUMPTION

CERTIFICATION

• Max:610 W
• Typ:395 W
• DPM:≤0.5 W
• Others-BTU (British Thermal Unit):1348 BTU/Hr(Typ.), 2081 BTU/Hr(Max)
  Smart Energy Saving (70%):≤0.5 W


• Safety:CB / NRTL
• EMC:FCC Class "A" / CE / KC
• ERP / Energy Star:Yes / Yes


SOUND

SOFTWARE COMPATIBILITY

• Speaker (Built-in):Yes (15 W x 2)

• Connected Care:Yes

OPS COMPATIBILITY

LANGUAGE

• OPS Type compatible:Yes (Slot)
• OPS Power Built-in:Yes

• OSD:English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai


ACCESSORY

DEDICATED FEATURE - CREATE BOARD

• Basic:Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2 ea), Wifi module
• Optional:Wall Mount(WM-L000S), Floor Stand(ST-000F)

• CPU:Quad core A55
• GPU:Mali G52MP2
• Memory(RAM):8GB
• Storage:64GB
• Wi-Fi:802.11a/b/g/n/ac/ax (WiFi 6)
• LAN:Gigabit LAN
• Bluetooth:Bluetooth 5.0
• OS ver. (Android):Android 13
