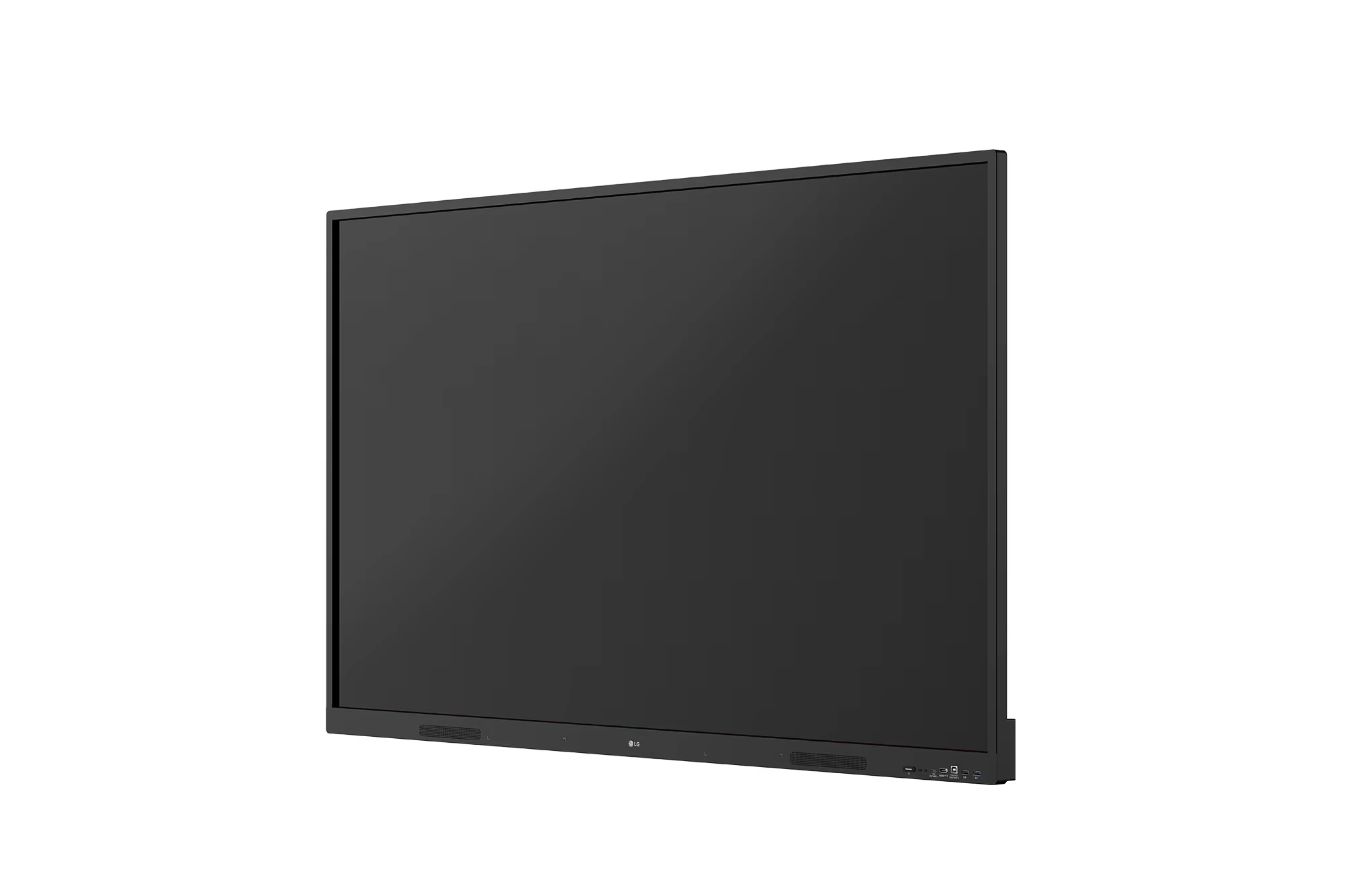

LG CreateBoard 75TR3ER-I 75-inch 4K Interactive Flat Panel Display

Inspire, Communicate, and Create Change with Seamless Technology,
LG CreateBoard

Creative Whiteboard Solution

LG CreateBoard offers a lifelike touch experience, allowing users to interact with content directly on the board. You can write, draw, zoom, and rotate using just your fingers, making it an effective tool for creative projects or presentations. Additionally, LG CreateBoard enables screen and content sharing, making it an excellent tool for seamless collaboration even with remote team members.

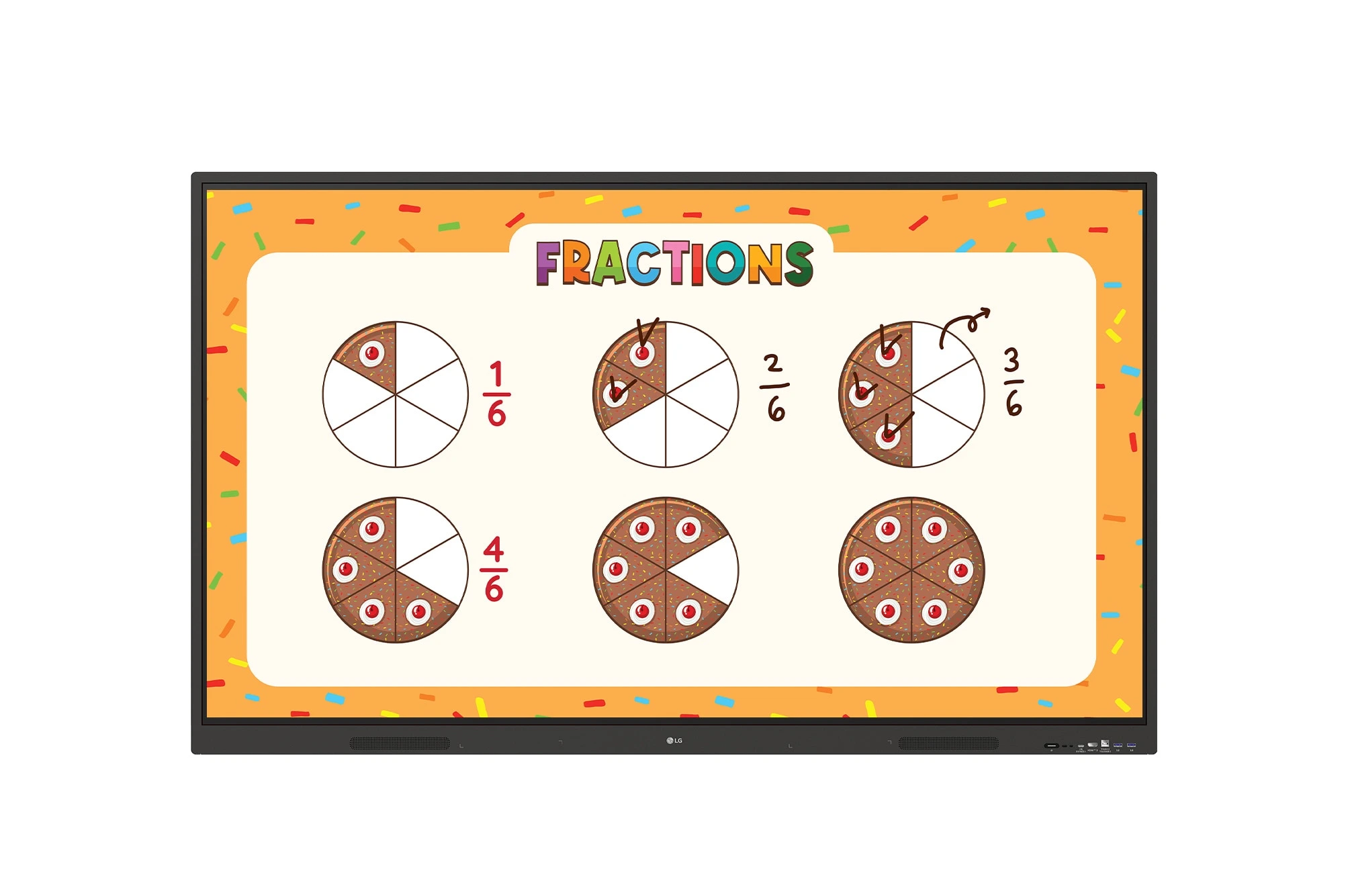

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and tools such as a ruler, table, and sticky note, fostering active student participation and facilitating intuitive lessons.

Easy to Save / Import / Export

LG CreateBoard incorporates straightforward import and export features. Resources can be saved and directly imported to and from Google Drive or OneDrive. After meetings, you can directly send emails to share materials, or scan a QR code to transfer them to your personal device.

LG CreateBoard Lab

LG’s proprietary whiteboarding software

Web Browser

When you need a reference during a discussion, you can access various online information in real time with the simple click of a web browser. The necessary information found on the internet can be easily dragged and dropped* into the material you’re creating, enhancing the productivity of your meetings.

Multi-OS Support

LG CreateBoard Lab** offers multi-OS support*, allowing users to utilize it not only with LG CreateBoard but also with other devices. This enables users to maintain a seamless experience on tablets, laptops, and various other devices, even outside the classroom.
*Certain features may not be supported depending on the operating system.
**LG CreateBoard Lab is compatible with Android, Windows, Chrome, and the Web.

LG CreateBoard Share

LG CreateBoard Share* offers a wireless screen sharing feature, providing users with a flexible discussion environment. Users can share their screen from their own PC, tablet, or smartphone, simplifying the process of sharing and collaborating on team projects or presentation materials.

Wireless ScreenShare Feature for Seamless Meeting Environment

LG CreateBoard Share establishes a seamless and stable meeting room without the need for extra cables or connections. Presenters can now share their screens without the need to inconveniently move around and unplug and plug cables each time the presenter changes. With the capability to share up to 4 screens in real-time, it’s possible to display multiple people’s materials simultaneously when needed, thereby enhancing the efficiency of collaboration.

PANEL

CONNECTIVITY

• Screen Size:75
• Back Light Type:Direct
• Aspect Ratio:16:9
• Native Resolution:3840 x 2160 (UHD)
• Refresh Rate:60 Hz
• Brightness:440 cd/m² (nits)
• Contrast Ratio:5500:1
• Dynamic CR:10000:1
• Color Gamut:NTSC 72%
• Viewing Angle (H x V):178 x 178
• Color Depth (Number of Colors):10 bit
• Surface Treatment (Haze):25%
• Life time:50,000 Hrs
• Operation Hours (Hours/Day):16/7
• Portait / Landscape:No / Yes

• HDMI In:Yes (3), HDMI2.0
• Audio In:Yes (1)
• RS232C In:Yes (1)
• RJ45(LAN) In:Yes (1)
• USB In:USB3.0 Type-A (3,rear (1), front(2)),USB2.0 Type-A (1, rear (1, SW update)), USB Type-C (1, front (1, USB, DP-Alt, PD 65W w/o OPS))
• HDMI Out:Yes
• Audio Out:Yes (1), Optical O(1, SPDIF)
• Touch USB:Yes (2)

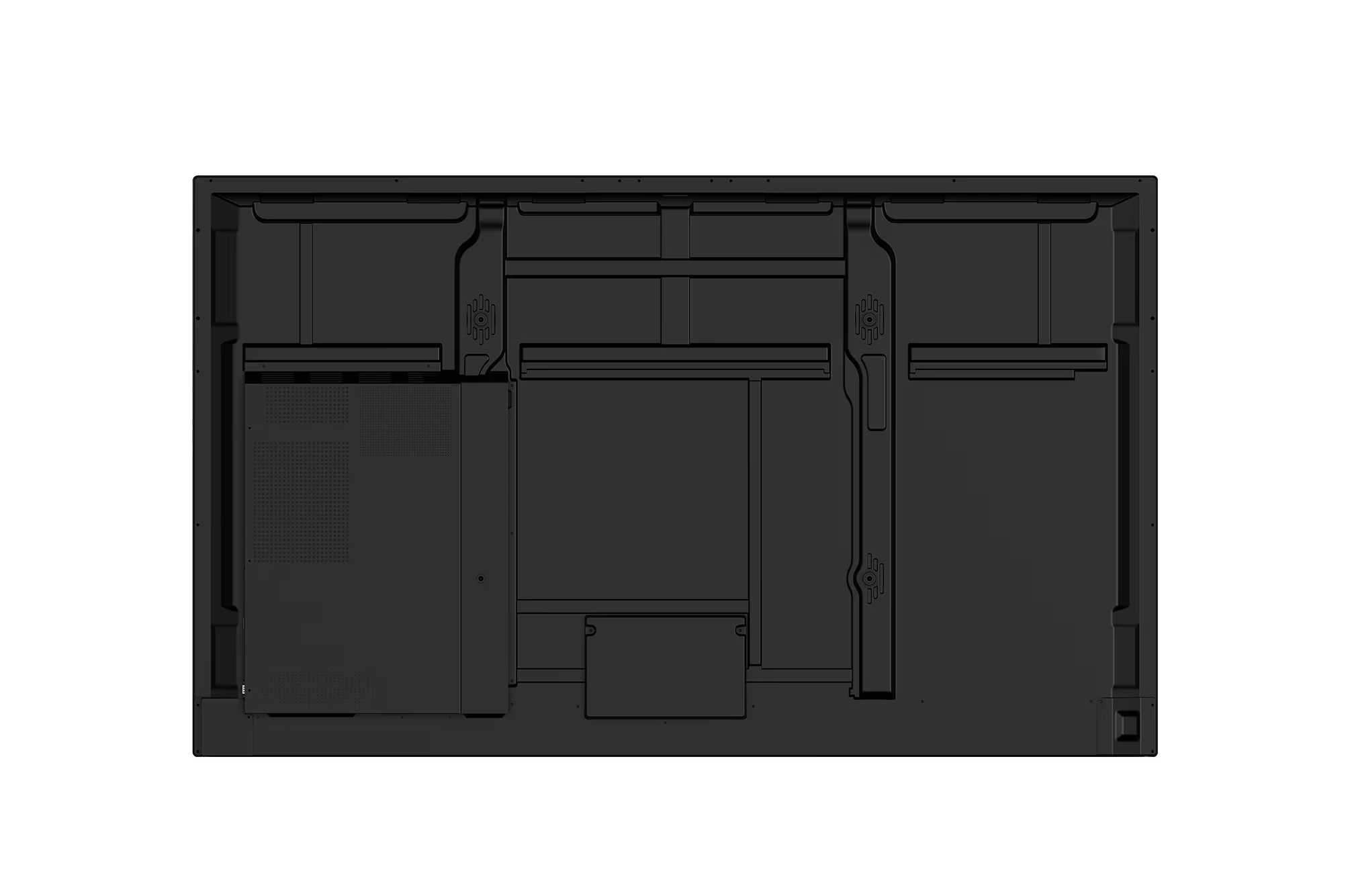

MECHANICAL

PROTECTION GLASS

• Bezel Color:Black
• Bezel Width:T/R/L/B (mm)：16.6/16.6/16.6/45
• Weight (Head):39.02 kg (w/o wall mount)
• Monitor Dimension (W x H x D, mm):1712 x 1022 x 98
• Carton Dimensions (W x H x D, mm):1863 x 1148 x 225
• Handle:Yes (2)
• VESA™ Standard Mount Interface (mm):800 x 600

• Thickness:3 mm
• Degree of Protection:Safety Glass
• Tempered / Chemical strengthening:Tempered strengthening
• Anti-Reflective:Yes
• Shatter-Proof:Yes

FEATURE - HARDWARE

ENVIRONMENT CONDITIONS

• Internal Memory (eMMC):128 GB
• Wi-Fi/BT (Built-in):Yes (Built-in)
• Auto Brightness Sensor:Yes
• Power Indicator:Yes
• Local Key Operation:Yes (1 key)

• Operation Temperature:0℃ to 40℃
• Operation Humidity:10% to 90%

POWER

POWER CONSUMPTION

• Power Supply:AC 100-240V~, 50/60Hz
• Power Type:Built-In Power

• Typ.:179.7 W
• Max.:323.1 W
• Smart Energy Saving (70%):Yes
• DPM:＜0.5 W
• Power off:＜0.5 W

SOUND

SOFTWARE COMPATIBILITY

• Speaker (Built-in):Yes (Speaker : 20 W x 2)

• Connected Care:Yes

CERTIFICATION

OPS COMPATIBILITY

• Safety:CB / NRTL
• EMC:FCC Class "A" / CE / KC
• ERP / Energy Star:Yes / Yes

• OPS Type compatible:Yes
• OPS Power Built-in:Yes

LANGUAGE

ACCESSORY

• OSD:English, Simplified Chinese, Czech, Denmark, Arabic (Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands (Dutch), Norwegian, Polski, Portugues (Europe), Portugues (Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese, Estonian, Lithunian

• Basic:Power Cord 1.8M*1, HDMI Cable 3M*1, USB Cable 5M*1, Writing Pen*2pcs, Remote Controller (include battery 2ea)
• Optional:Wall Mount (WM-L000S), Floor Stand (ST-000F, ST860F)

SPECIAL FEATURE

DEDICATED FEATURE - TOUCH

• Conformal Coating (Power Board):Yes
• Power Protection:Yes

• Available Object Size for Touch:Ø3 mm ↑
• Interface:USB2.0
• Protection Glass Thickness:Anti-Glare Toughened Glass with 9H Grade
• Operating System Support:Windows10 / Windows8 / Windows7 / Android /Linux / macOS / Chrome
• Multi Touch Point:Max 50 points

DEDICATED FEATURE - CREATE BOARD

• CPU:Octa core
• GPU:Mali-G52 MC3
• Memory(RAM):8 GB
• Storage:128 GB
• Wi-Fi:802.11 a/b/g/n/ac/ax (WiFi 6)
• LAN:Gigabit LAN
• Bluetooth:Bluetooth 5.4
• OS ver. (Android):Android16 (EDLA)
