Samsung KM24C-3

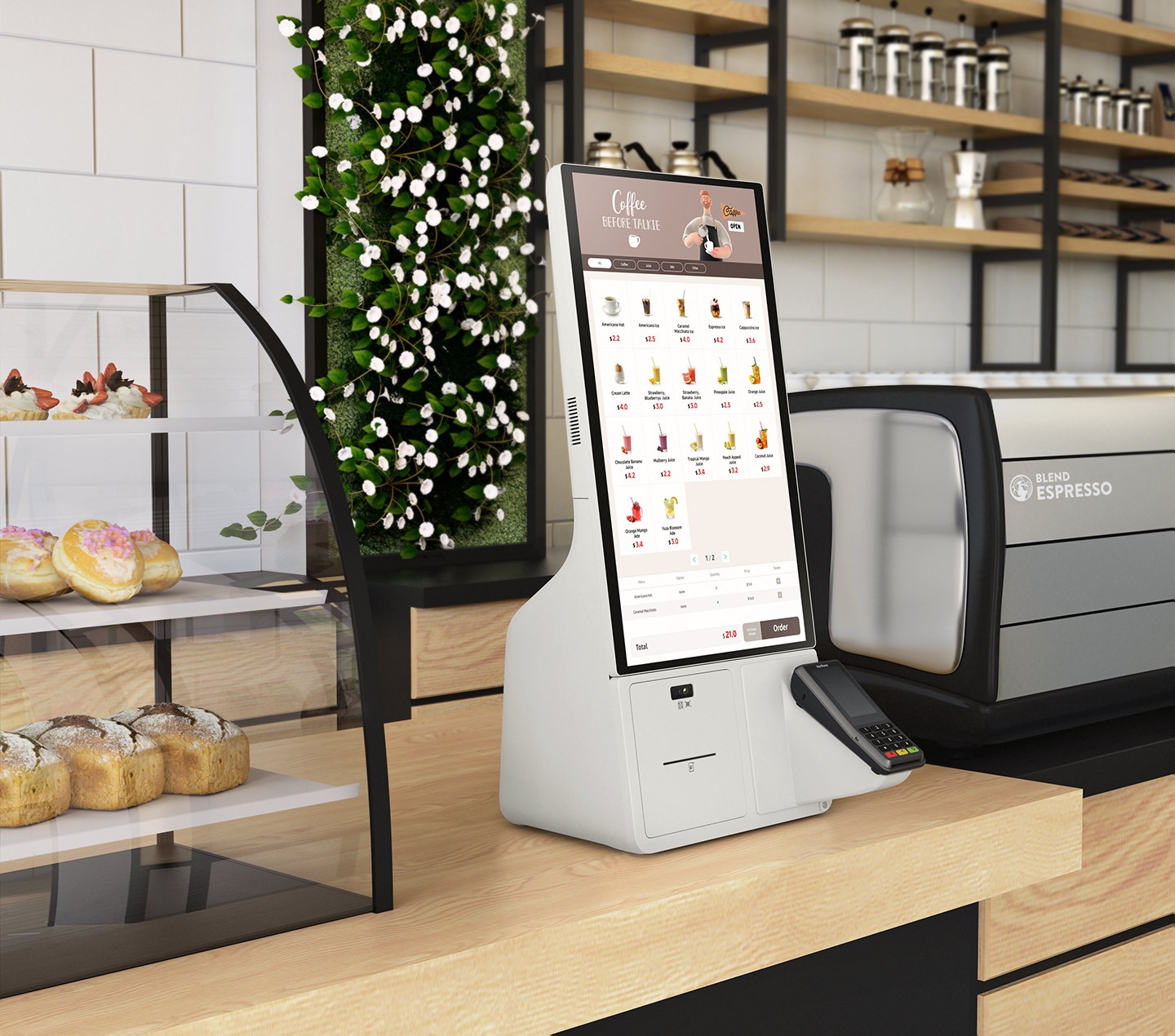

Self-service out of the box with Windows OS

Introducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 IoT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.

Modular functionality to support any payment type

Boost every customer experience with the intuitive all-in-one payment and ordering system with no additional peripherals needed. Adopting a modular design, Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.

All-in-one solution with upgraded compatibility

Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 IoT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business use cases.

Robust yet stable performance

Powered by 11th Gen Intel® Core™ Processor, Samsung Kiosk built on Windows OS features high performance computing power for flexible, stable, and enhanced capabilities that deliver amazing and robust experiences to users in any business environment.

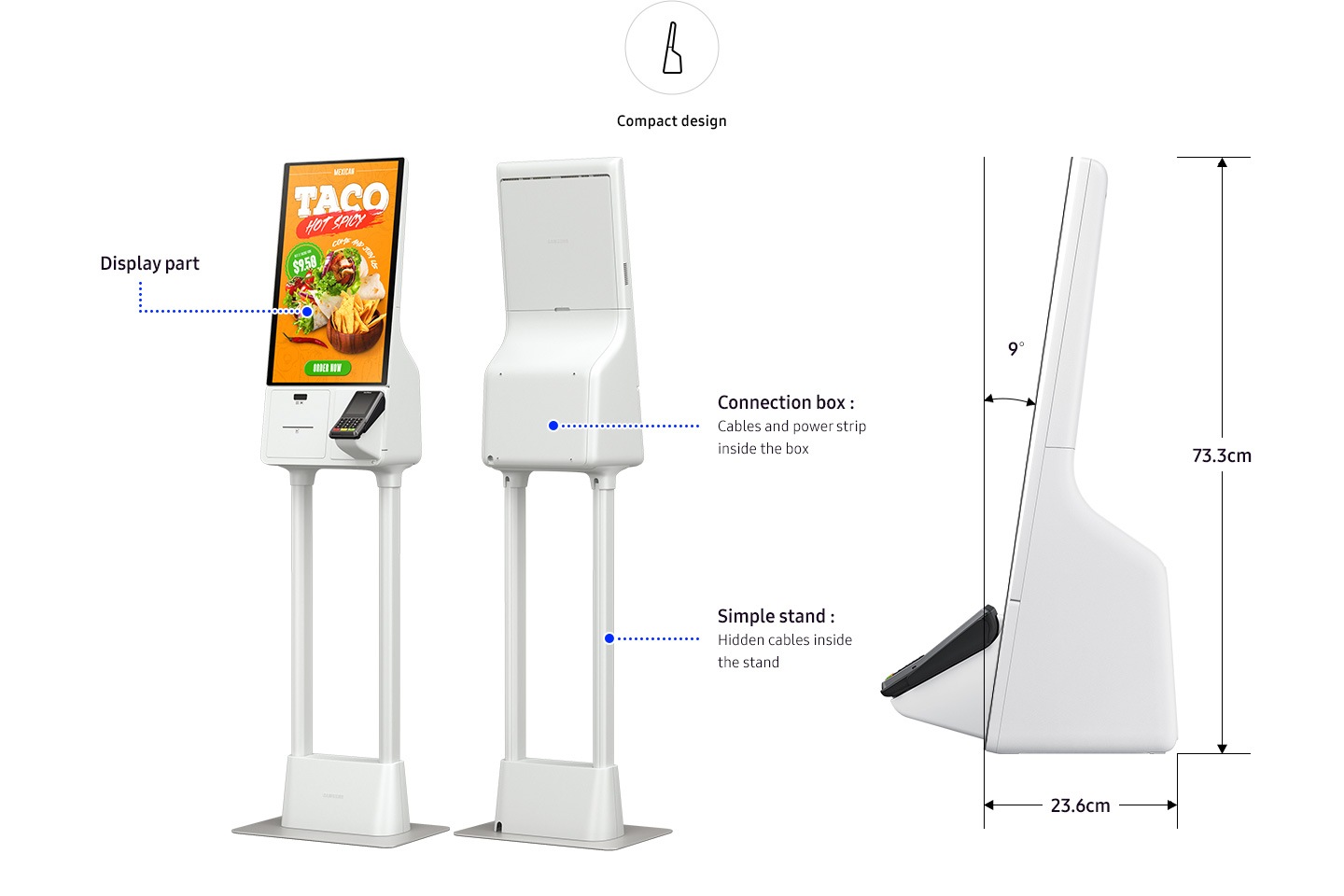

Compact and modern design

Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.

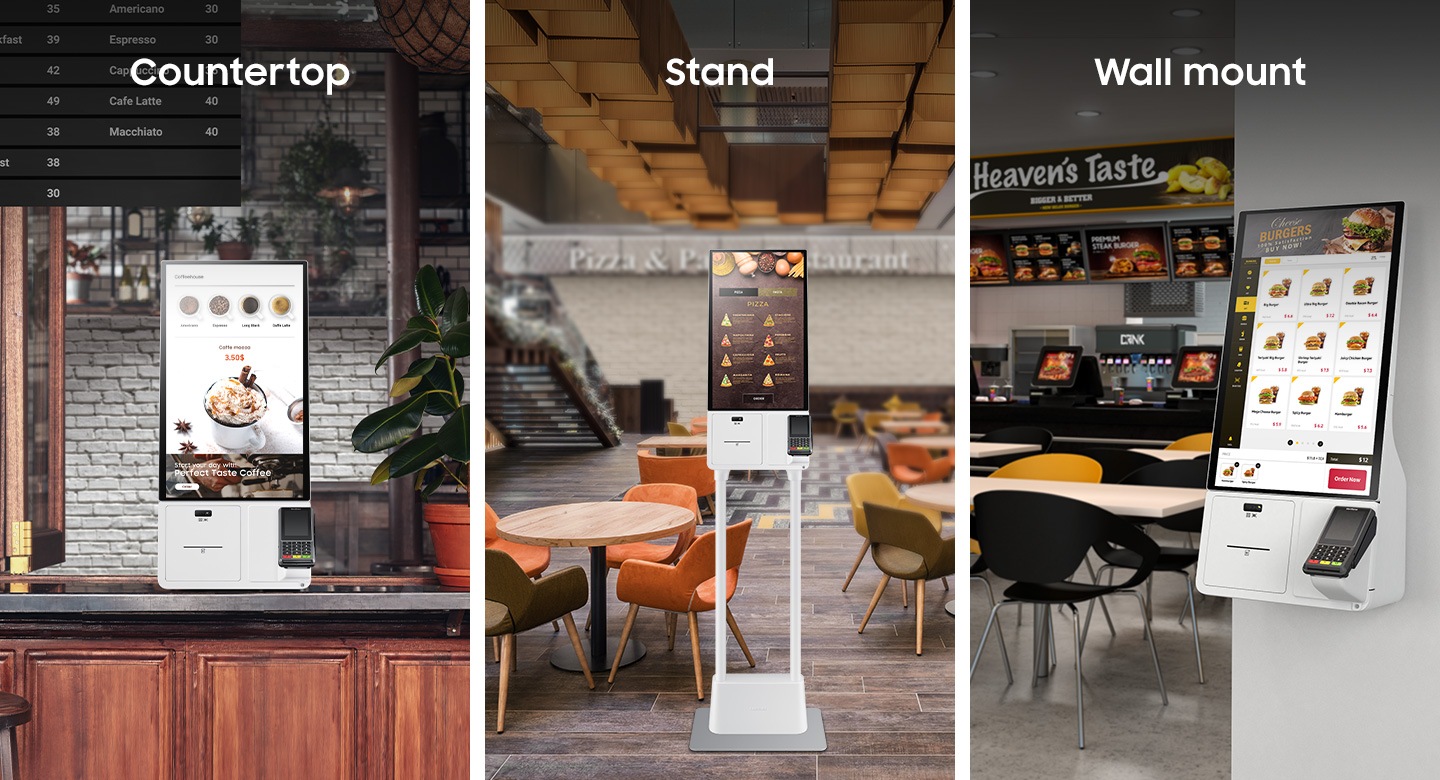

Versatile solution for any scenario

For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.

Keep the screen clean

Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.

* To perform its antibacterial function, this product has been treated with the biocidal substance Zinc Pyrithione.** Antibacterial property does not protect users against bacteria and provides no protection against viruses including Covid-19.*** Antimicrobial Coating is on surface of screen only and the effect may vary depending on kind of bacteria or conditions of use.**** Antibacterial certification: UL2282 which is granted when the antibacterial effectiveness is more than 99%.(Test method(JIS Z 2801): after inoculation of 0.4cc of liquid with bacteria(Escherichia coli and Staphylococcus aureus) on specimen(5cm x 5cm), a sterilized film(4cm x 4cm) is adhered and left in a thermo-hygrostat with a relative humidity of 90% or more at 35°C for 24 hours, and then the efficiency of killing of the bacteria is measured / Test agency: FITI Test Research Institute)***** For further detai

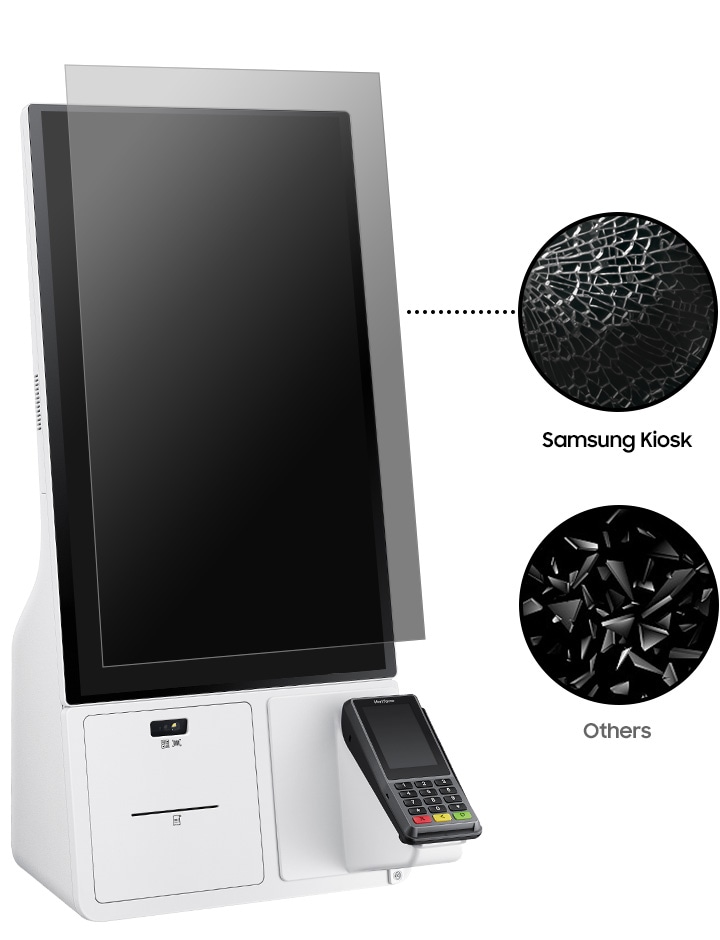

Minimize accidents and risks

Shatterproof protection

Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.

Display

Connectivity

• Diagonal Size:60cm (24")
• Panel Type:ADS
• Resolution:1,920 x 1,080
• Pixel Pitch (HxV):0.2745 x 0.2745 mm
• Brightness (Typ):250cd(Typ, w/o glass)
• Contrast Ratio:1000:1(without glass)
• Viewing Angle (H/V):178/178
• Response Time:14ms
• Colour Gamut:72%
• Glass Haze:25 (w/o glass)
• H-Scanning Frequency:56~84.5KHz
• Maximum Pixel Frequency:148.5MHz
• V-Scanning Frequency:48~75Hz
• Contrast Ratio (Dynamic):Mega
• Operation Time Support:16/7

• USB:1

Power

Dimension

• Power Consumption (On Mode):88 W
• Power Consumption (Sleep Mode):0.5 W

• Set Dimension (WxHxD):547.9 x 334.4 x 48.8 mm
• Package Dimension (WxHxD):620 x 419 x 122 mm

Product Weight

Operation Conditions

• Set Weight:4.3 kg
• Package Weight:5.7 kg

• Temperature:0℃~40℃
• Humidity:10 ~ 80%, non-condensing

Mechanical Specification

Optional Feature

• Bezel Width:UD: 17.9 / LR: 9.4
• Frame Material:Non-Glossy

• Touch:Yes
• Stand:Yes

SoC

Touch

• OS Version:Windows 10 IoT Enterprise
• Flash Memory Size:256GB

• Touch Technology:Capative
